Assembly Steps

Legs Module

This section shows the left leg assembly. The right leg is assembled the same way as a mirrored build, using the corresponding 500 mirrored part IDs. The fastener tables and steps here cover the left leg only.

Mechanical parts list
Part NumberQtyNotes
ASV1_600_01B1SLM 316L, As Printed
ASV1_600_03C1MJF PA 12, Dyeing-Dyed Black
ASV1_600_04C1MJF PA 12, Dyeing-Dyed Black
ASV1_600_05A1Aluminum 7075, Bead Blasting + Anodizing (Brass)
ASV1_600_06A1Aluminum 7075, Bead Blasting + Anodizing (Brass)
ASV1_600_08A1Aluminum 7075, Bead Blasting + Anodizing (Brass)
ASV1_600_09A1Aluminum 7075, Bead Blasting + Anodizing (Brass)
ASV1_600_10C1MJF PA 12, Dyeing-Dyed Black
ASV1_600_12A1Aluminum 7075, Bead Blasting + Anodizing (Brass)
ASV1_600_13C1MJF PA 12, Dyeing-Dyed Black
ASV1_600_14C1MJF PA 12, Dyeing-Dyed Black
ASV1_600_17B1SLM 316L, As Printed
ASV1_600_18B1SLM 316L, As Printed
ASV1_600_23A_SS1Stainless Steel 316, As Machined
ASV1_600_24A_SS1Stainless Steel 316, As Machined
ASV1_600_25A1Aluminum 7075, Bead Blasting + Anodizing (Brass)
ASV1_600_26B1SLM 316L, As Printed
ASV1_600_36A1Aluminum 7075, Bead Blasting + Anodizing (Brass)
ASV1_600_37C1MJF PA 12, Dyeing-Dyed Black
ASV1_600_38C1MJF PA 12, Dyeing-Dyed Black
ASV1_600_39C1MJF PA 12, Dyeing-Dyed Black
ASV1_600_40C1MJF PA 12, Dyeing-Dyed Black
ASV1_600_11X1Flanged Ball Bearing, 4390N159, McMaster
ASV1_600_19X1Ball Joint Rod End (Right Hand), 59935K42, McMaster
ASV1_600_20X1Ball Joint Rod End (Right Hand), 59935K42, McMaster
ASV1_600_21X1Ball Joint Rod End (Right Hand), 59935K42, McMaster
ASV1_600_22X1Ball Joint Rod End (Right Hand), 59935K42, McMaster
ASV1_600_27X112mm Bore 1-Side, 2-Post Pillow Block, 1602-0032-0012, GoBilda
ASV1_600_28X112mm Bore 1-Side, 2-Post Pillow Block, 1602-0032-0012, GoBilda
ASV1_600_29X112mm Bore 1-Side, 2-Post Pillow Block, 1602-0032-0012, GoBilda
ASV1_600_30X112mm Bore 1-Side, 2-Post Pillow Block, 1602-0032-0012, GoBilda
ASV1_600_31X16mm D-Shaft Stainless Steel, 2101-0006-0060, GoBilda
ASV1_600_32X1Steel Set-Screw Collar 6mm, 2920-0001-0006, GoBilda
ASV1_600_33X1Steel Set-Screw Collar 6mm, 2920-0001-0006, GoBilda
ASV1_600_34X16mm Bore 1-Side, 2-Post Pillow Block, 1602-0032-0006, GoBilda
ASV1_600_35X16mm Bore 1-Side, 2-Post Pillow Block, 1602-0032-0006, GoBilda
ASV1_600_41X1Self-Closing Spring Hinge, 1481A14, McMaster
Electronics list
Part NumberQtyNotes
ASV1_600_02X1ENCOS Motor, EC-A3814-H14-107, used for left_hip_yaw_joint (Motor ID 3)
ASV1_600_07X1ENCOS Motor, EC-A4315-P2-36, used for left_knee_joint (Motor ID 4)
ASV1_600_15X1ENCOS Motor, EC-A4310-P2-36, used for left_ankle_pitch_joint (Motor ID 5)
ASV1_600_16X1ENCOS Motor, EC-A4310-P2-36, used for left_ankle_roll_joint (Motor ID 6)
Fasteners list
ItemQty
M3 x 10 flat head screws18
M3 x 12 flat head screws30
M3 x 4 socket head screws2
M3 x 6 socket head screws2
M3 x 18 socket head screws6
M3 x 20 socket head screws2
M4 x 12 flat head screws12
M4 x 10 socket head screws8
M4 x 12 socket head screws3
M4 x 14 socket head screws29
M4 x 16 socket head screws9
M4 x 25 socket head screws11
M5 x 25 socket head screws5
M3 inserts26
M4 inserts46
M4 nylon locknuts2
M3 washers2
M3 thread tap1
Loctite 222 thread lockerAs needed

Assembly Steps

Leg assembly step 1

Step 1-2: Route the cable from the Hip Yaw motor shaft through the hip body, then pull it out from the bottom opening for later connection.

Leg assembly step 2

Step 3-2: Connect the pre-cut XT30(2+2) cable from the Hip Yaw motor to the Knee motor port.

Leg assembly step 3 Leg assembly step 4 Leg assembly step 5 Leg assembly step 6

Step 11-2: Connect the XT30(2+2) cable from the Knee motor to the Ankle motors in sequence. Plug in the ankle cables first, then install the connected ankle motors together.

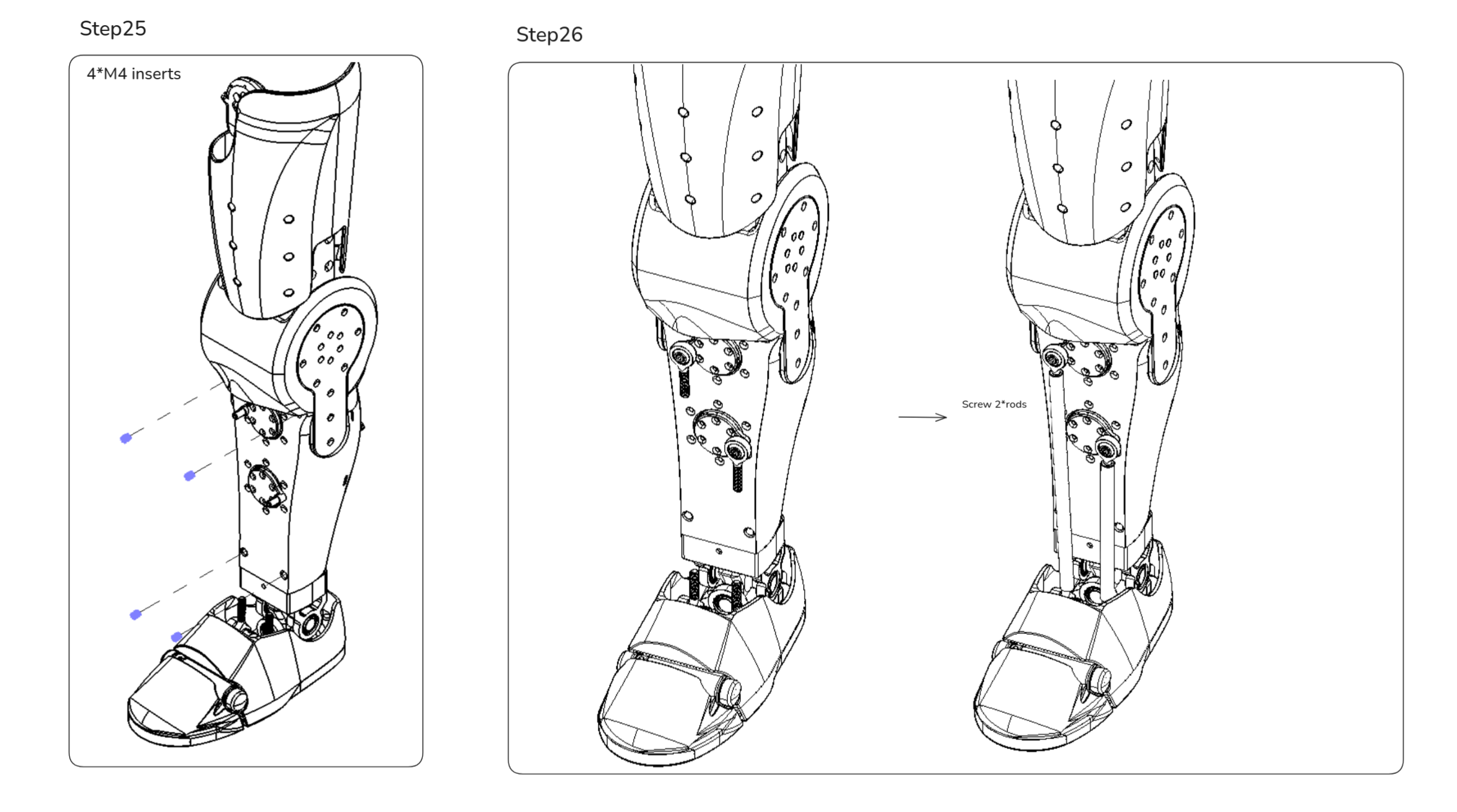

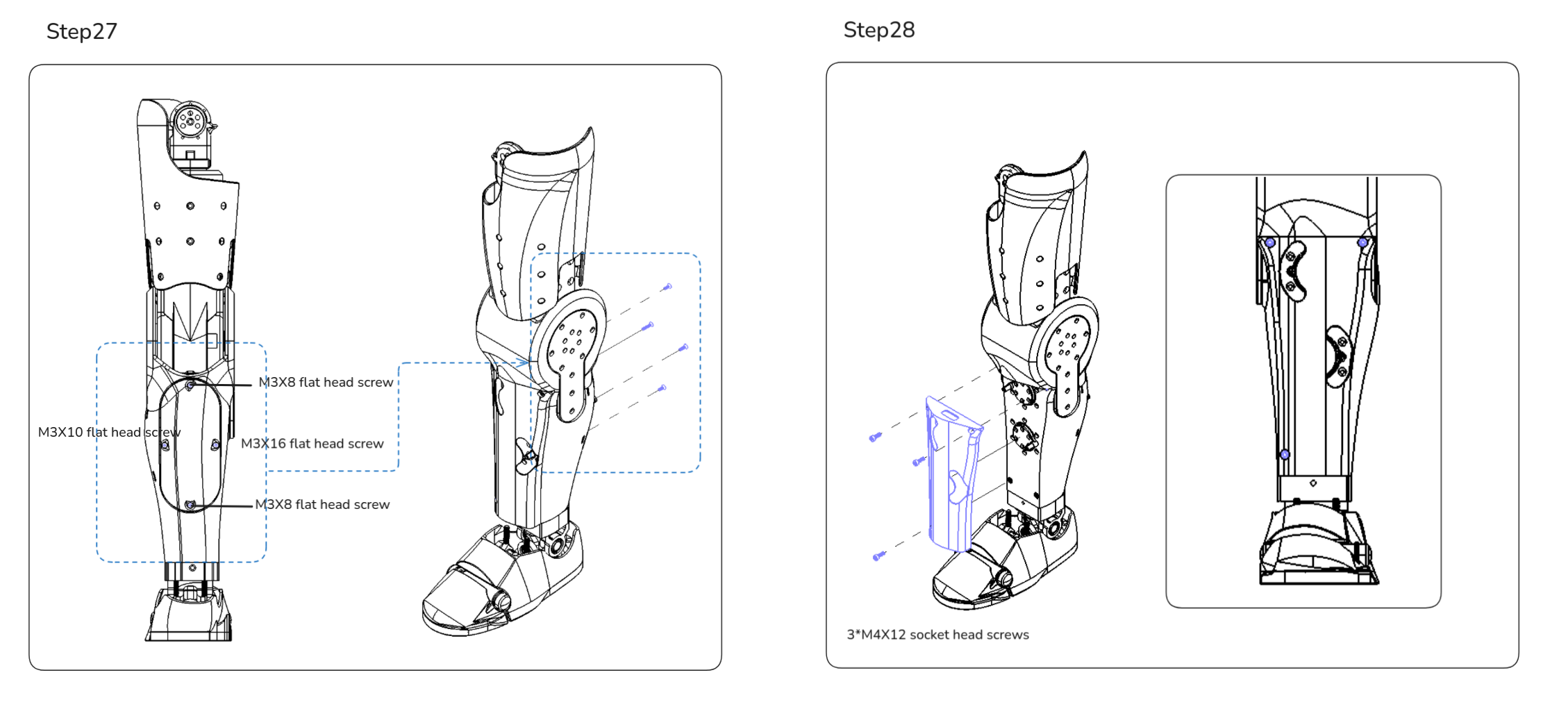

Leg assembly step 7 Leg assembly step 8 Leg assembly step 9 Leg assembly step 10 Leg assembly step 11 Leg assembly step 12 Leg assembly step 13 Leg assembly step 14 Leg assembly step 15
