Legs ModuleSub-assembly A
Step 7: Attach Motor Hub
Route the motor wire through part 500_01B and fasten the part to motor ID 3.
Parts needed
| Part | Count |
|---|---|
| 1 | |
| M4x25 Socket bolts | 5 |
Instructions

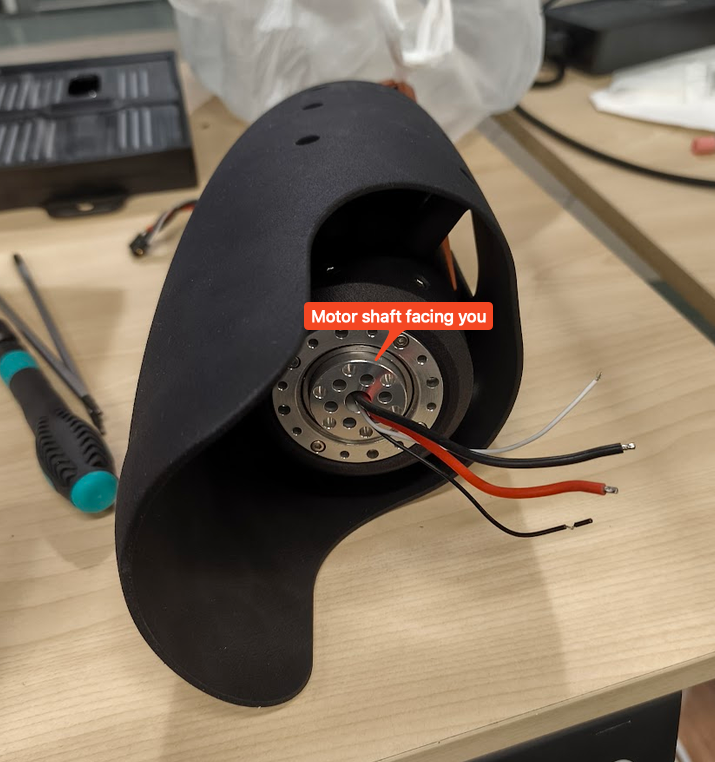

Take the current assembly and turn it such that the motor EC-A3814-H14-107 (ID 3) is facing toward you.
Step 7: Attach Motor Hub
1/ 1

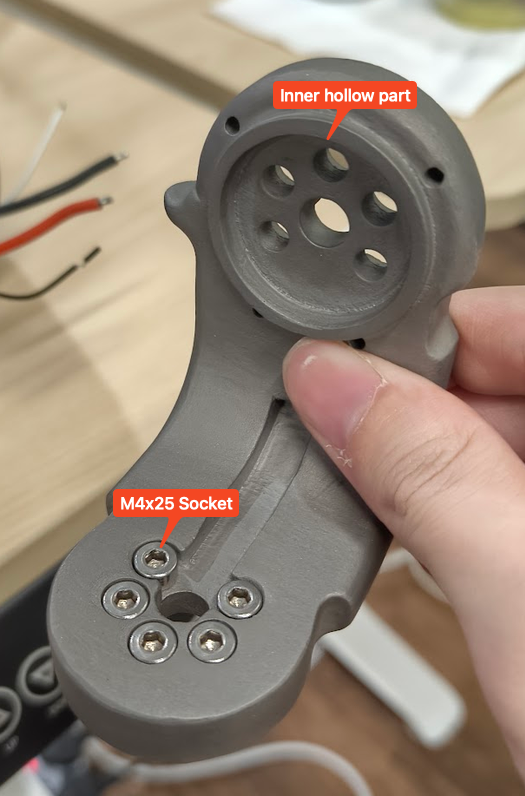

Take part and locate the inner part that is not hollow. Put 5 – M4x25 socket bolts into the 5 holes on part .
Step 7: Attach Motor Hub
1/ 1

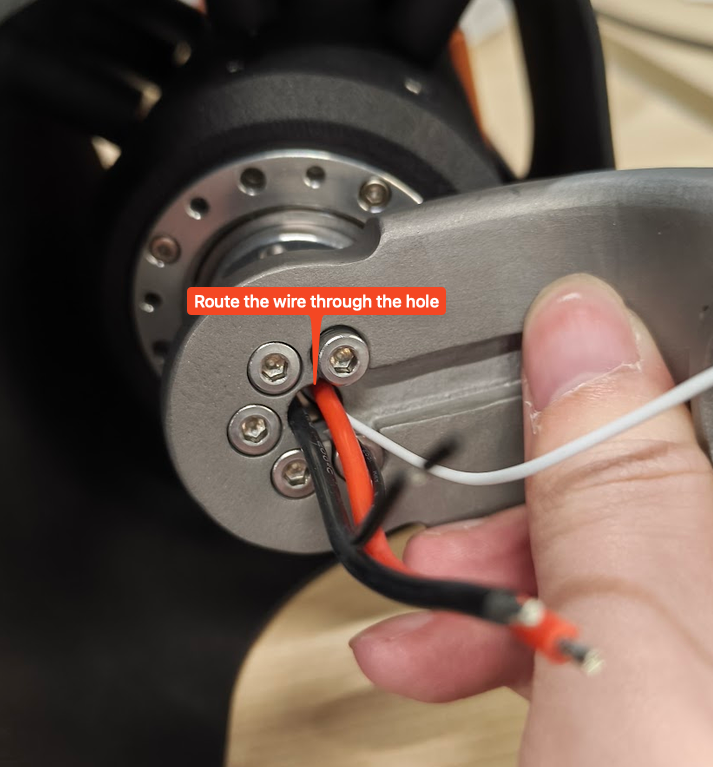

Take the wire from the hollow shaft and put it through the middle hole on part where all the bolts were inserted.
Step 7: Attach Motor Hub
1/ 1

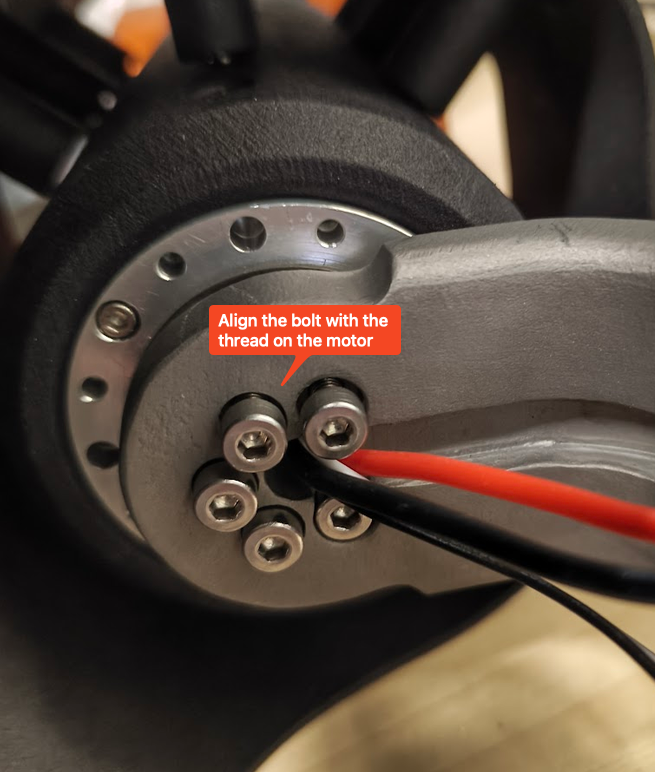

Align all the M4x25 socket bolt with the threaded holes on the motor and then lightly tighten the bolt into the motor to align part with the motor.
Step 7: Attach Motor Hub
1/ 1
After the parts are aligned, remove each of the 5 – M4x25 Socket bolts, apply threadlocker and then tighten them back to secure Part and the motor together.
