Step 13: Join the Ankle Assemblies
Join Sub Assemblies B and C at the ankle with two socket bolts.
Parts needed
| Part | Count |
|---|---|
| M4 nylon-insert nuts | 2 |
| M4x25 socket bolt | 2 |
Instructions
Take Sub Assembly B and put it on the surface such that the back side of the knee is facing upward towards the ceiling and the ankle is facing toward you.

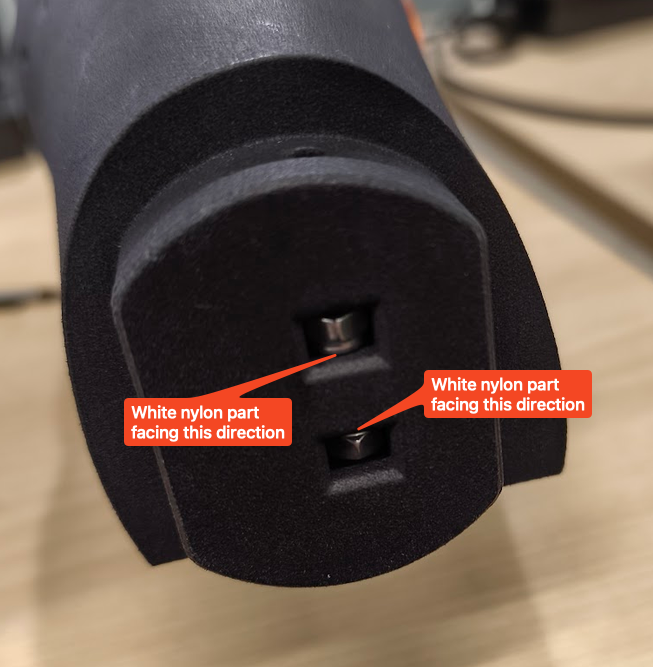

Take 2 – M4 nylon-insert nuts and slot it into the 2 holes at the ankle part, Make sure that the white nylon part is facing each other toward the center.

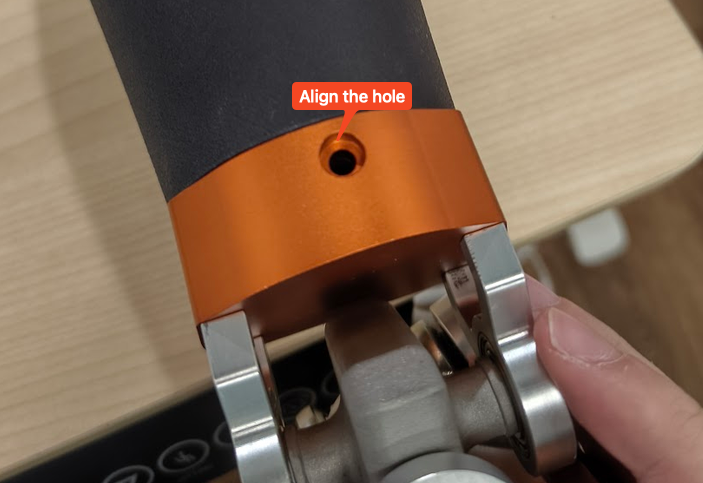

Take Sub Assembly C and slot part to fit into the ankle portion on part . Make sure that the holes are aligned with the locknuts.

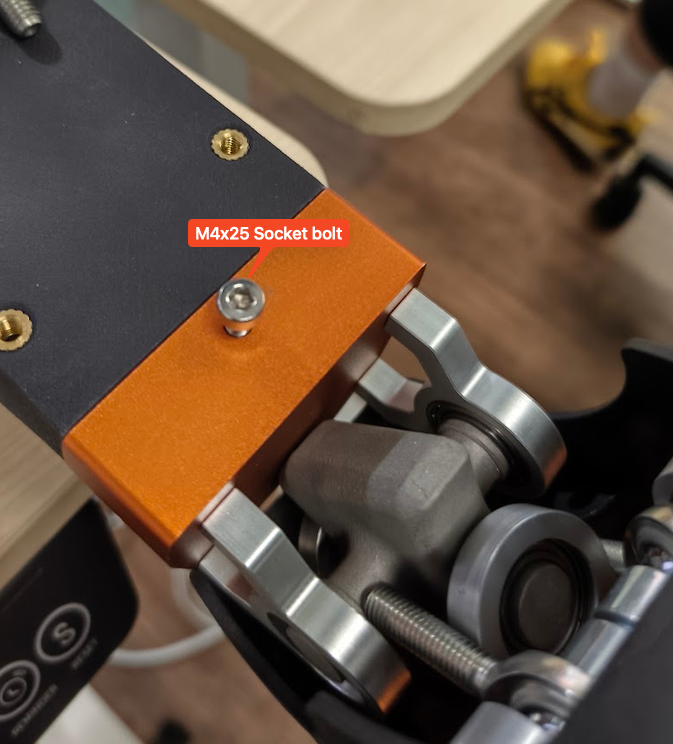

Take 1 – M4x25 Socket bolt and insert it into the hole on part and tighten it all the way to secure the part to Part .
Turn the current assembly 180 degrees so that the knee is now facing upward toward the ceiling.

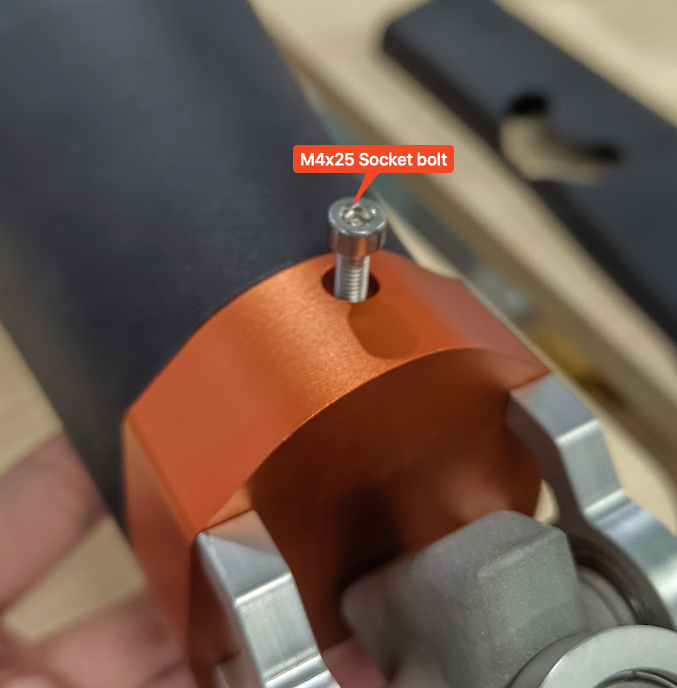

Take 1 – M4x25 Socket bolt and insert it into the hole on part and tighten it all the way to secure the part to Part .
