Step 6: Install Outer Housing
Enclose the assembly with part 500_04C and secure it with 17 bolts.
Parts needed
| Part | Count |
|---|---|
| 1 | |
| M4x14 Socket bolt | 17 |
Instructions

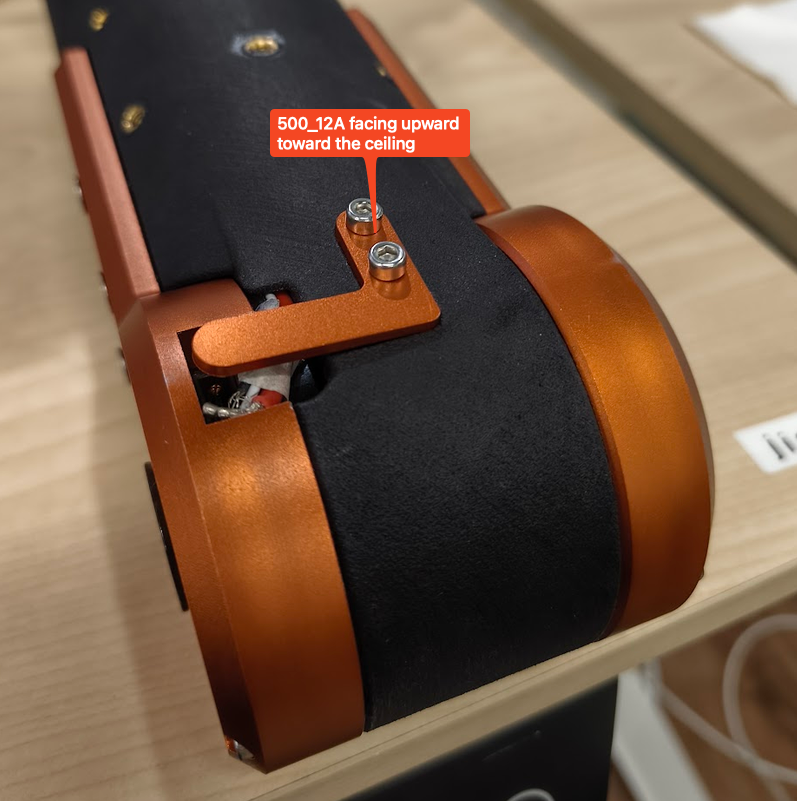

Take the current assembly and lay it flat on the surface such that part is facing upward toward the ceiling and toward you.

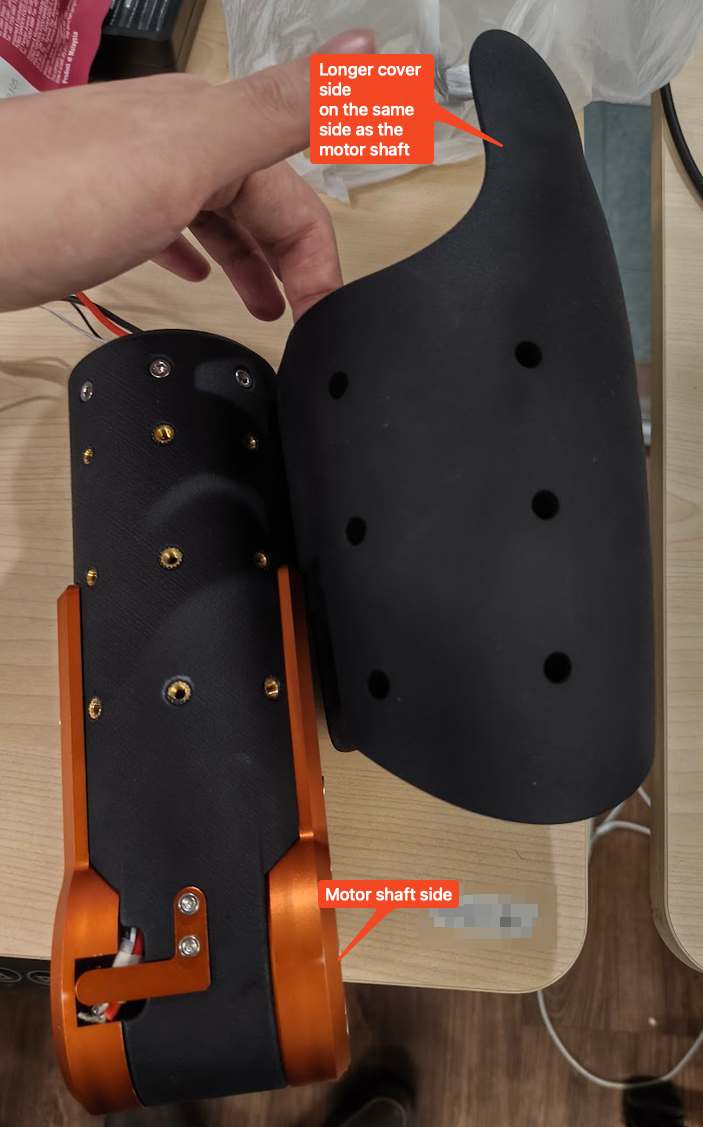

Take part and oriented it such that the side with the longer cover is on the same side as the motor EC-A4315-P2-36 (ID 4) shaft.
Slide the current assembly into part and make sure that the holes on part are aligned with the threaded insert on part .

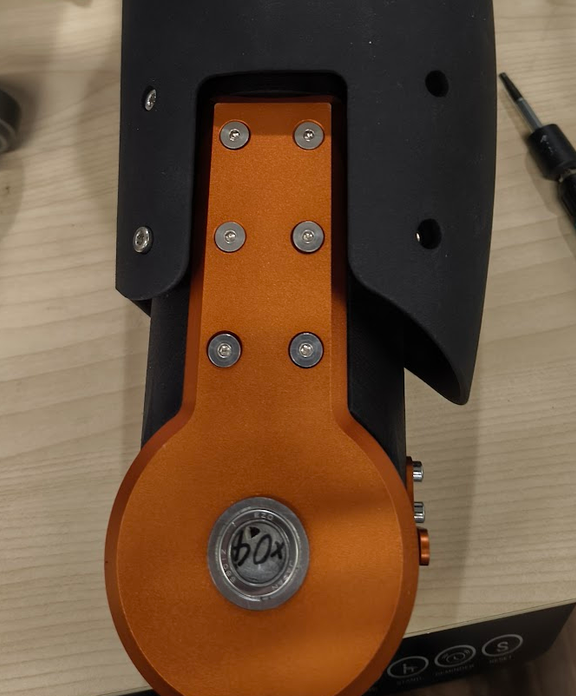

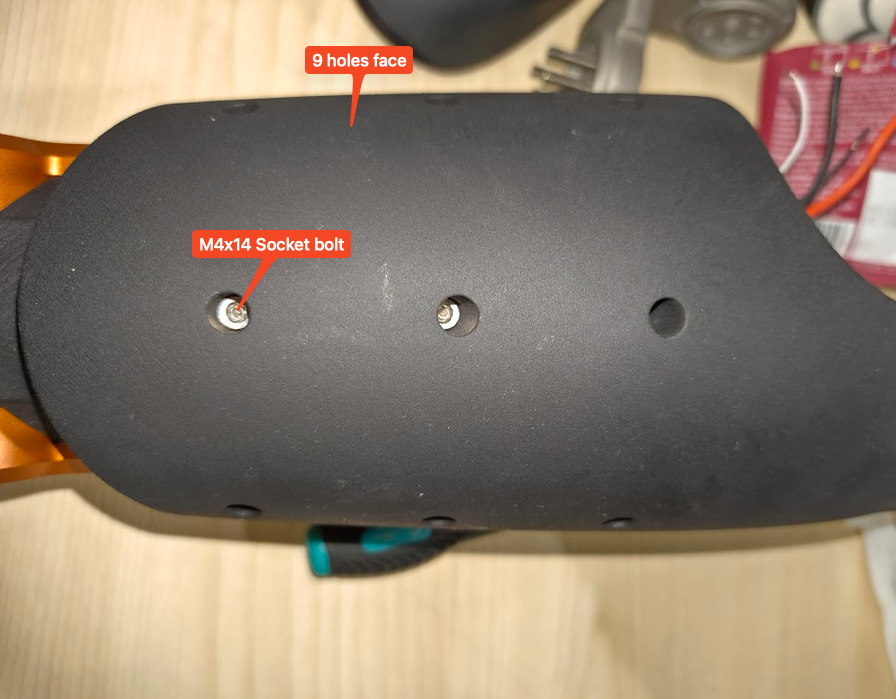

After you have slotted the current assembly into part , turn it until you see the L-shape part is facing you. You should see 9 holes on parts . Take 9 – M4x14 Socket bolts and lightly tighten them into the holes on parts to align part to the threaded insert on part .

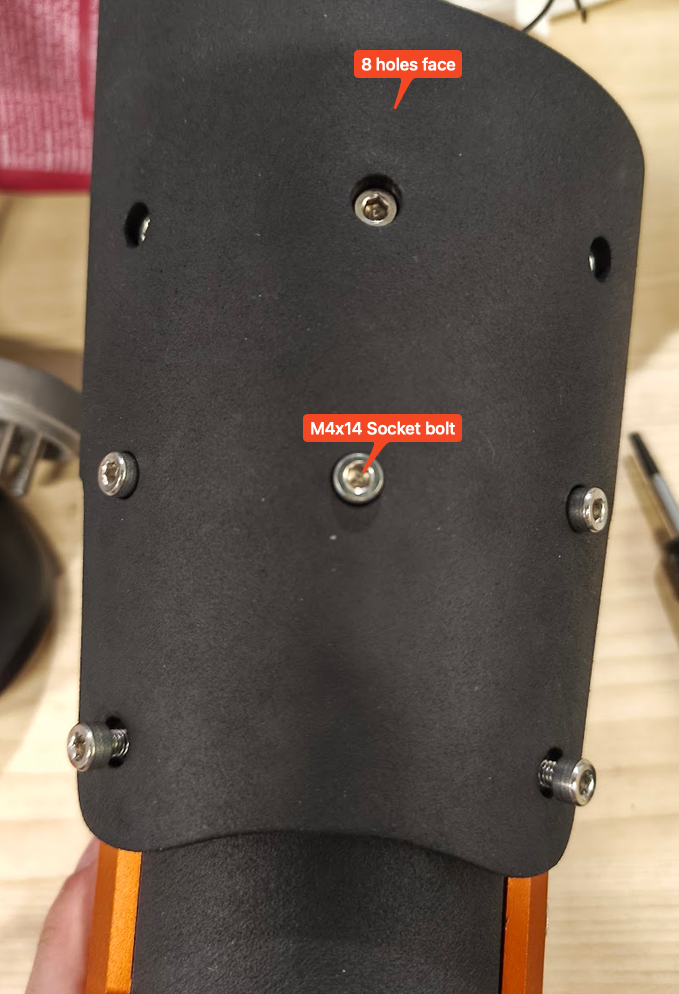

Turn the whole assembly around again to see the back of it (opposite side of the above). Take 8 – M4x14 socket bolts and lightly tighten them into the holes on parts to align part to the threaded insert on part .
After the parts are aligned, tighten all 17 – M4x14 socket bolts to secure part and part together.
