Step 11: Assemble Foot Pivot
Build the pillow-block pivot assembly and join parts 500_25A and 500_39C.
Parts needed
| Part | Count |
|---|---|
| 1 | |
| 1 | |
| 1 | |
| 12mm Bore 1-Side, 2-Post Pillow Block, 1602-0032-0012, GoBilda | 4 |
| 1 | |
| M4x25 Socket bolts | 4 |
| M4x14 | 4 |
Instructions

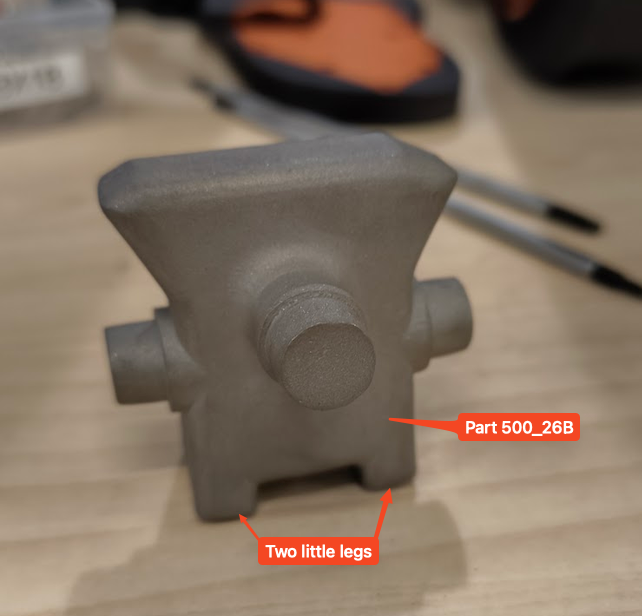

Take part and put it on a flat surface. Oriented it such that the part is standing on the portion with the two little legs.

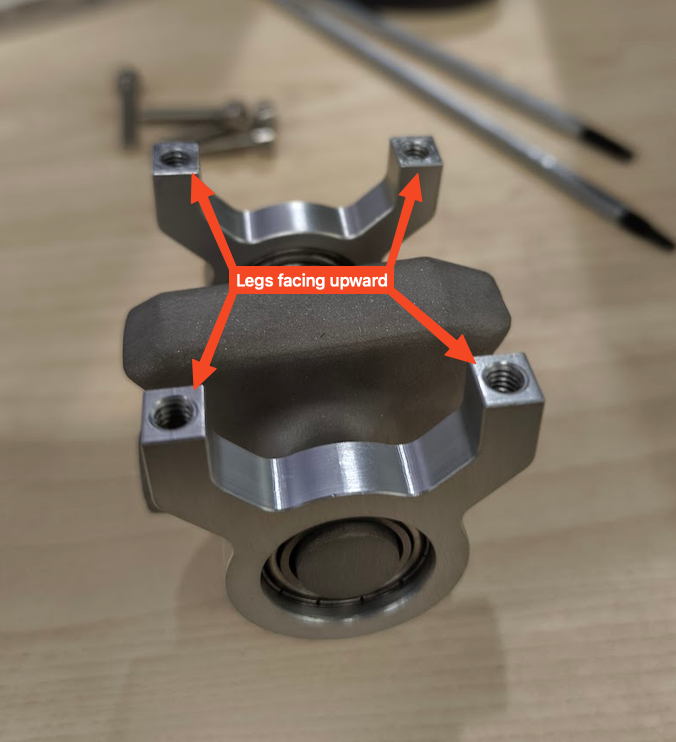

Take 2 – 12mm Bore 1-side, 2-Post Pillow Block and fit it into the 2 pole nearest to the top of the part. The legs of the Pillow Block should be pointing upward toward the ceiling.

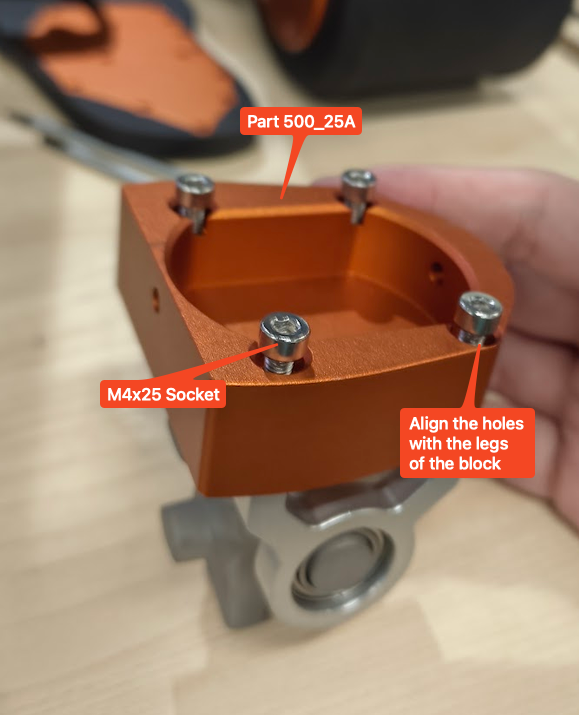

Take part and put it on top of the legs of the Pillow Block. Make sure the 4 holes on the surface of the circumference of part aligned with the Pillow Block leg.
Take 4 – M4x25 socket bolts and lightly tighten it into the 4 holes on the circumference of part to align it to the 2 Pillow Blocks.
Once the parts are aligned, remove each of the M4x25 socket bolts, apply the threadlocker onto them and tighten them back into the holes to secure part to the 2 Pillow Blocks.

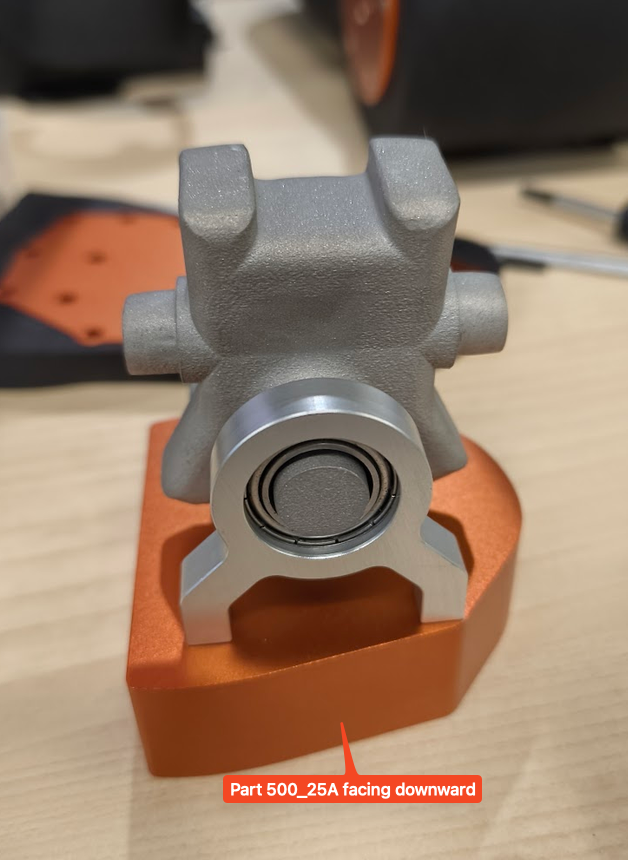

Now flip the current assembly upside down so that the part is facing downward toward the floor. Put it to one side.

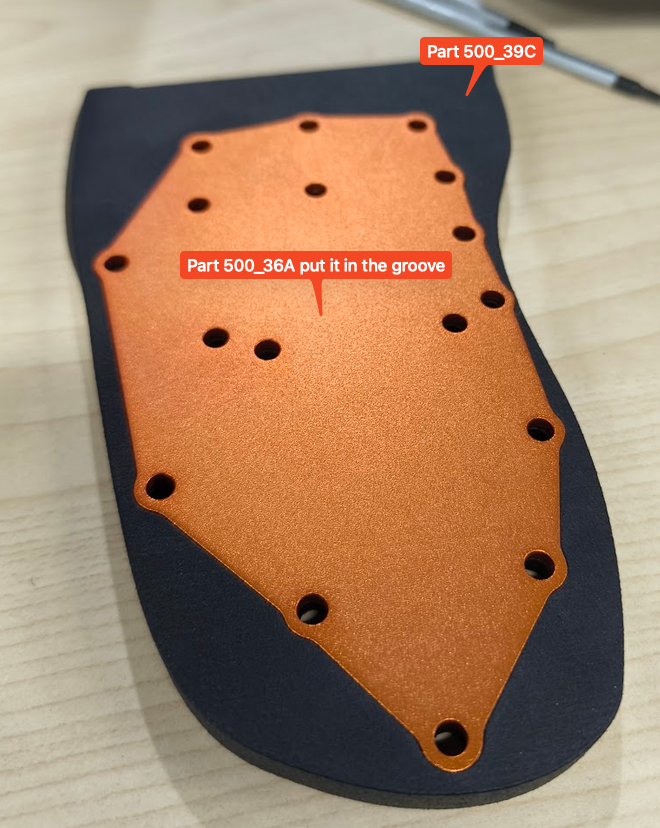

Take part and fit it onto the groove on part .

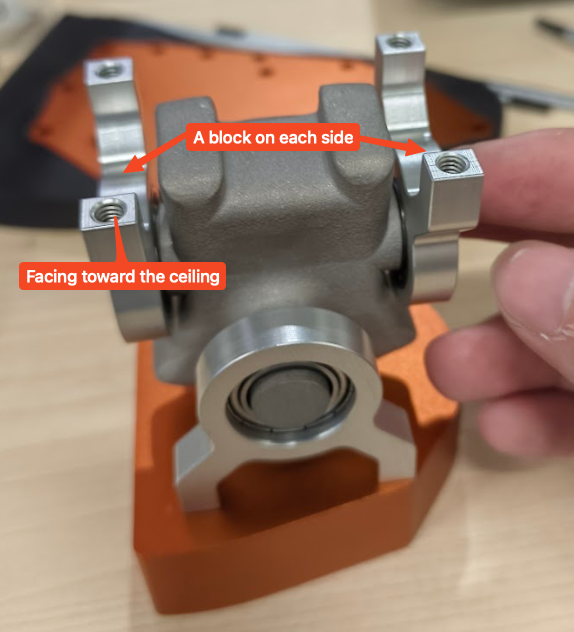

Take the assembly with part and put 2 Pillow Block onto the 2 poles that have not been used yet on part . Make sure that the legs of the 2 Pillow Block are facing upward toward the ceiling.

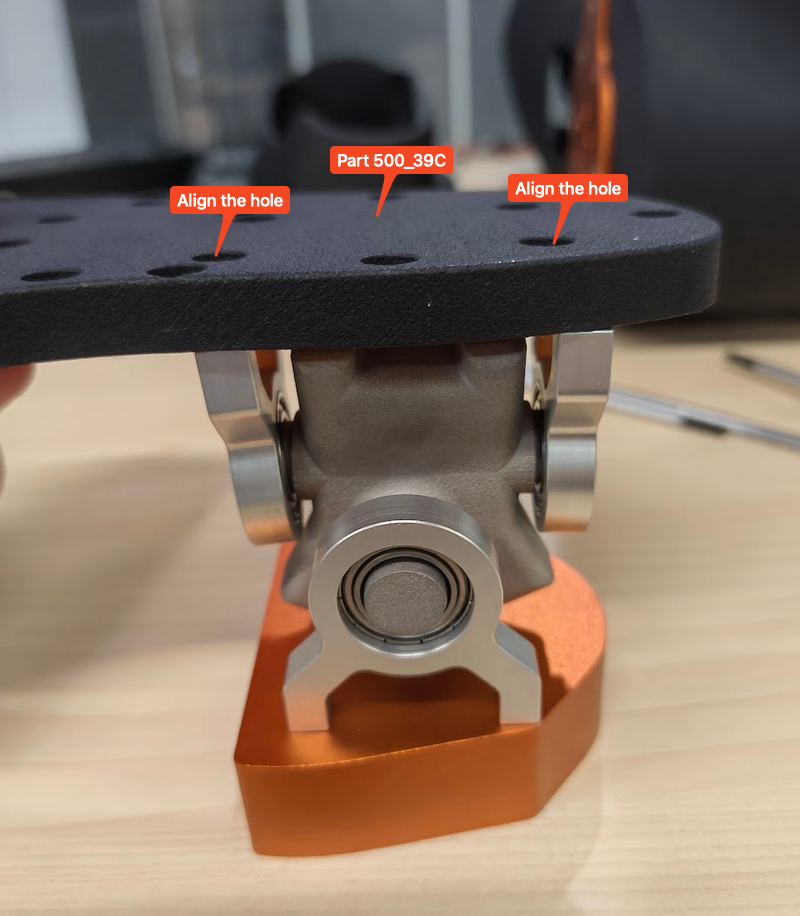

Take part and try to align the 2 Pillow Block on part . The part should be the face come into contact with the Pillow Blocks’ legs.

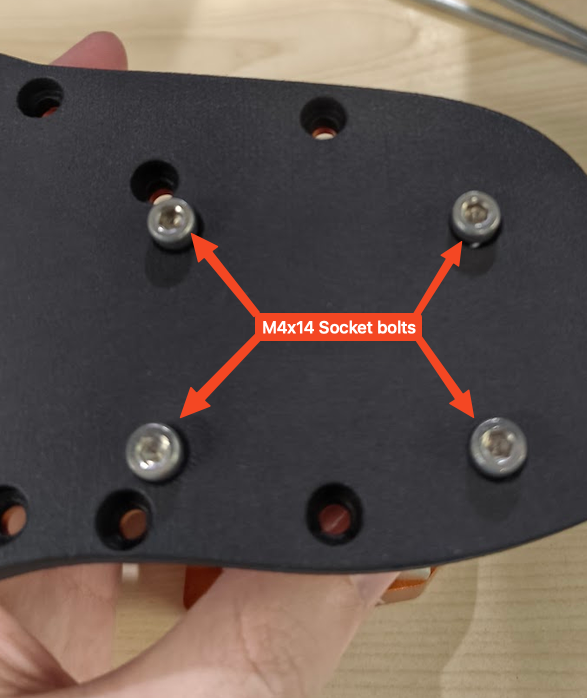

Take 4 – M4x14 socket bolts and lightly tighten into the 4 holes that are aligned with the 2 Pillow Block legs such that they are aligned and secure to each other.
Once the parts are aligned, remove each of the M4x14 sockets, apply the threadlocker onto them and tighten them back into the holes to secure part to the 2 Pillow Block on part .
