Step 4: Attach Part 500_06A
Fit part 500_06A over motor ID 4 and fasten it to the existing assembly.
Parts needed
| Part | Count |
|---|---|
| 1 | |
| M4x12 Flat bolt | 6 |
| M3x12 Flat bolt | 6 |
| M3x20 Socket bolt | 1 |
Instructions

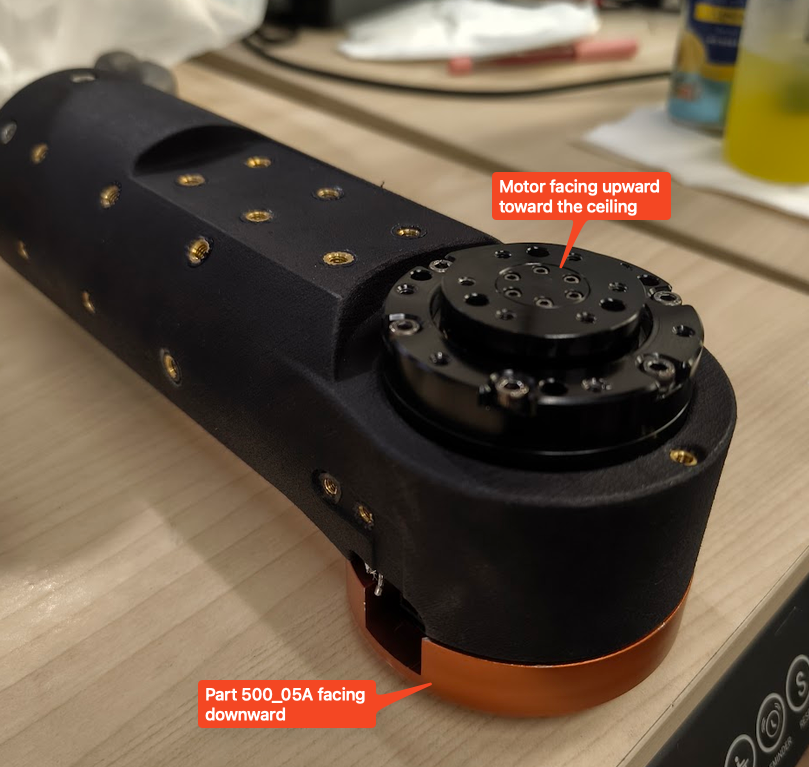

Lay the current assembly flat such that the part is facing downward toward the surface and the motor shaft is facing towards the ceiling.

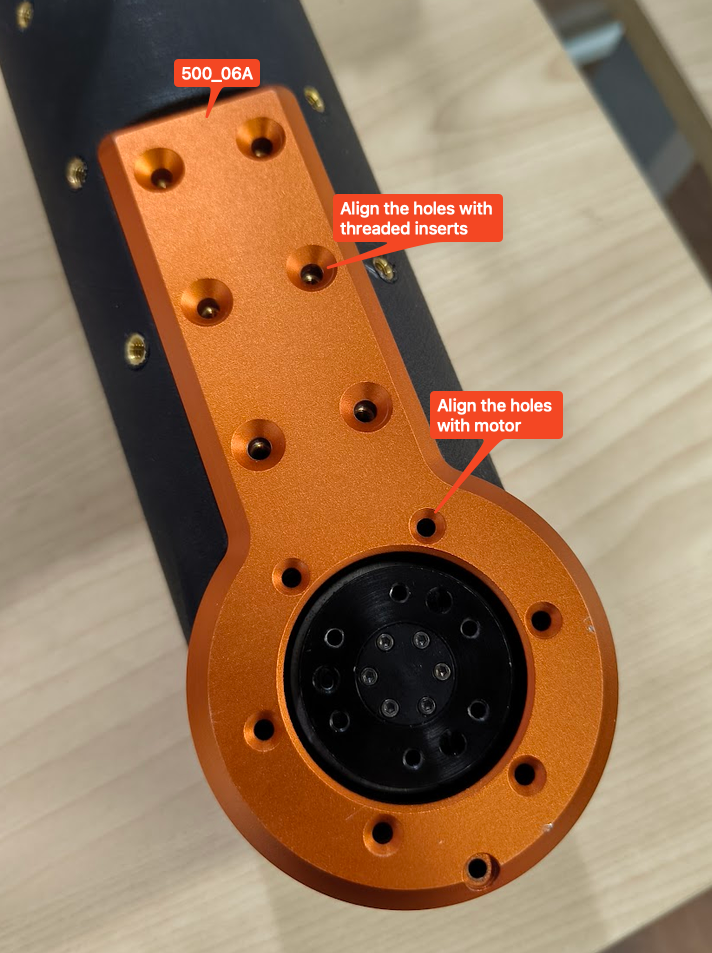

Take part and align it with the motor and part such that the motor fits into the round hollow in part and the 6 holes on the long part align with part threaded insert.
Take 6 – M3x12 Flat bolt and lightly tighten into the 6 holes along the circumference of the round portion of part that is fitting on to the motor to align part with the motor.
After the parts are aligned, remove each of the 6 – M3x12 flat bolts, apply threadlocker and then tighten them back to secure Part and the motor together.

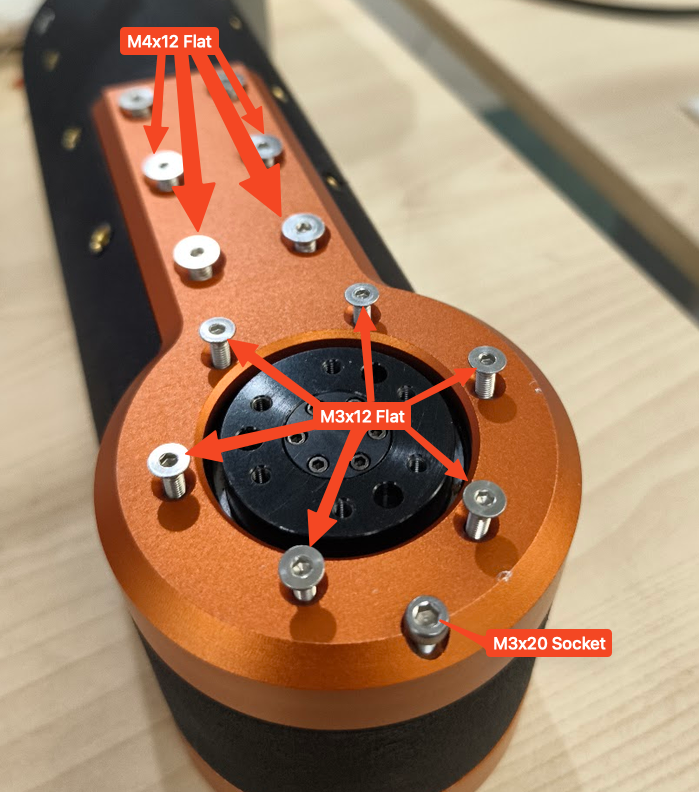

Take 6 – M4x12 flat bolt and lightly tighten into the 6 holes on the long portion of part that align with the threaded insert on part to align the two parts together. Once they are aligned, tighten each M4x12 flat bolt to secure the part together.
Take 1 – M3x20 socket bolt and tighten it into the singular hole at the very edge of the circumference of part to secure it to part .
