Legs ModuleSub-assembly A

Step 5: Attach Part 500_12A

Attach part 500_12A in the L-shaped groove on part 500_03C.

Parts needed

PartCount
1
M3x6 Socket bolt2

Instructions

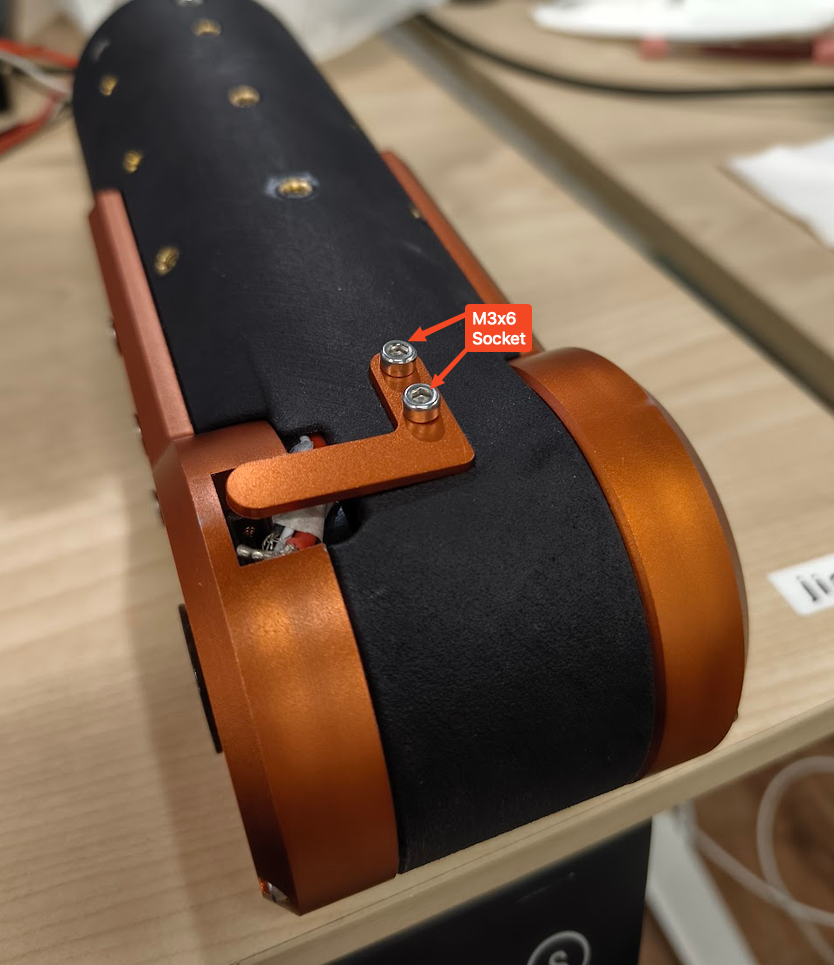

Turn the current assembly around such that the L-shape grove is facing upward toward the ceiling and toward you.

Take part and align it with the L-shape grove on part .

Take 2 – M3x6 socket bolt and lightly tighten it into the 2 holes on part to align it with part . Once the part is aligned, tighten the 2 bolts so they secure part to part .
