Arms ModuleSub-assembly E
Step 19: Attach the End Mount
Fasten Part 300_12B to the shaft of motor ID 17.
Parts needed
| Part | Count |
|---|---|
| 1 | |
| M4x8 Socket bolts | 6 |
Instructions

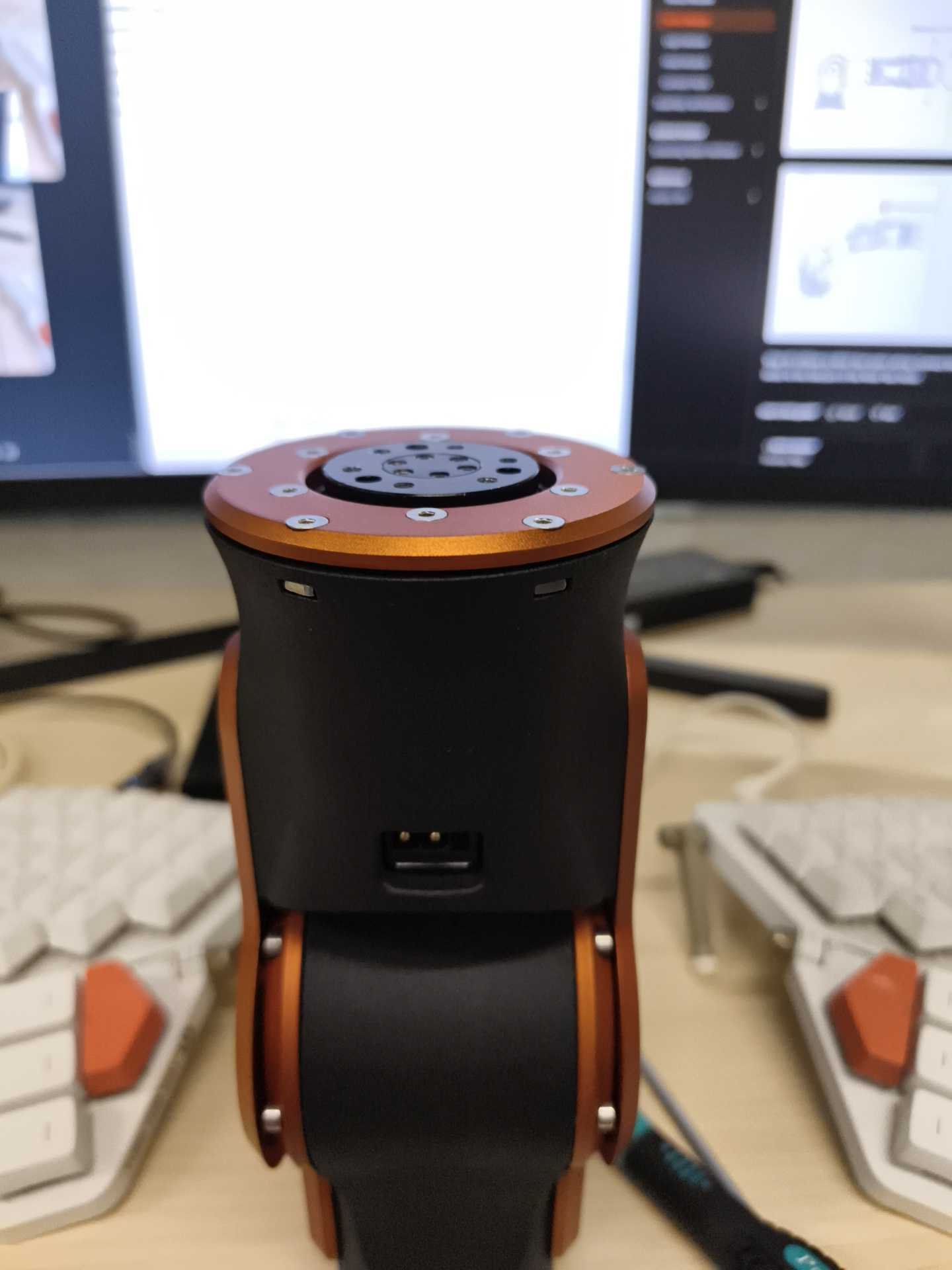

Put the current Sub Assembly E upright such that the Part is facing the ceiling.
Step 19: Attach the End Mount
1/ 1

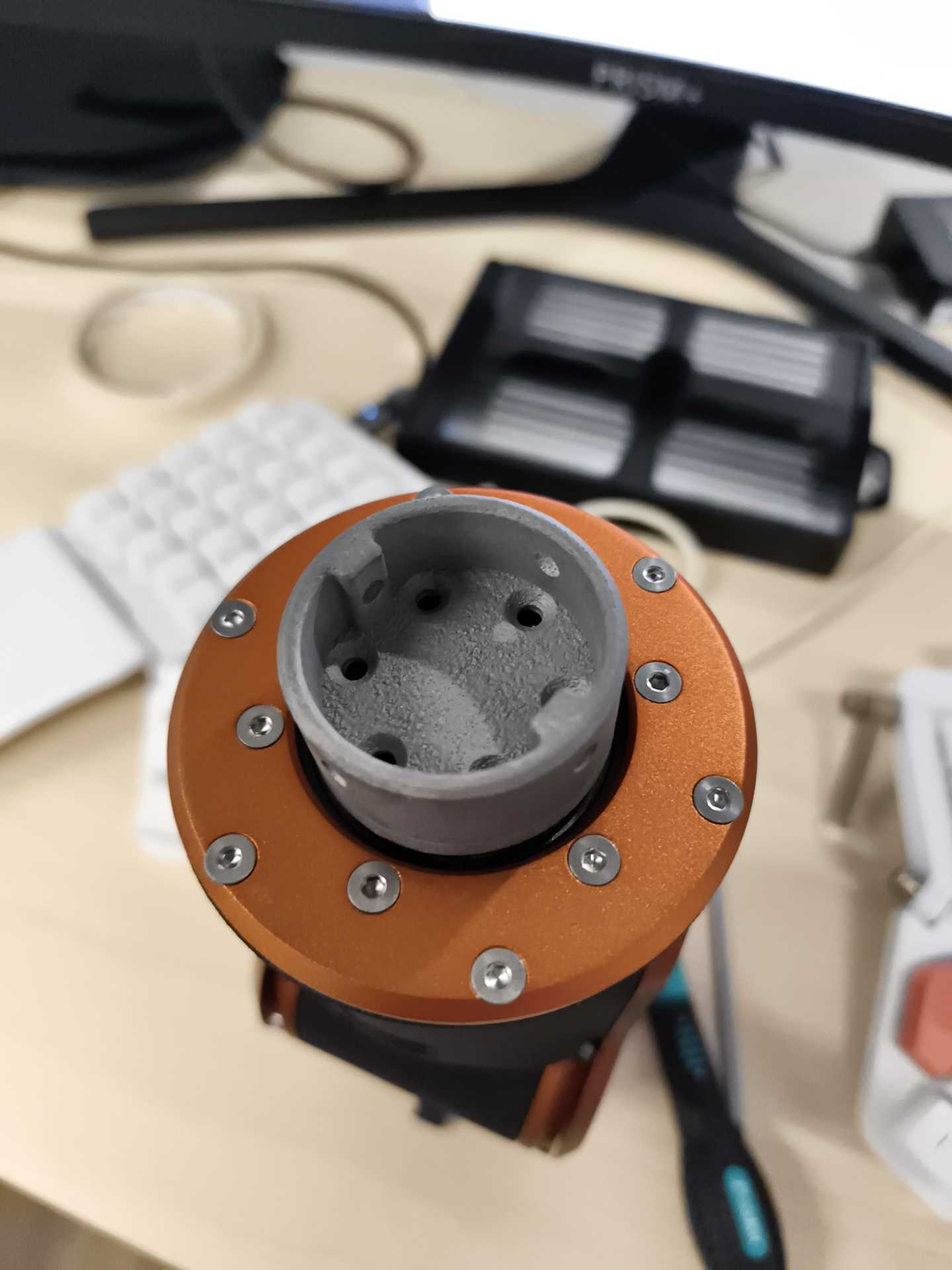

Take part , make sure the hollow part is pointed towards the ceiling, then align the 6 holes on it with the 6 threaded holes on motor EC-A4310-P2-36 (ID 17).
Step 19: Attach the End Mount
1/ 1

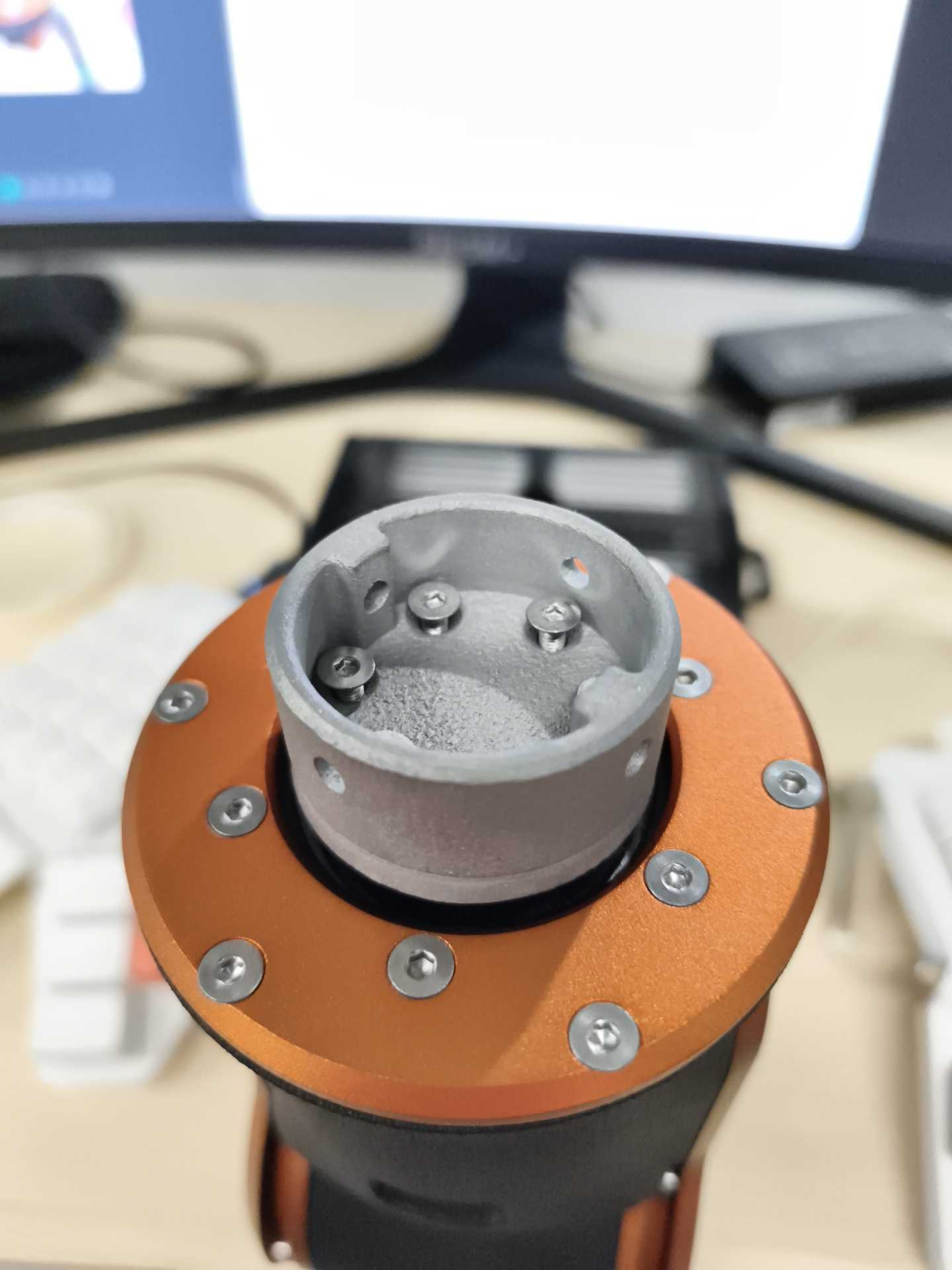

Take 6 – M3x10 Flat bolts and lightly tighten them in the 6 holes on part to aligned it with the holes on the motor shaft.
Step 19: Attach the End Mount
1/ 1
After the part is aligned, remove each of the 6 – M3x10 flat bolts, apply threadlocker and then tighten them back to secure Part and the motor together.
