Step 17: Attach the Bearing-Side Link
Seat Part 300_09A in the bearing and fasten it to Part 300_16C.
Parts needed
| Part | Count |
|---|---|
| 1 | |
| M4x10 Flat bolt | 1 |
| M4x8 Flat bolt | 2 |
| M4 Square nut | 2 |
Instructions

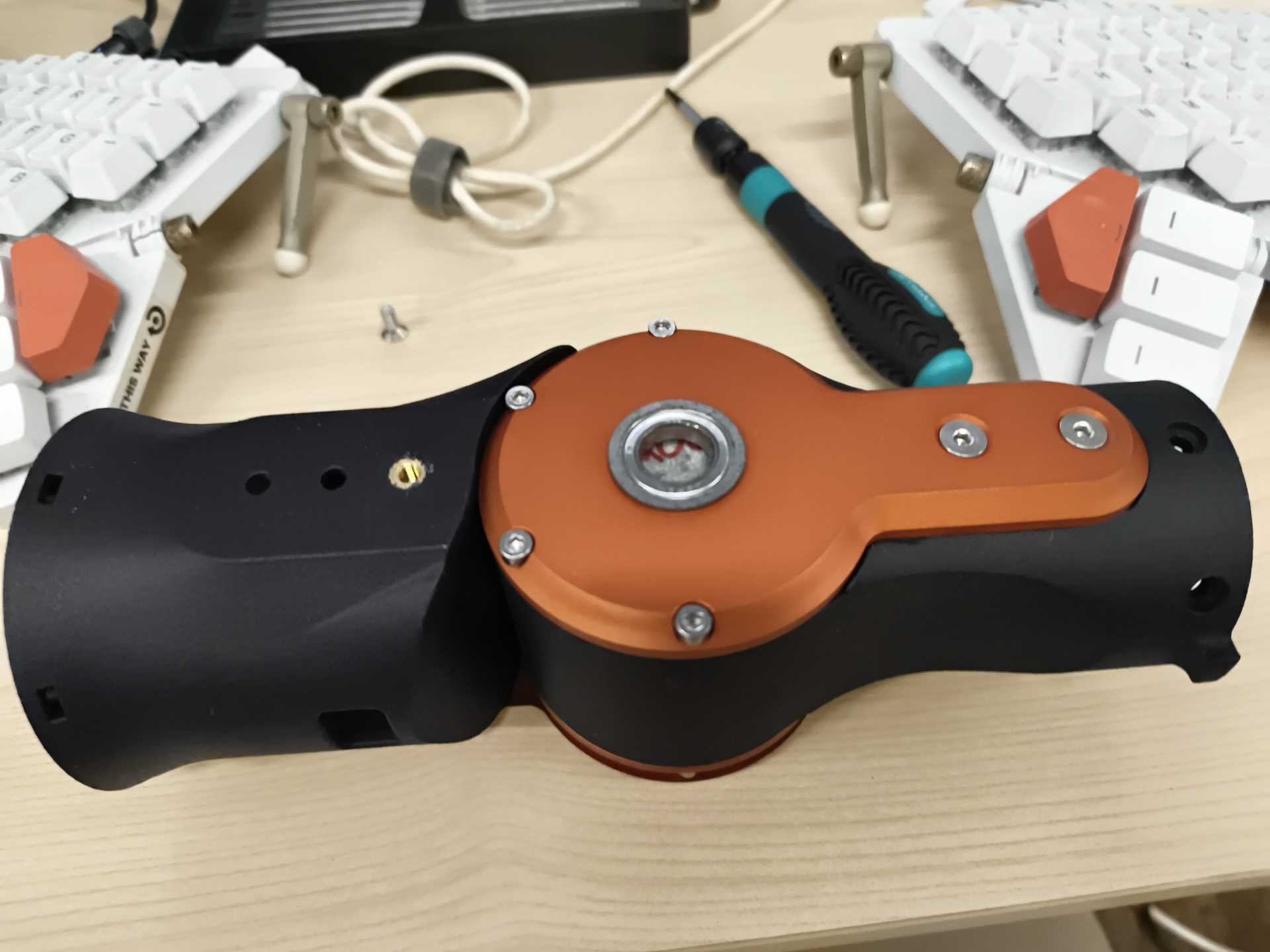

Lay current Sub Assembly E flat such that the portion with the bearing facing upward toward the ceiling.

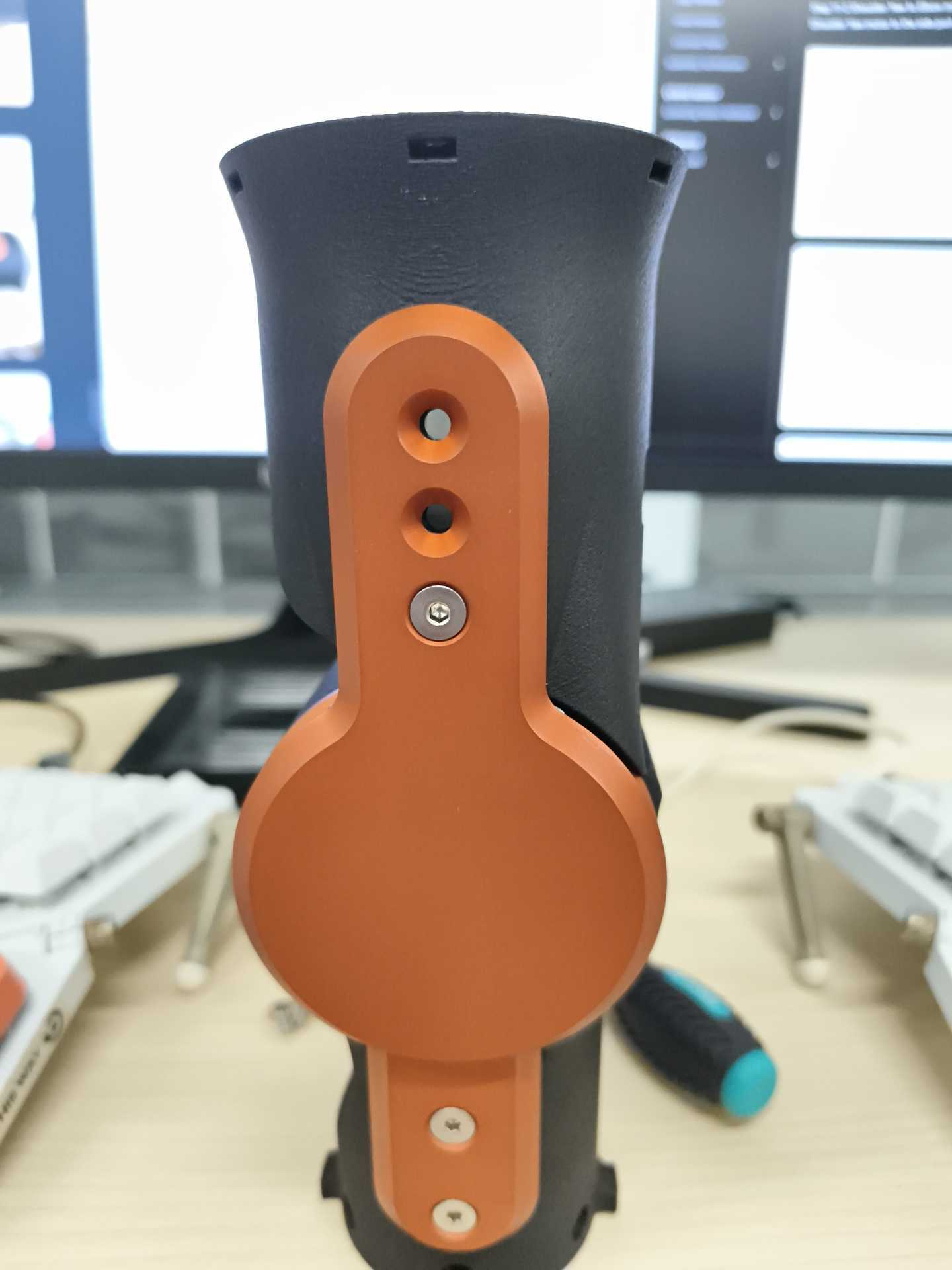

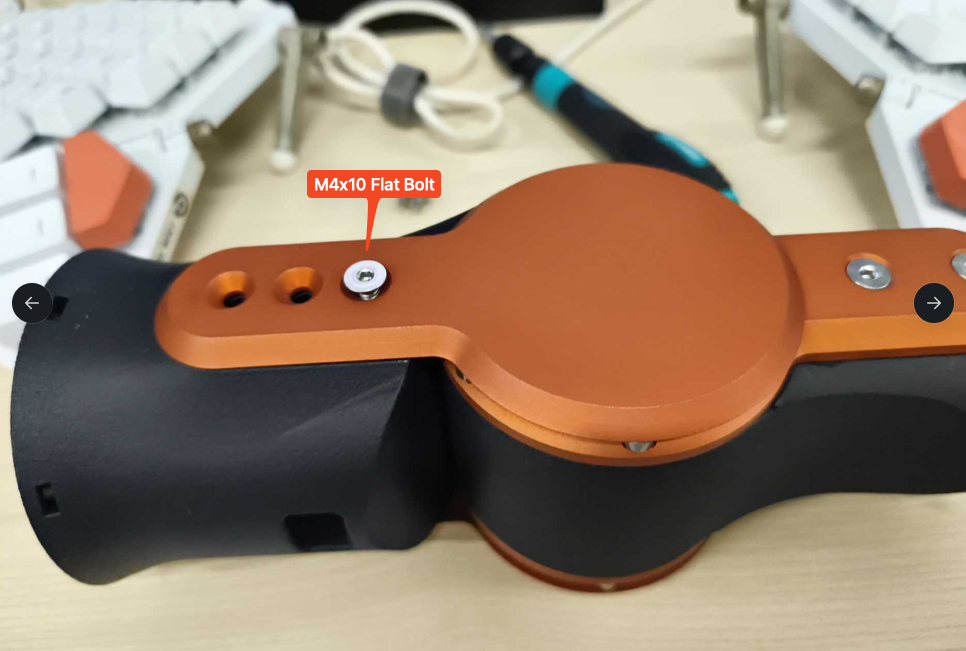

Take 1 – M4x10 Flat bolt and lightly tighten it into the hole nearer to the round part of Part to temporarily secure Part to part .
Put the current Sub Assembly E upright such that the hollow shaft of Part is facing the ceiling. We will start putting the M4 square nut in the inner hollow part of Part . This part is tricky and will require a bit of finesse, so do it slowly and steady.

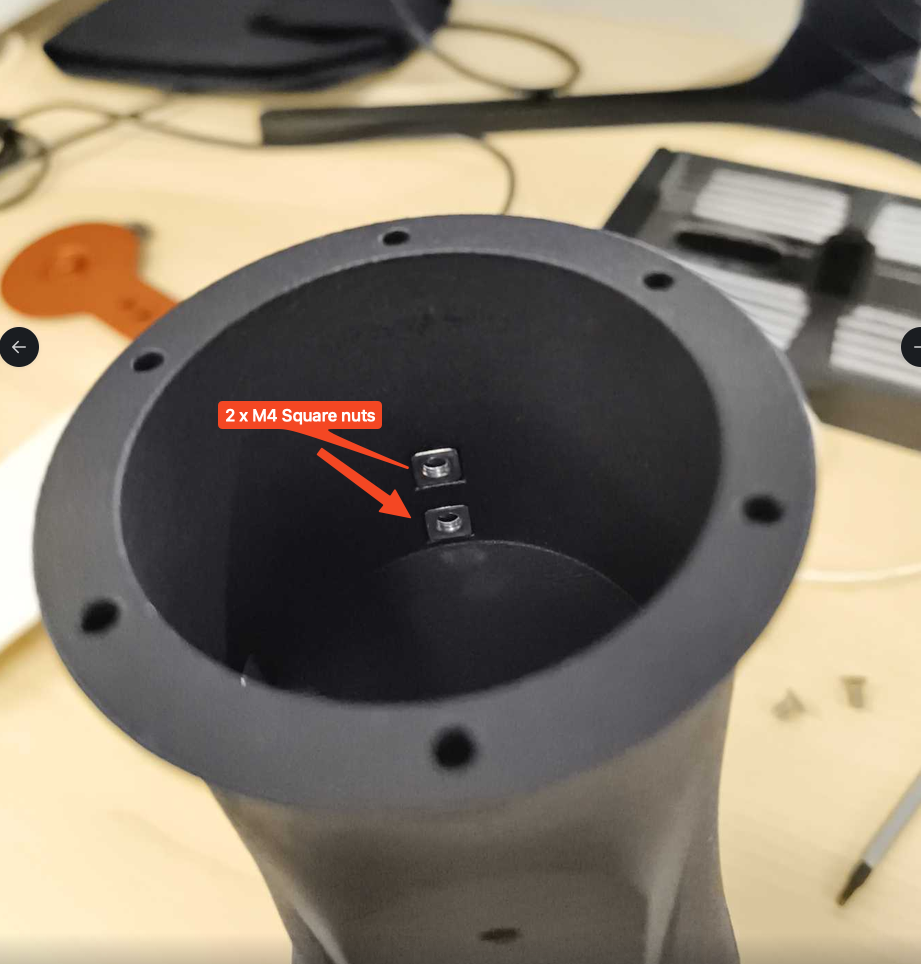

Take 2 – M4 square nut and aligned it with the holes of the inner hollow shaft of Part . Then, use a piece of masking tape to help secure the square nut in place.

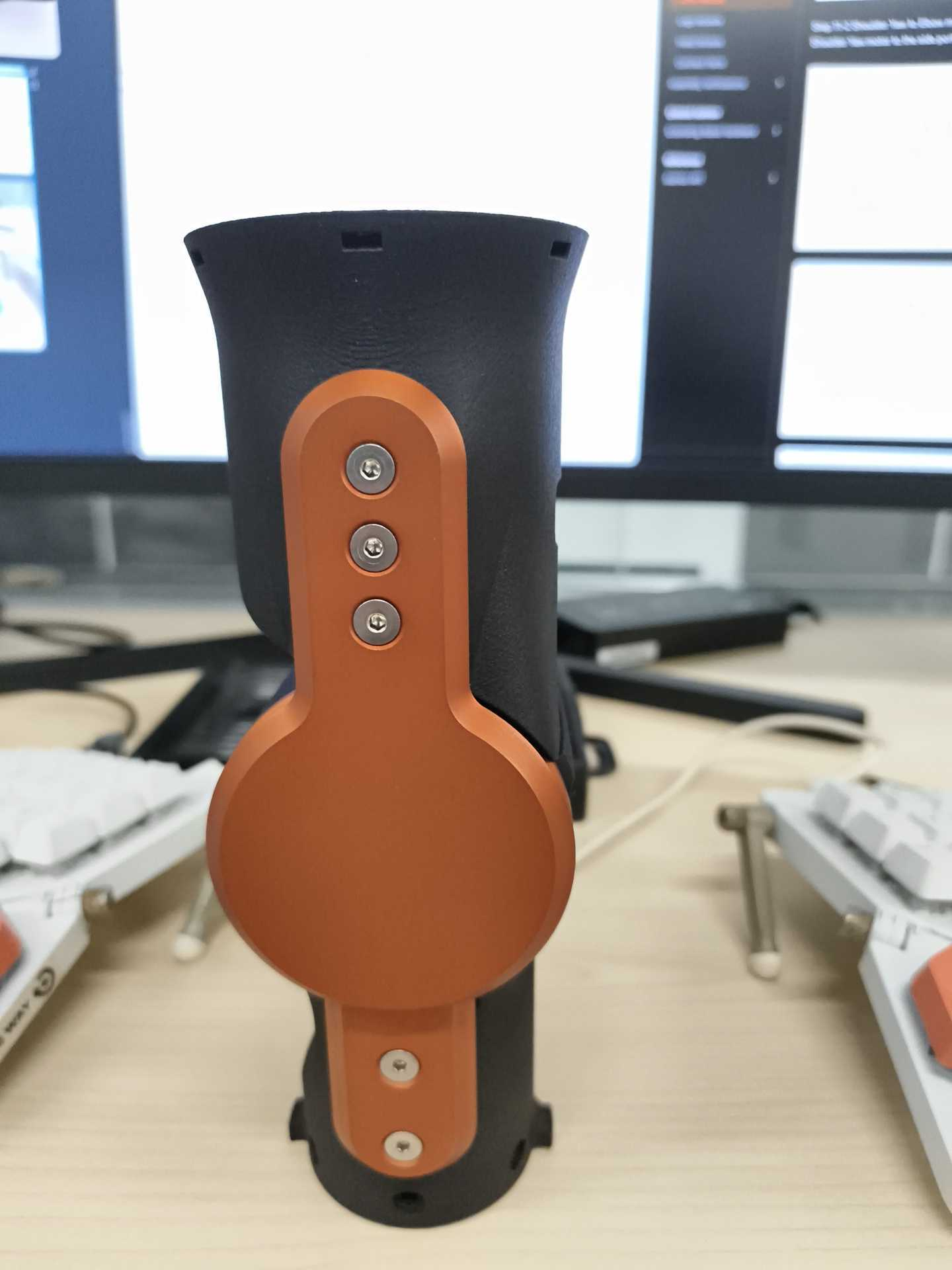

Take 2 – M4x8 Flat bolt, lightly tighten each of the M4x8 flat bolt so that the parts are secured together with the M4 square nuts.
