Arms ModuleSub-assembly E
Step 15: Attach the Arm Link
Secure Part 300_10A to the motor shaft and align it with the arm.
Parts needed
| Part | Count |
|---|---|
| 1 | |
| M3x10 Flat bolt | 6 |
Instructions

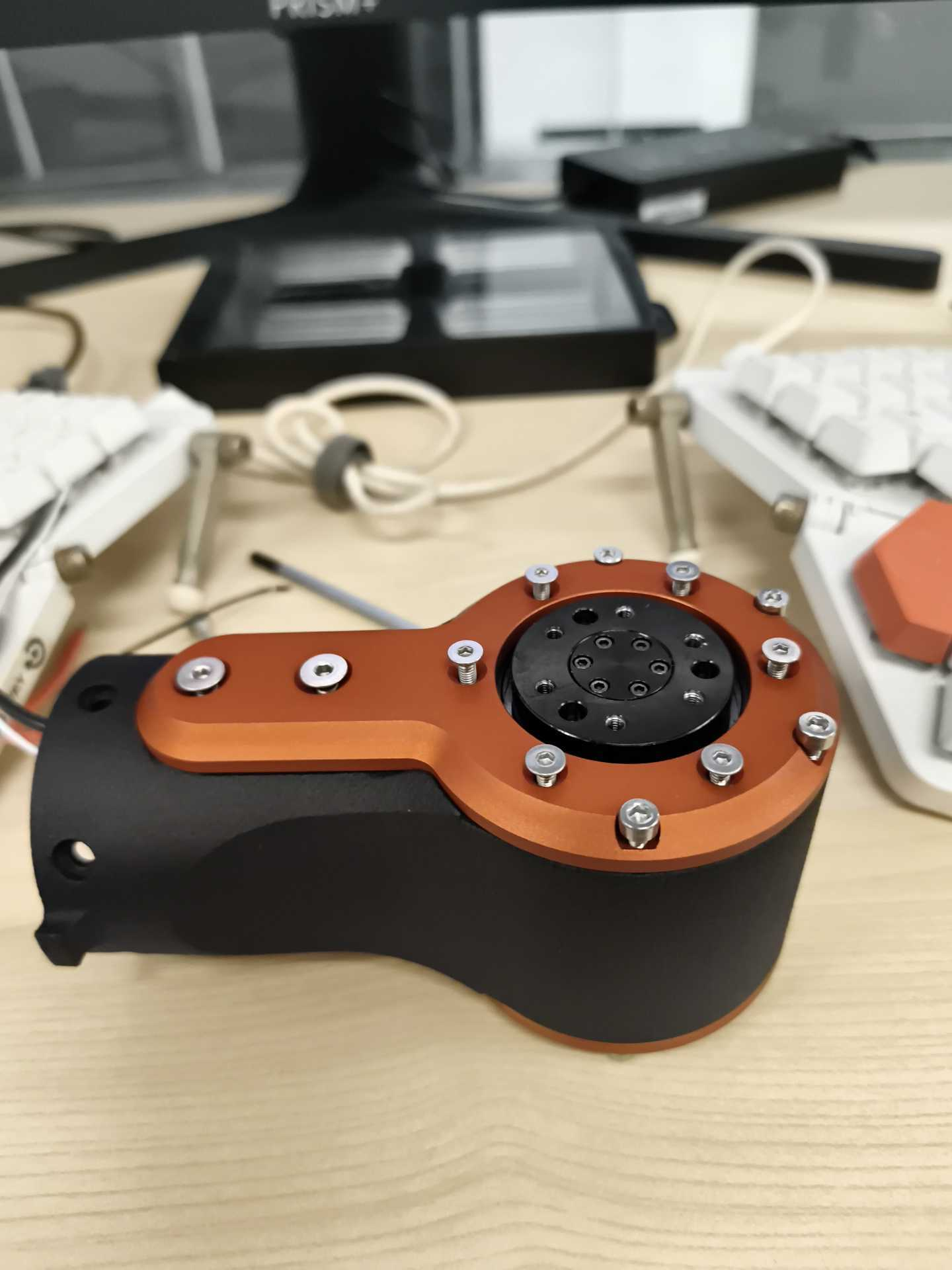

Take Sub Assembly D and lay it on a flat surface. Make sure that the motor shaft is facing upward toward the ceiling.
1/ 1

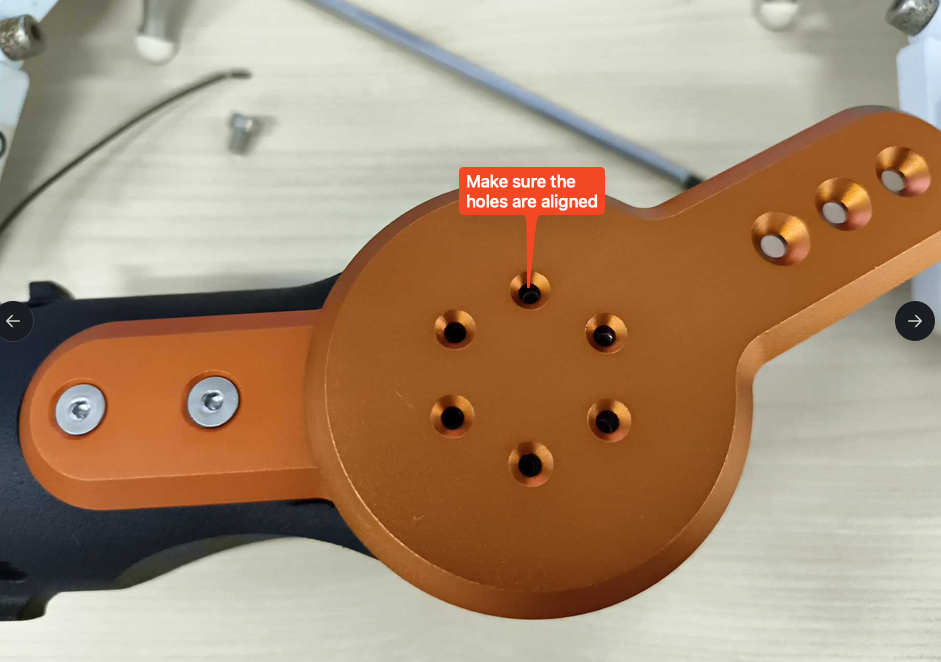

Take part and align the part with the motor shaft such that the 6 holes on the surface of part aligned with the 6 holes on the motor shaft.
Step 15: Attach the Arm Link
1/ 1
Take 6 – M3x10 Flat bolt and lightly tighten into the 6 holes on part to aligned the part with the motor.
Once the parts are aligned, remove each of the 6 – M3x10 flat bolts, apply threadlocker, and then secure them such that the two parts are secured to each other.

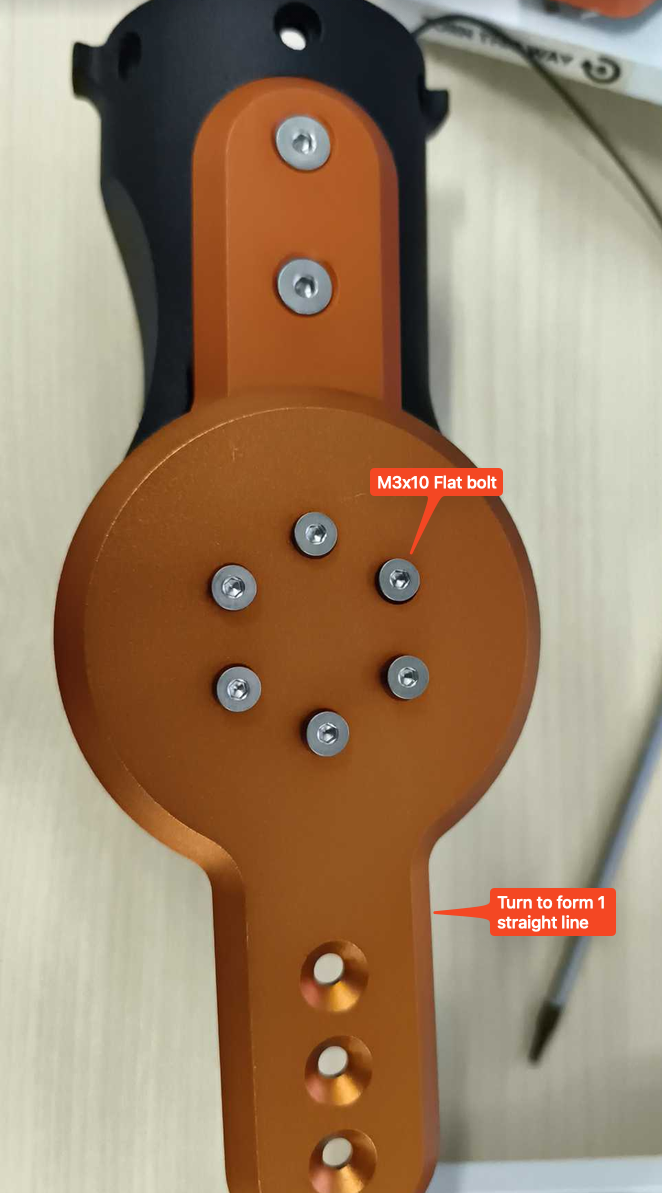

Once that is done, turn the part so that it is in line with the arm to form one straight line.
Step 15: Attach the Arm Link
1/ 1
