Arms ModuleSub-assembly D
Step 14: Attach the Motor Plate
Fasten Part 300_08A to Part 300_15C around the motor shaft.
Parts needed
| Part | Count |
|---|---|
| 1 | |
| M3x12 Flat bolt | 6 |
| M3x8 Socket bolt | 4 |
| M4x10 Flat bolt | 2 |
Instructions
Take Sub Assembly D and flip it upside down from the previous step, such that the motor shaft is upward and facing the ceiling.
Take part and place it on part , and align the parts such that all the holes on the surface align with each other.

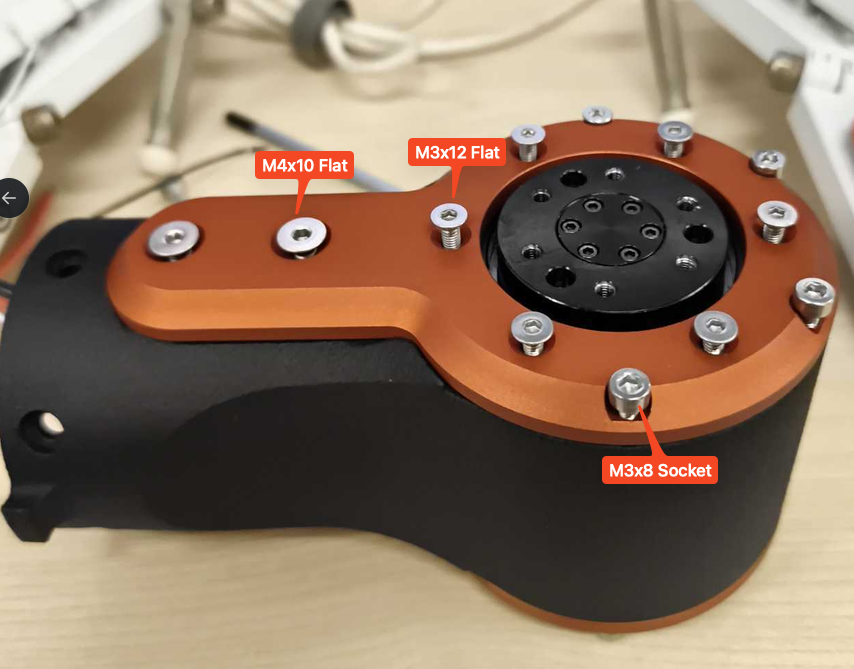

Take 6 – M3x12 flat bolts and lightly tighten in the 6 holes on the round part of part that align with the holes around the motor circumference.
Take 2 – M4x10 flat bolts and lightly tighten in the 2 holes on the long part of part to align the parts.
Take 4 – M3x8 socket bolts and lightly tighten in the 4 holes on the round part of part to align the parts.
Step 14: Attach the Motor Plate
1/ 1
After the part is aligned, remove each of the 6 – M3x12 flat bolts, apply threadlocker and then tighten them back to secure Part and Part together.
Do the same thing for the 2 – M4x10 socket bolts.
Do the same thing for the 4 – M3x8 socket bolts.
