Torso ModuleSub-assembly A
Step 6: Install the speaker
Align and secure the speaker in the front of the torso shell.
Parts needed
| Part | Count |
|---|---|
| 1 | |
| M4x10 socket bolts | 10 |
Instructions

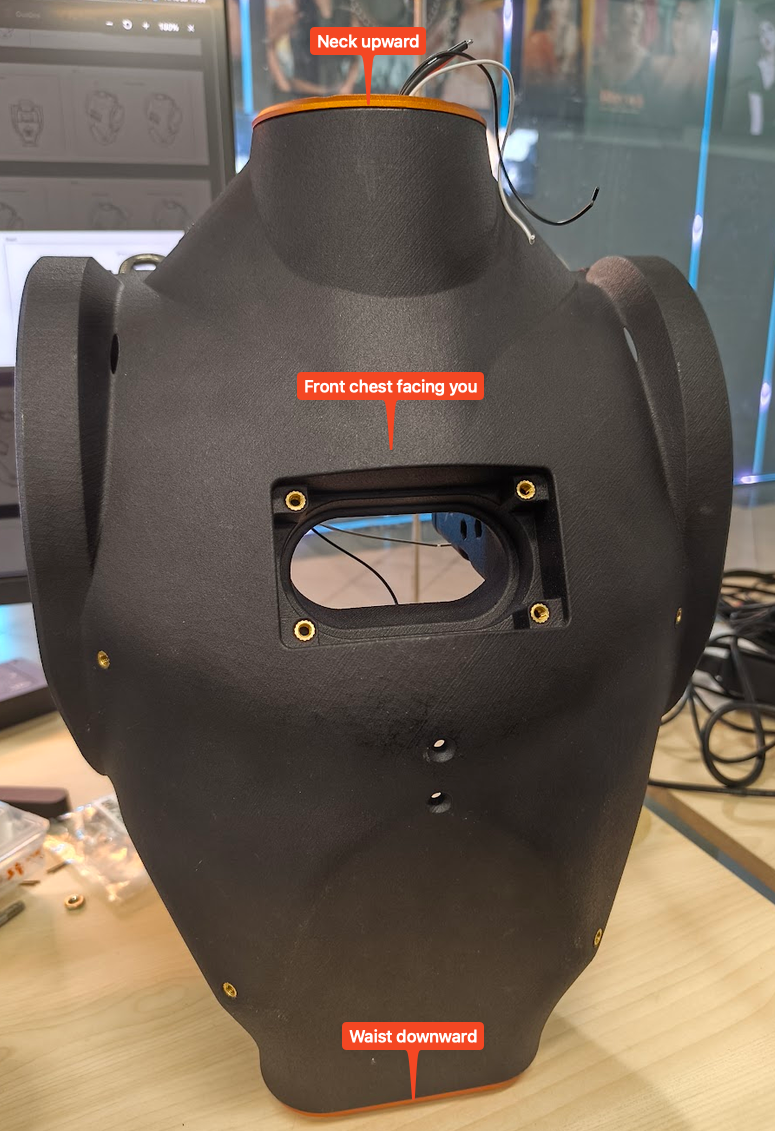

Take part and put it down such that the neck is facing upward toward the ceiling while the waist is pointing downward toward the surface. The hollow part should be facing away from you.
Step 6: Install the speaker
1/ 1

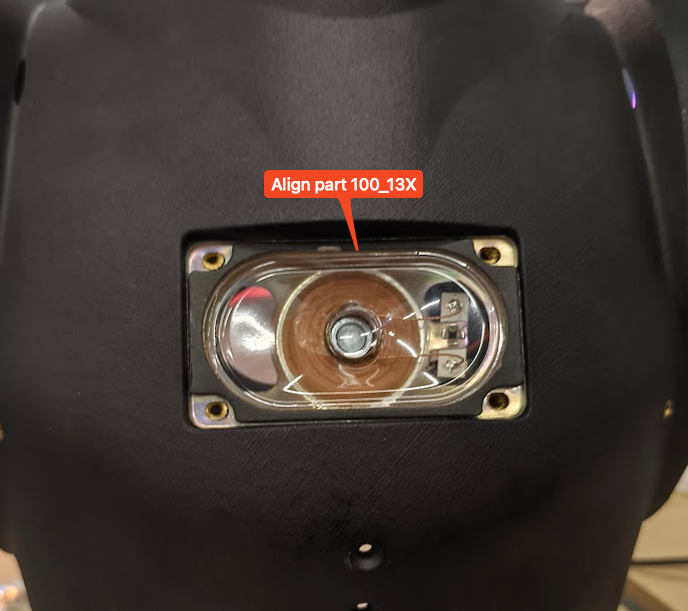

Take part and align it with the rectangular hole in front of the chest.
Step 6: Install the speaker
1/ 1

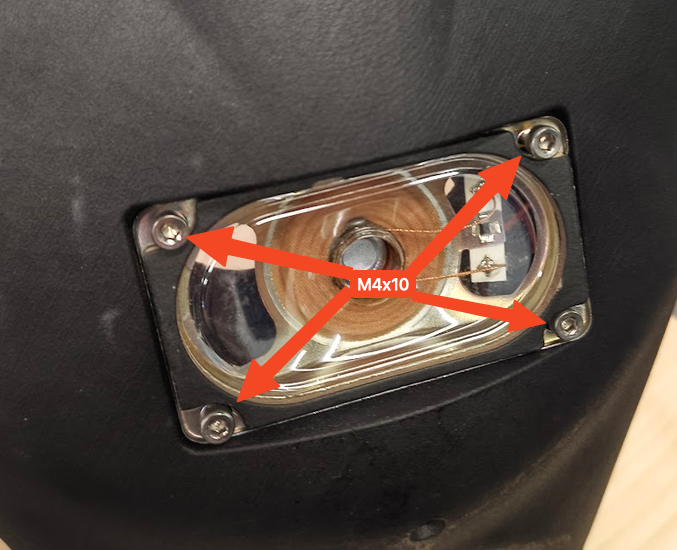

Take 4 - M4x10 Socket bolts and slightly tighten into the 4 corner of part to align the part with Part .
Step 6: Install the speaker
1/ 1
Once it is aligned, tighten all the socket bolts to secure the part together.
