Step 4: Install the Speaker
Seat speaker 100_13X in the front torso opening and secure it with four socket bolts.
Parts needed
| Part | Count |
|---|---|
| Torso assembly from Step 3 | 1 |
| speaker | 1 |
| M4x8 socket bolts | 4 |
| Threadlocker | As needed |
Instructions

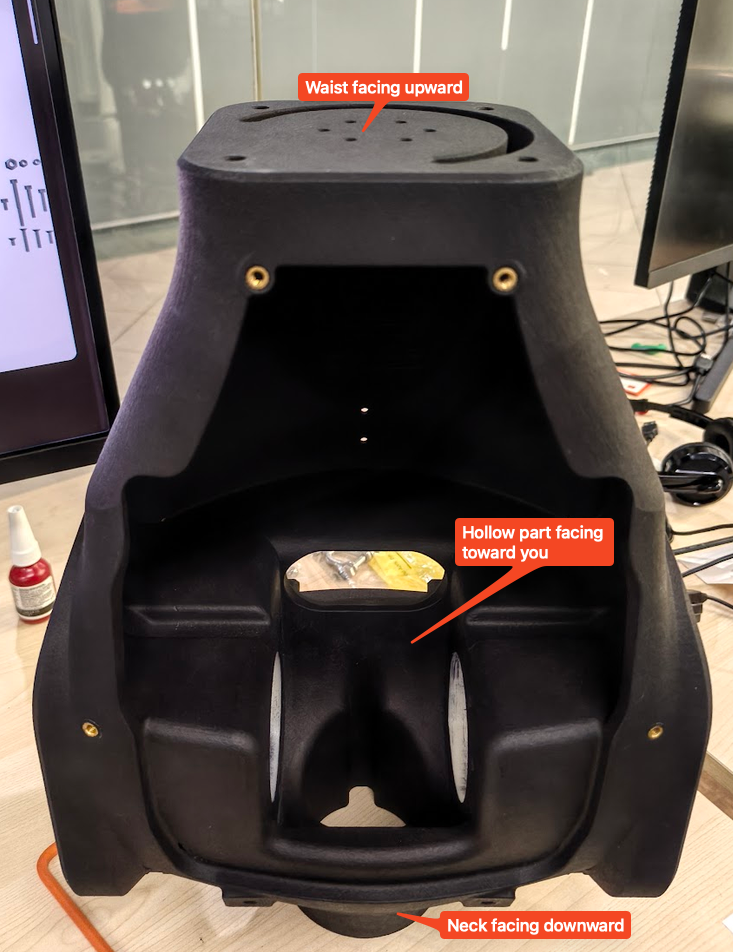

Take part and put it down such that the neck is facing upward toward the ceiling while the waist is pointing downward toward the surface. The hollow part should be facing away from you.
Take part (the speaker) and align it with the rectangular hole in front of the chest. Then, slot the speaker in the hole.
Take 4 - M4x8 Socket bolts and lightly tighten into the 4 corner of part to align the part with Part .
After the parts are aligned:
- remove each of the 4 – M4x8 socket bolts,
- apply threadlocker,
- then tighten them back to secure Part and part together.
