Step 7: Install the battery
Install the battery in parts 100_10C and 100_12C.
Parts needed
| Part | Count |
|---|---|
| 1 | |
| 1 | |
| M4 nylon nuts | 2 |
| M4x8 Socket bolt | 4 |
| Battery | 1 |
Instructions

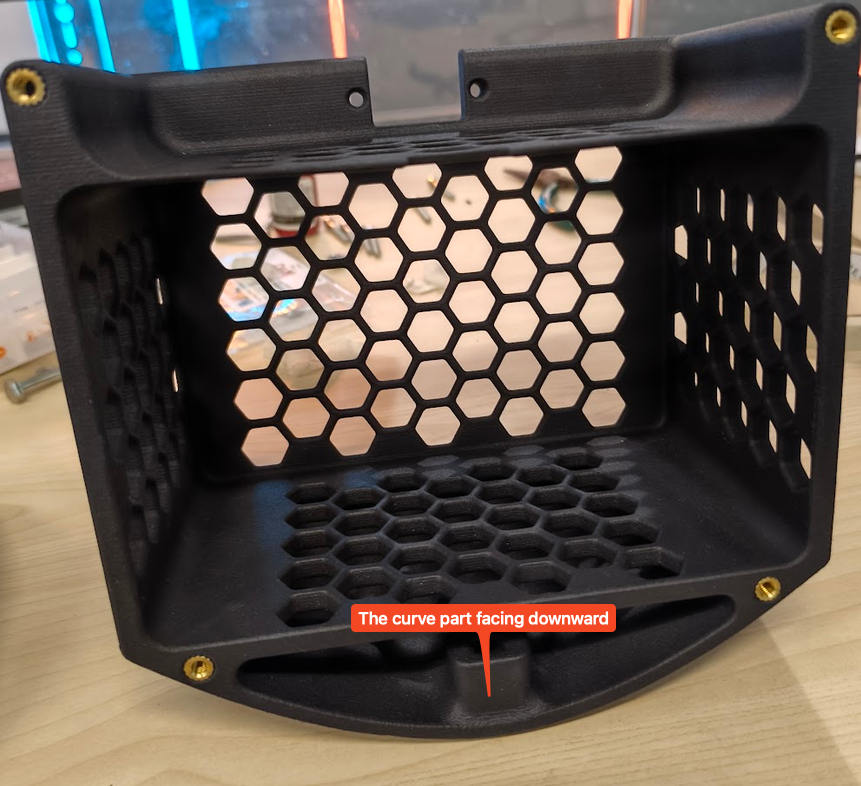

Take part and and put it such that the curve part is laying on the surface. It will feel a bit wobbly.
Locate the two insert through the curved gap at the bottoms.

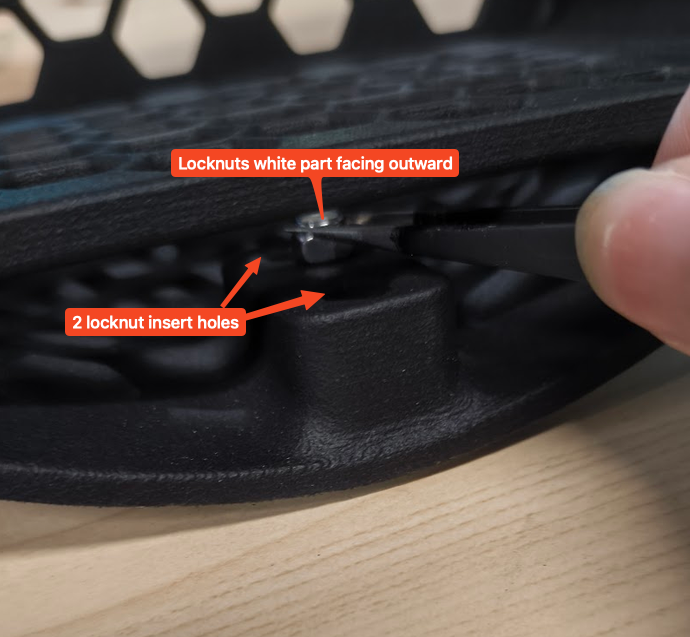

Take 2 - M4 nylon nuts and insert it into the slots. Make sure that the white part of the nylon insert locknuts is facing outward and not inward towards the holes.

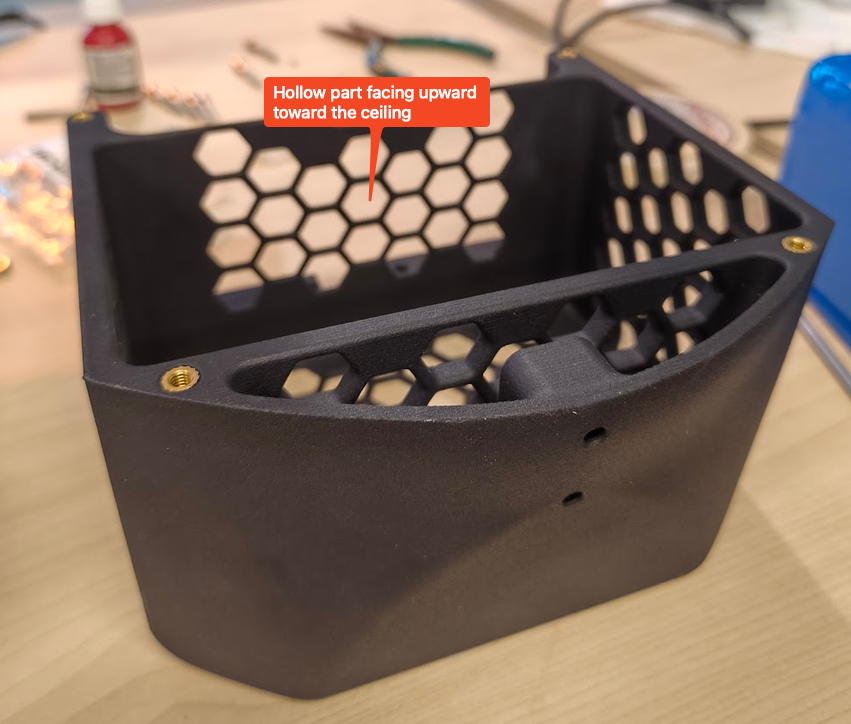

Lay the part down flat slowly such that the hollow portion is pointing upward toward the ceiling.

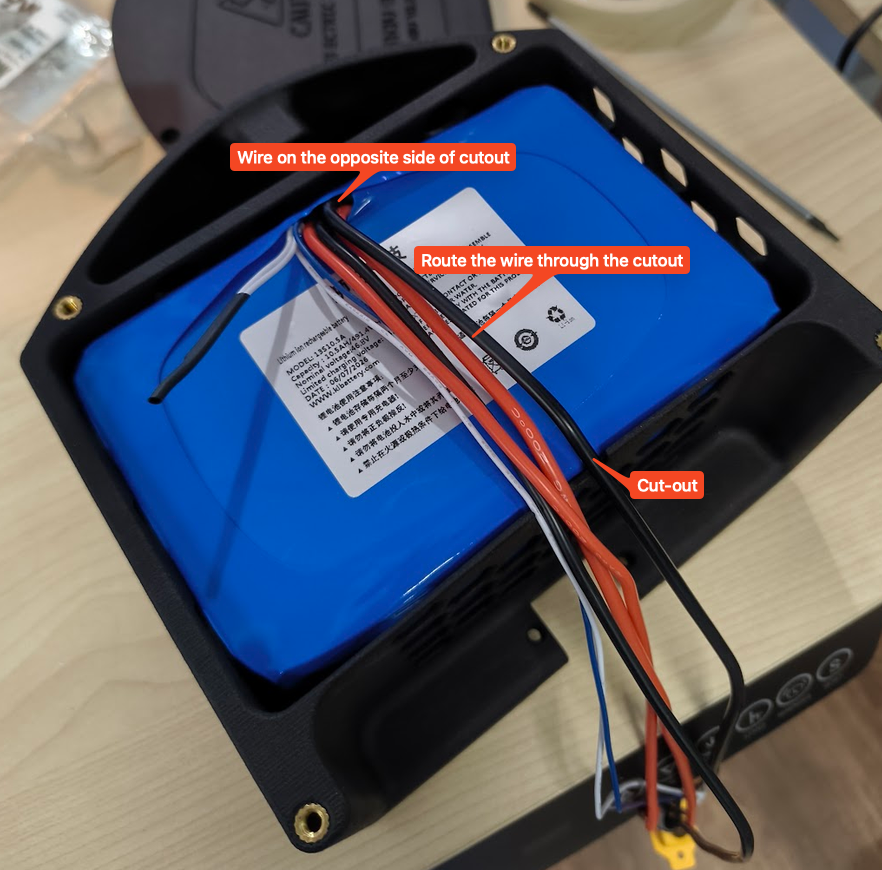

Take the battery and and slowly lower it into the hollow of part , the wire should be on the opposite side of the wire cut out on part . Route the battery wire to the front and put it at the cut out.

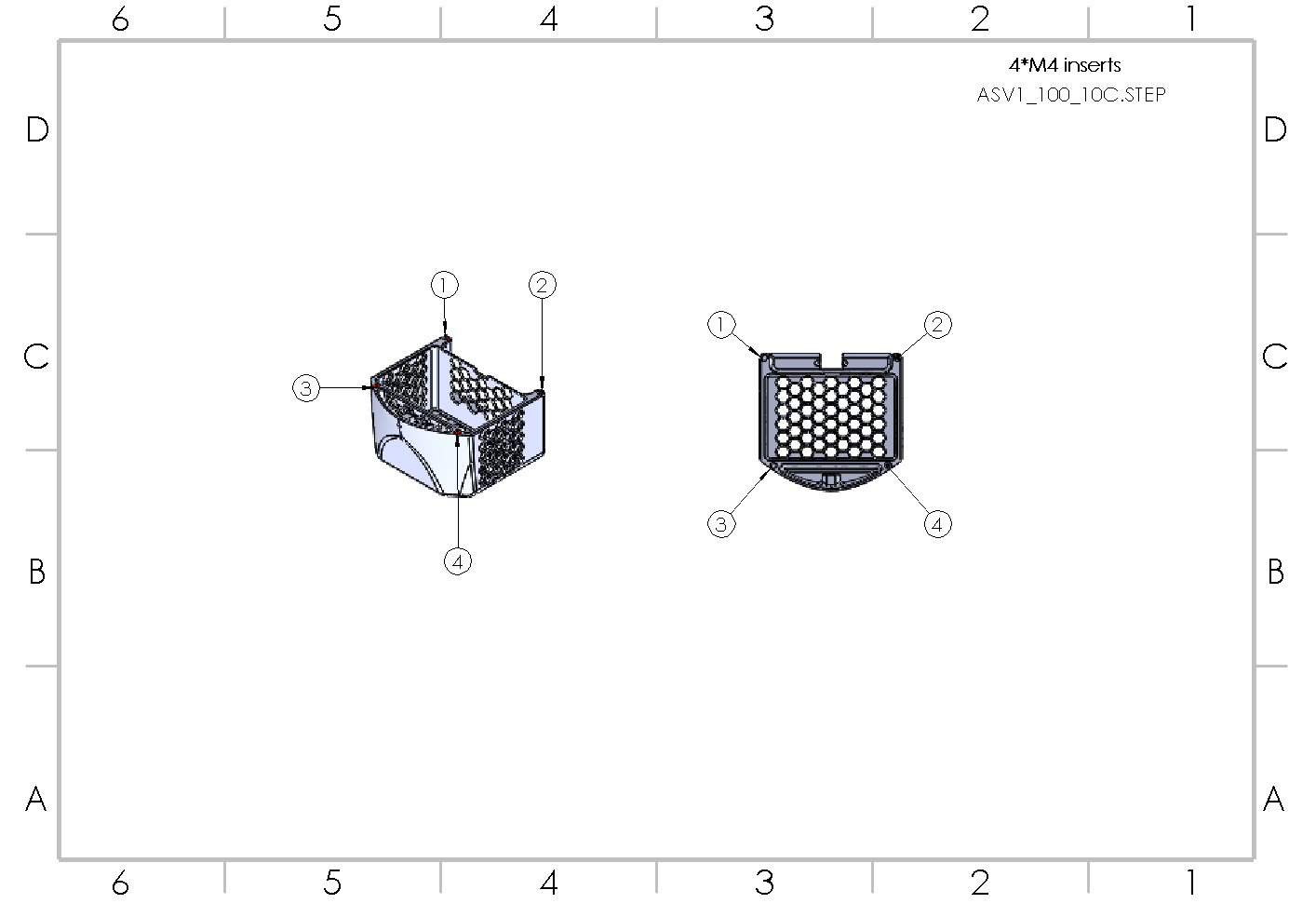

Take part and align it with part such that all the holes on part and align with the threaded insert on part . Careful not to squeeze the wire.

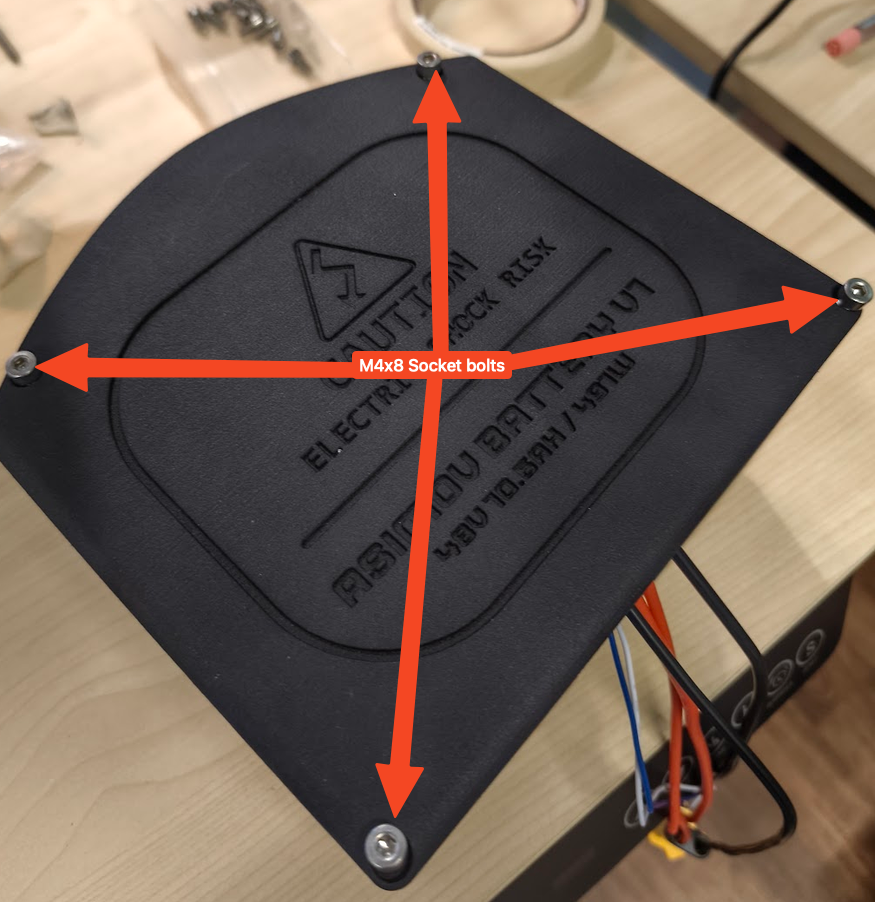

Take 4 - M4x8 Socket bolt and tighten it into each of the four holes to secure part and part together.
