Step 12: Install the Elbow Motor
Connect the XT30 cable and seat motor ID 16 in Part 300_15C.
Parts needed
| Part | Count |
|---|---|
| EC-A4310-P2-36 (ID 16) | 1 |
| Single-ended XT30 (2+2) | 1 |
| 1 |
Instructions
Take motor EC-A4310-P2-36 (ID 16) and a single-ended XT30 (2+2) cable and connect the cable to one of the port on the motor.

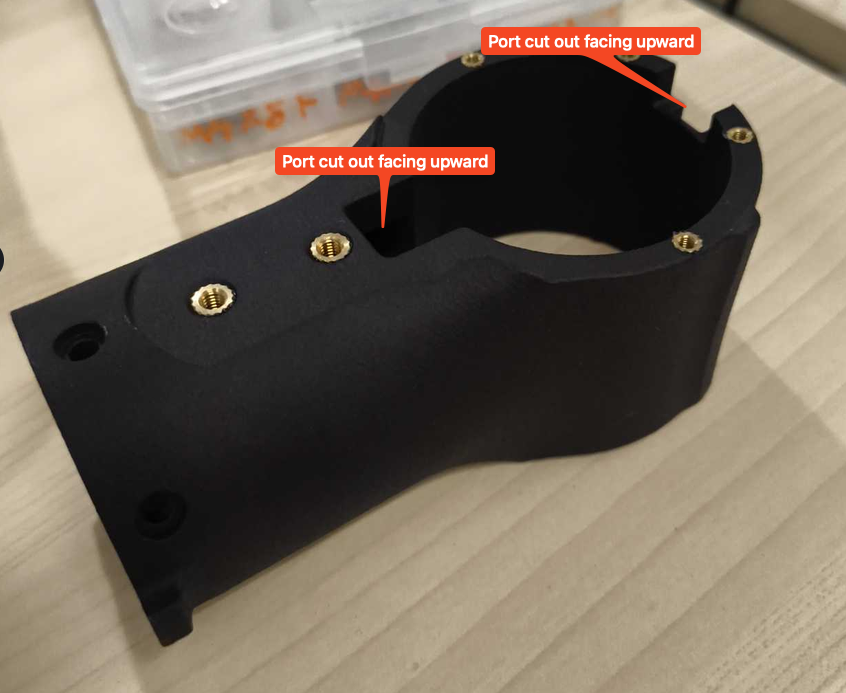

Take part and lay it flat on the surface. Make sure that the port cut out and the insert is facing upward toward the ceiling.

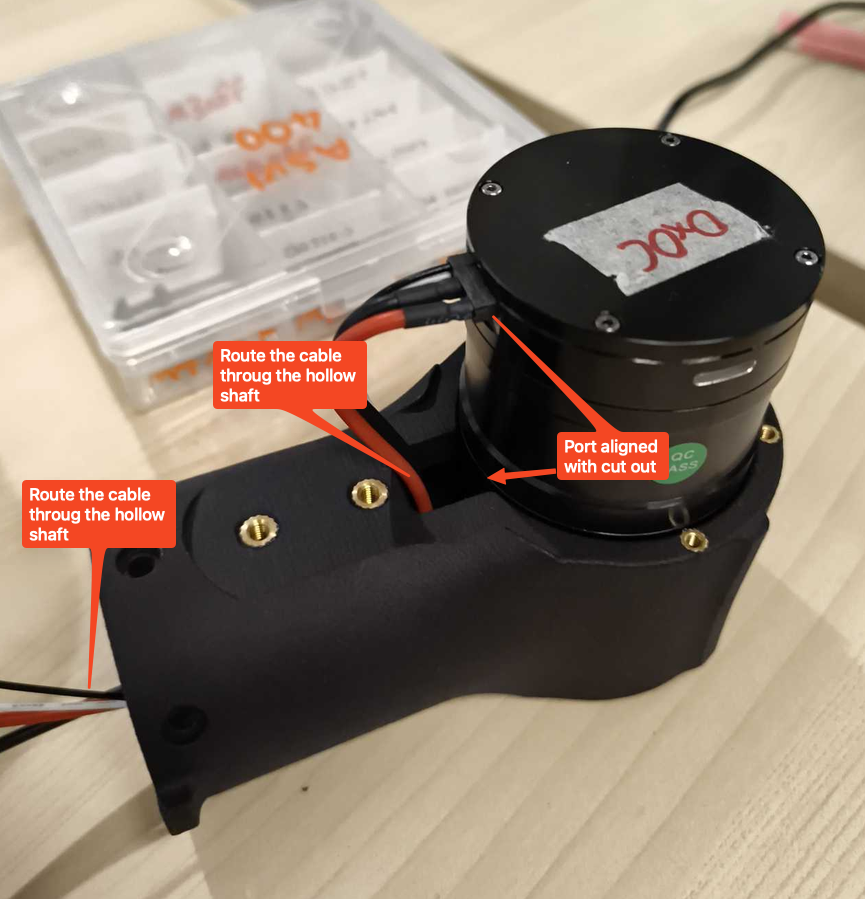

Take the EC-A4310-P2-36 (ID 16) and the cable you just connected and pass the wire through the hollow part, at the same time make sure the motor port is aligned with the port cutout.

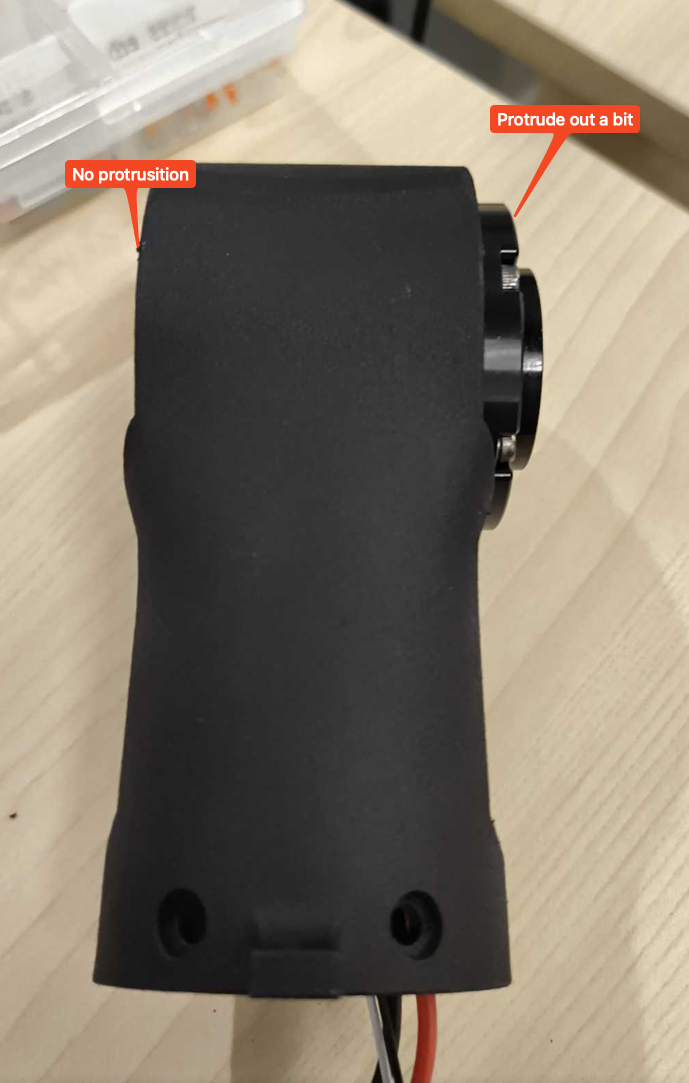

Flip the part the to the side so that the motor side is paralle with the flat surface. Push the motor in until it is flat aligned with the surface, the motor shaft should protrude outside of the shell a bit, but the bottom should be flat against Part surface.
