Electrical
Asimov 1 battery, power, control electronics, actuator communications, sensors, and media hardware.

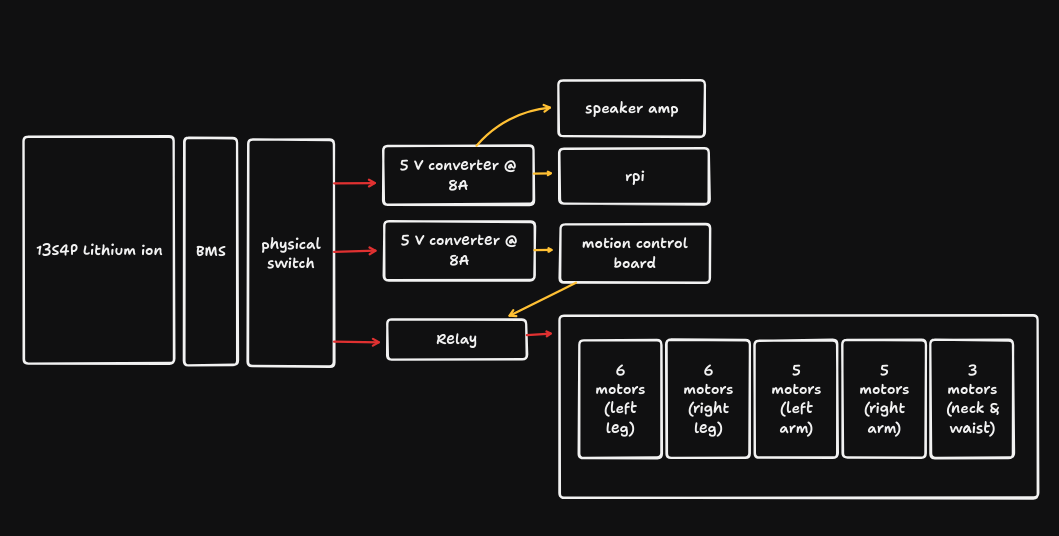

Overall Architecture
| Subsystem | Role |
|---|---|
| RPU (Radxa CM5 and custom carrier board) | Runs locomotion, motor control, IMU feedback, battery management, and actuator CAN communications |
| Raspberry Pi 5 | Connects camera, microphone, speaker, networking, and edge services |
| Actuator network | Carries battery power and CAN communication through the robot |
| Sensors and media | Provide inertial state, video, audio input, and audio output |
| Battery system | Supplies energy for actuators, compute, sensing, and peripherals |
RPU (Robot Processing Unit)
The RPU combines a Radxa CM5 compute module with a custom carrier board designed specifically for robot control. It handles high-frequency, low-latency workloads that need close-to-metal performance, including running the locomotion policy, controlling the motors, reading IMU telemetry for the policy feedback loop, monitoring the battery-management system, and maintaining the low-level robot state.
The custom carrier board is also responsible for communication with all 25 actuators. Its CAN interfaces send motor commands and receive joint position, velocity, current, temperature, and fault data from the distributed actuator network.
The RPU and Raspberry Pi 5 communicate over a direct Ethernet connection. Keeping media, external networking, and application services on the Raspberry Pi prevents those workloads from interfering with the RPU's time-sensitive control loop.
Actuator Power and Communication
The published system specification identifies five CAN interfaces at 1 Mbps and one at 500 kbps. The actuator network distributes battery power and CAN communication from the body outward through six physical branches.
Daisy-Chain Architecture
Each actuator has two electrically equivalent XT30 (2+2) ports. Each port carries BATT+, BATT-, CAN_H, and CAN_L, allowing power and communication to continue from one actuator to the next.
The six branches enter the body at left hip pitch, right hip pitch, waist yaw, left shoulder pitch, right shoulder pitch, and neck yaw. Within each branch, actuators form a chain from the central body toward the distal joint.
For example, each leg follows:
hip pitch -> hip roll -> hip yaw -> knee -> ankle A -> ankle B
This topology keeps the number of body-entry connections small while allowing each limb to carry power and CAN through the same connector system.
Wire-to-motor visualization coming soon
An interactive visualization will be added here to show how every wire connects through the actuator network.
CAN mapping under confirmation
The public sources do not yet reconcile the six physical branch-entry paths with the controller specification of five 1 Mbps CAN interfaces plus one 500 kbps interface. Treat the physical topology and controller-interface count as separate facts until the release-specific bus assignment is confirmed.
Sensors and Media Hardware
| Device | Current specification | Primary role |
|---|---|---|
| IMU | 6-axis | Body orientation and angular-motion sensing |
| Camera | 2 MP monocular camera | Robot video and visual input |
| Microphone | Stereo microphone array | Audio capture |
| Speaker | 10 W, 4 ohm | Robot audio output |
The Raspberry Pi 5 is the currently supported edge computer for camera, audio, networking, and edge services. Other Raspberry Pi models are not validated for Asimov 1.
Battery
The current pack design is a 13-series, 4-parallel lithium-ion battery.
| Parameter | Current specification |
|---|---|
| Battery type | Lithium-ion |
| Cell model | INR18650 |
| Pack configuration | 13S4P |
| Nominal voltage | 46.8 V |
| Typical capacity | 10.5 Ah |
| Minimum capacity | 10.05 Ah |
| Energy | 491.4 Wh |
| Charge voltage | 54.6 V |
| Discharge cut-off | 35.75 V |
| Standard charge current | 2.1 A |
| Maximum charge current | 15 A |
| Standard discharge current | 2.1 A |
| Maximum discharge current | 30 A |
| Storage voltage | 45.5 to 48.1 V |
| Battery mass | Approximately 2 kg |
Operating Temperature
| Condition | Temperature range |
|---|---|
| Charging | 0°C to 45°C |
| Discharging | -20°C to 60°C |
| Storage, less than 1 month | -10°C to 45°C |
| Long-term storage, less than 3 months | -10°C to 35°C |
Protection Circuit
The pack includes a protection circuit module for over-charge, over-discharge, and over-current protection.
| Protection item | Threshold |
|---|---|
| Over-charge protection | 4.25 V per cell |
| Over-discharge protection | 2.75 V per cell |
| Over-current protection | 30 A or less |
