Assembly Preparation

Mechanical Preparation

Tools, hardware, and part preparation required before assembly

This section covers the mechanical preparation work that is recommended before full assembly begins.

1. Making Inserts (Optional but recommanded)

You can install all required heat-set inserts before starting the main assembly flow, or follow the insert steps later in the assembly steps for each module.

Use a soldering iron or a suitable heat-insert tool, and complete the insert locations shown below if you want to prepare them in advance before module assembly.

  • install inserts only at the marked locations
  • keep the insert straight while pressing it in
  • avoid overheating the printed part
  • confirm each insert is fully seated before moving on

1. Torso Module Inserts

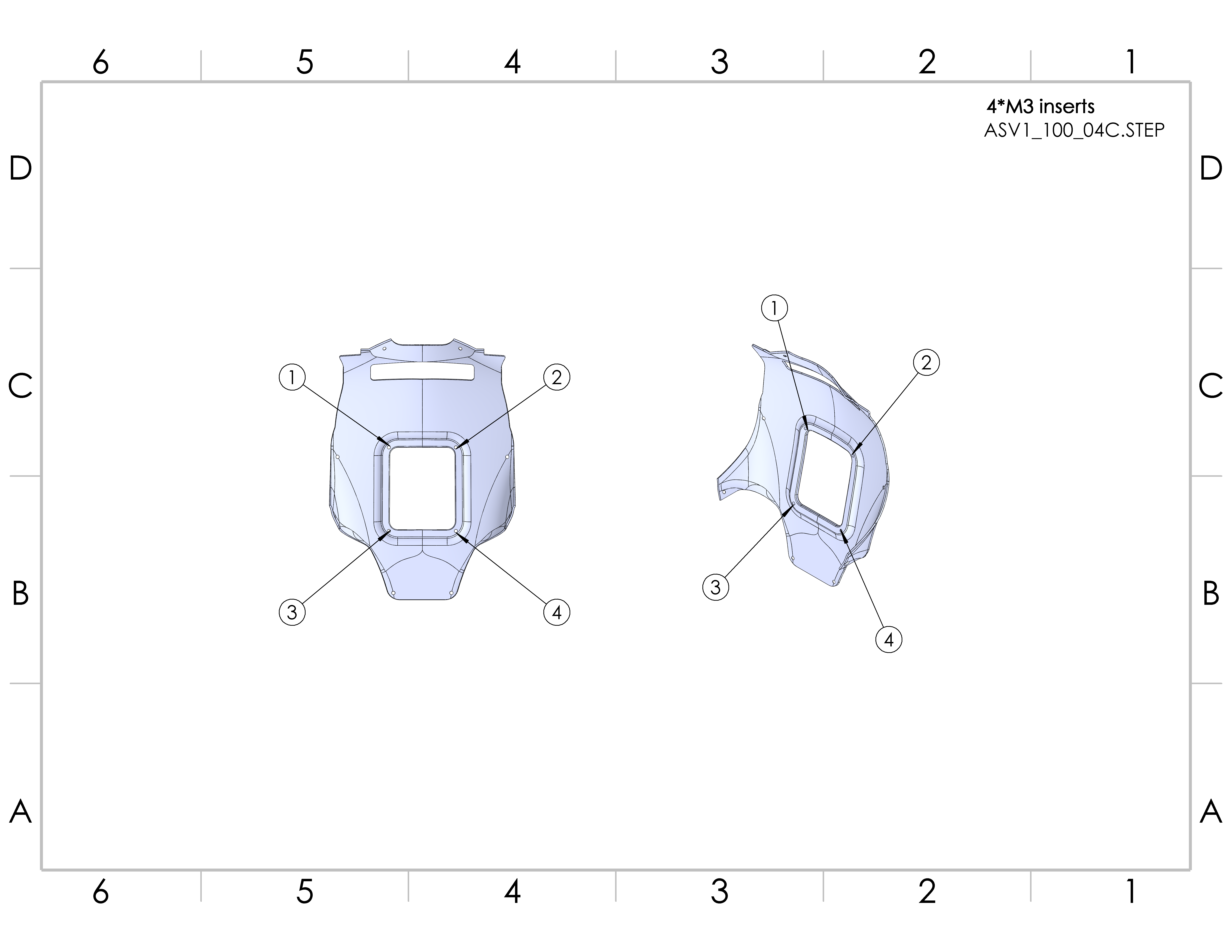

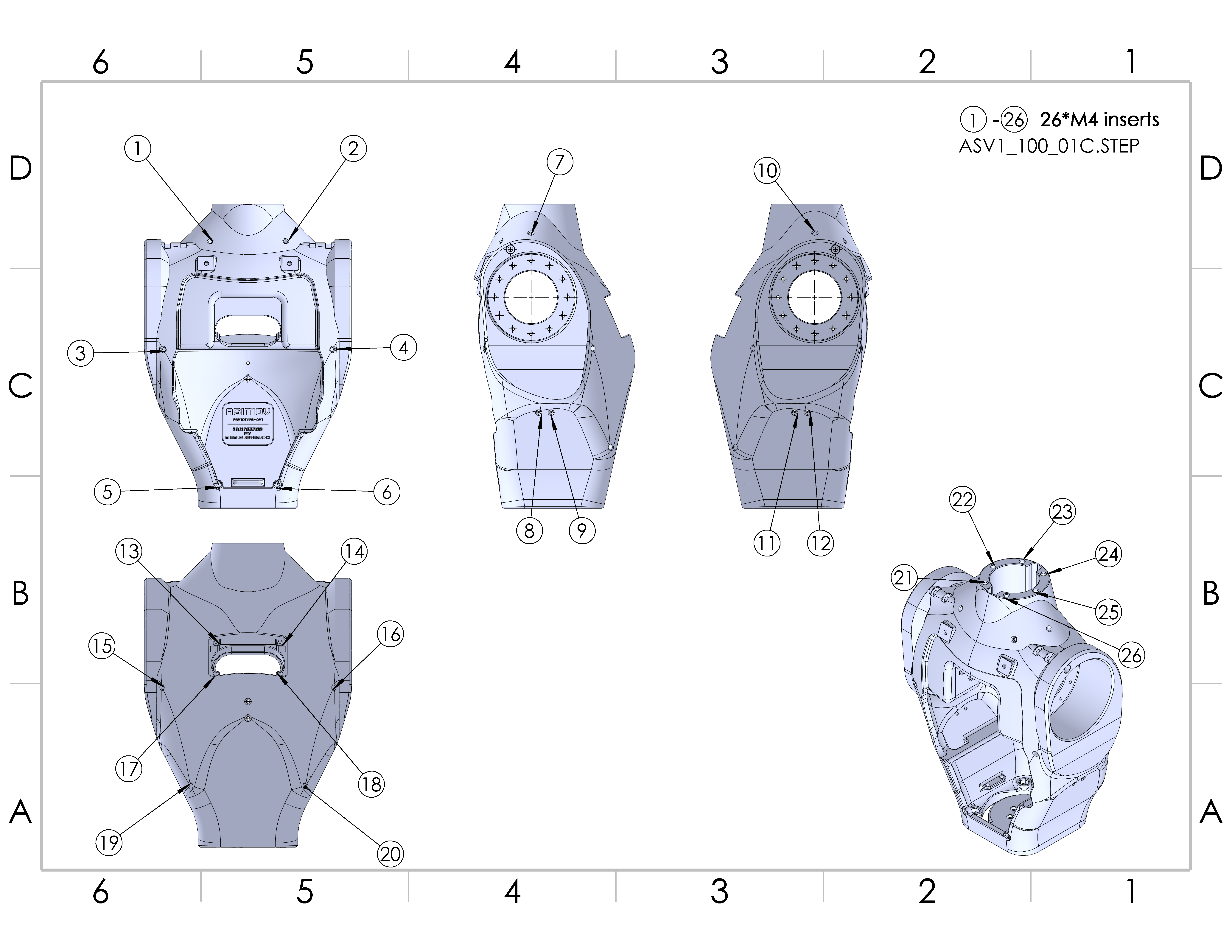

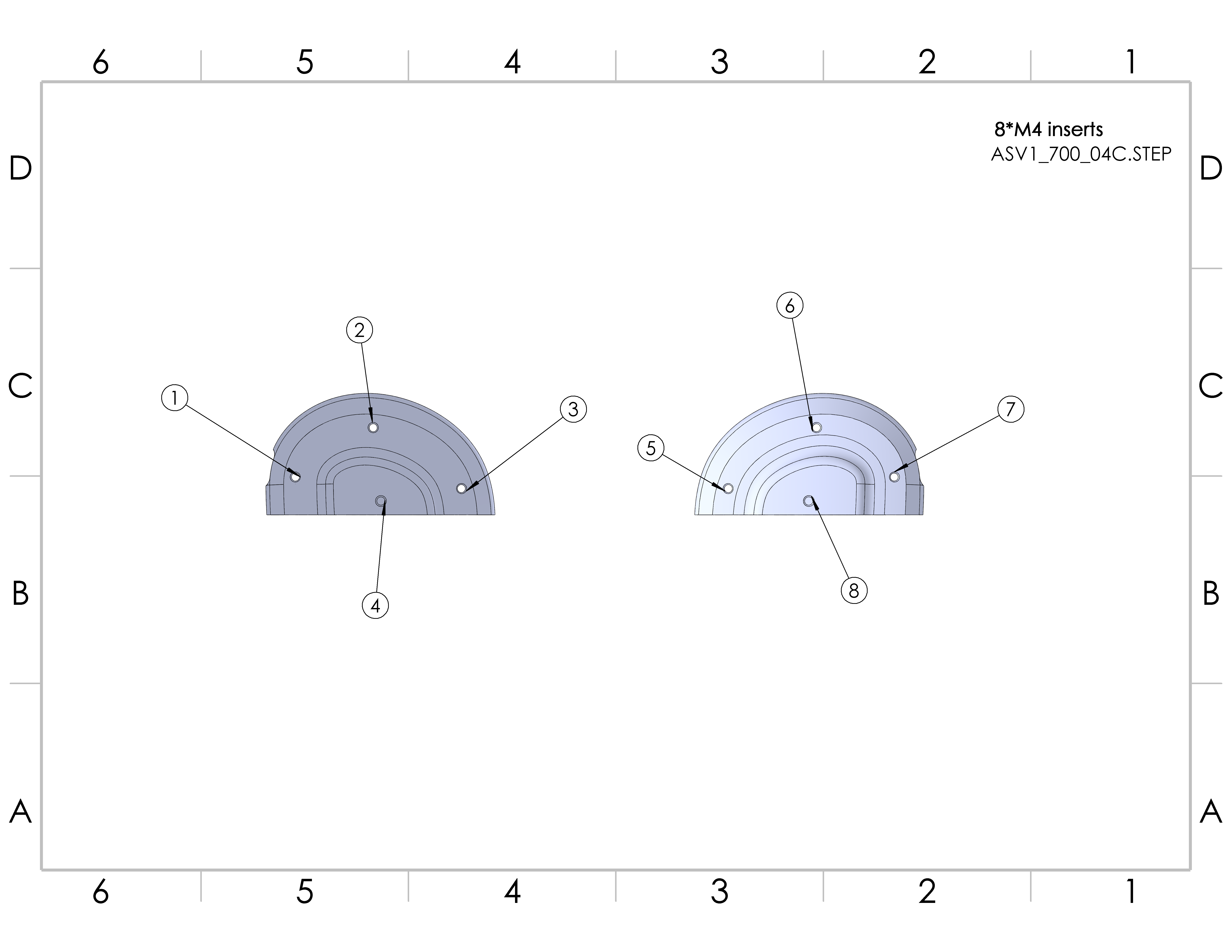

Torso insert preparation 1 Torso insert preparation 2 Torso insert preparation 3

2. Pelvis Module Inserts

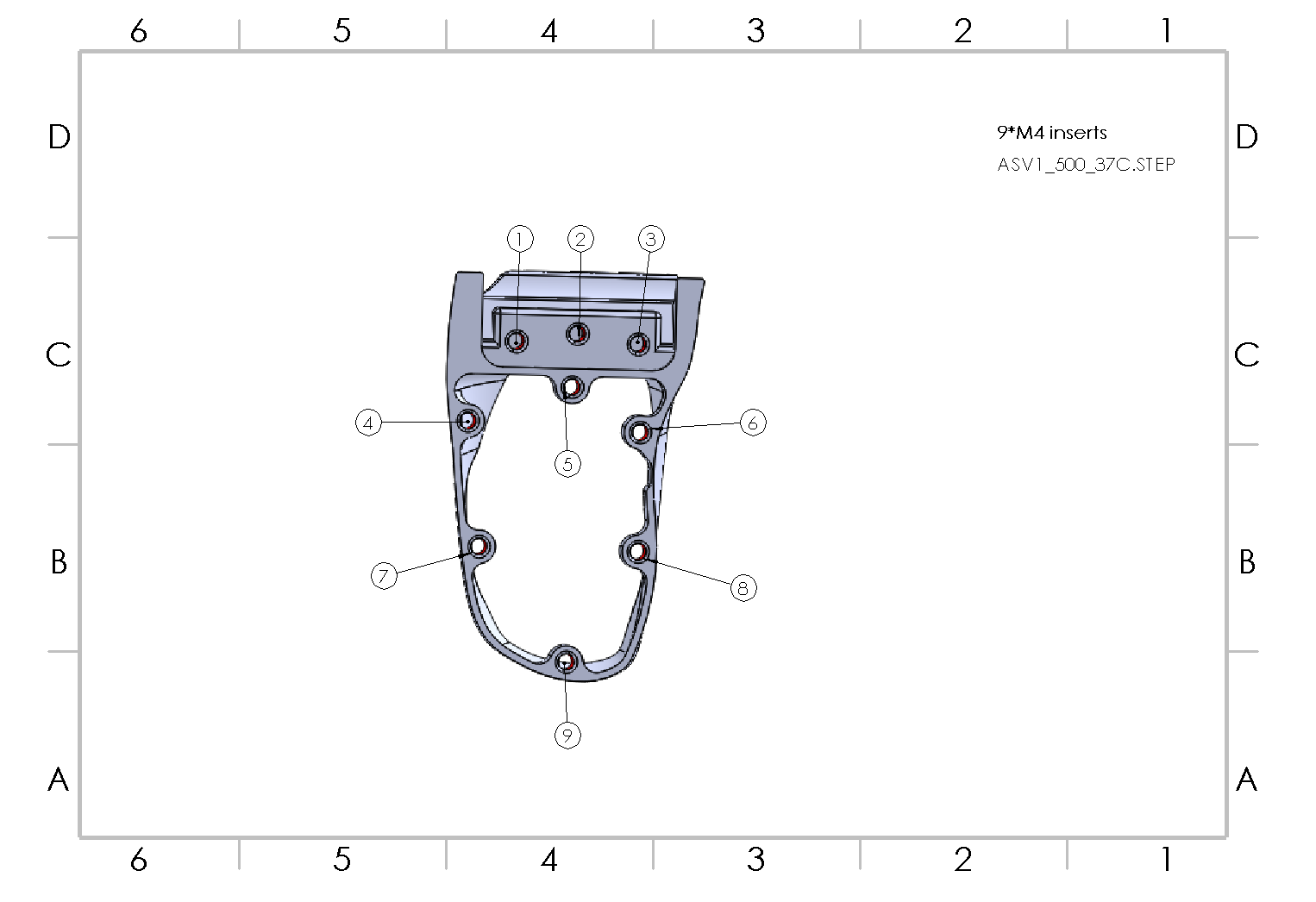

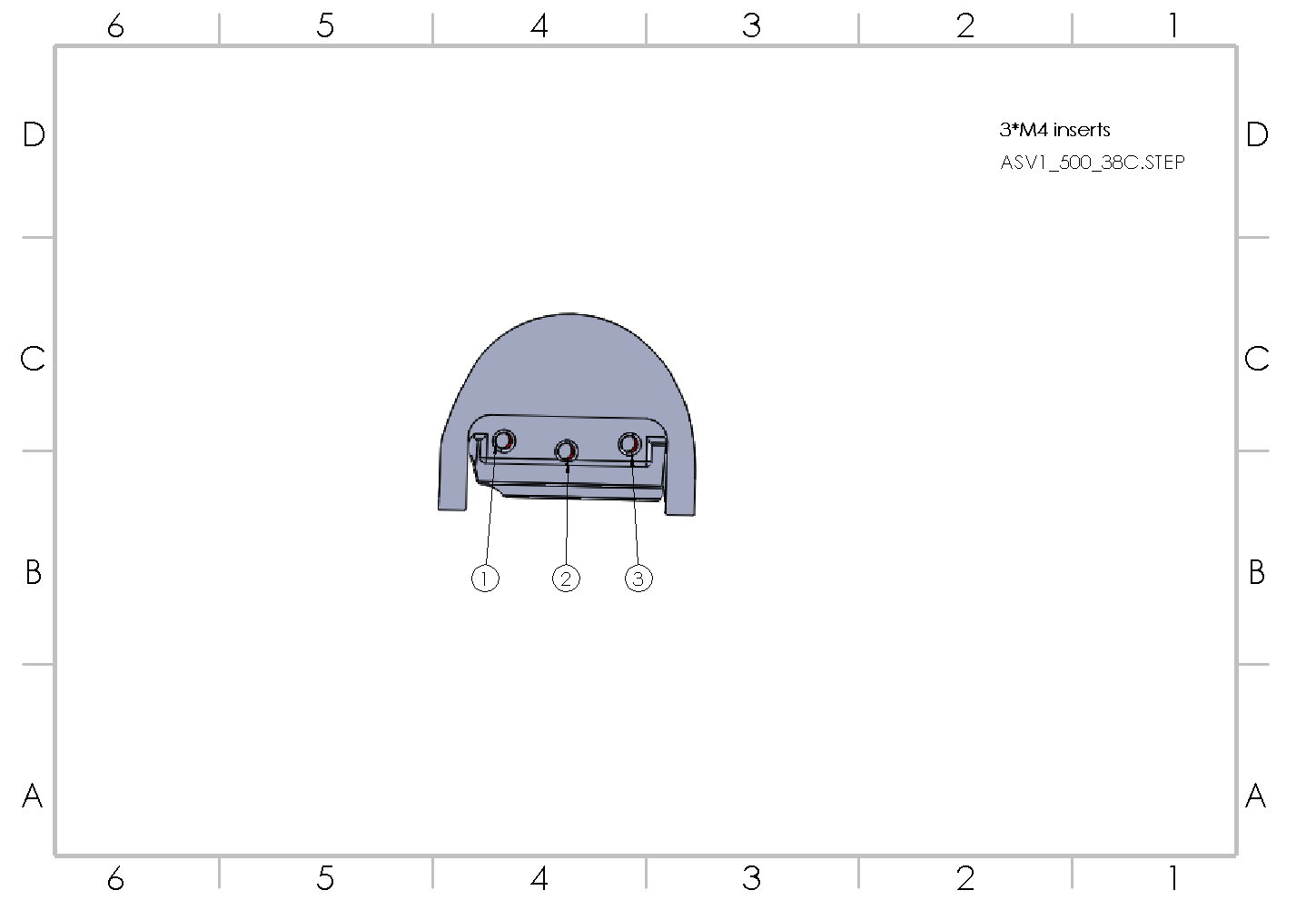

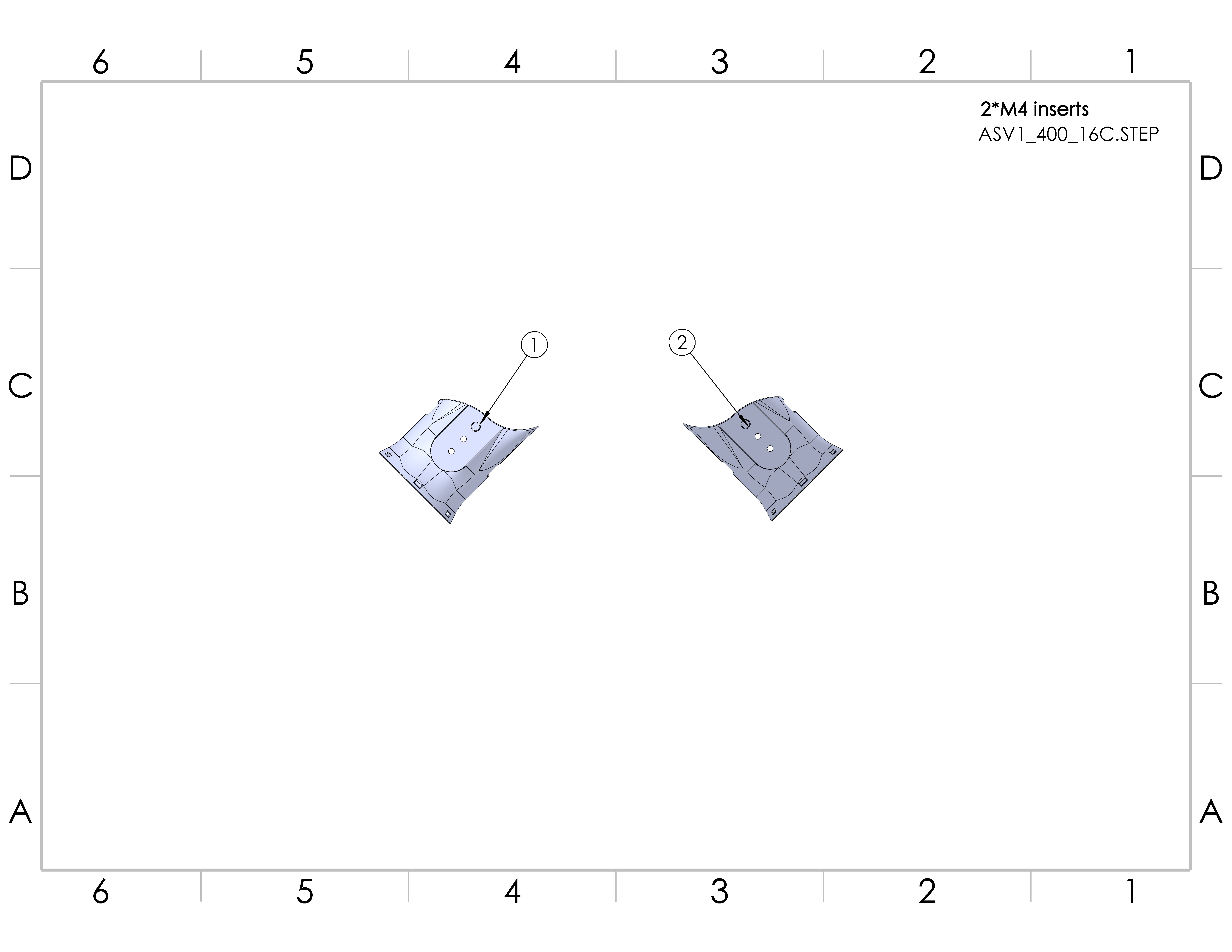

Pelvis insert preparation 1 Pelvis insert preparation 2 Pelvis insert preparation 3

3. left Arms Module Inserts

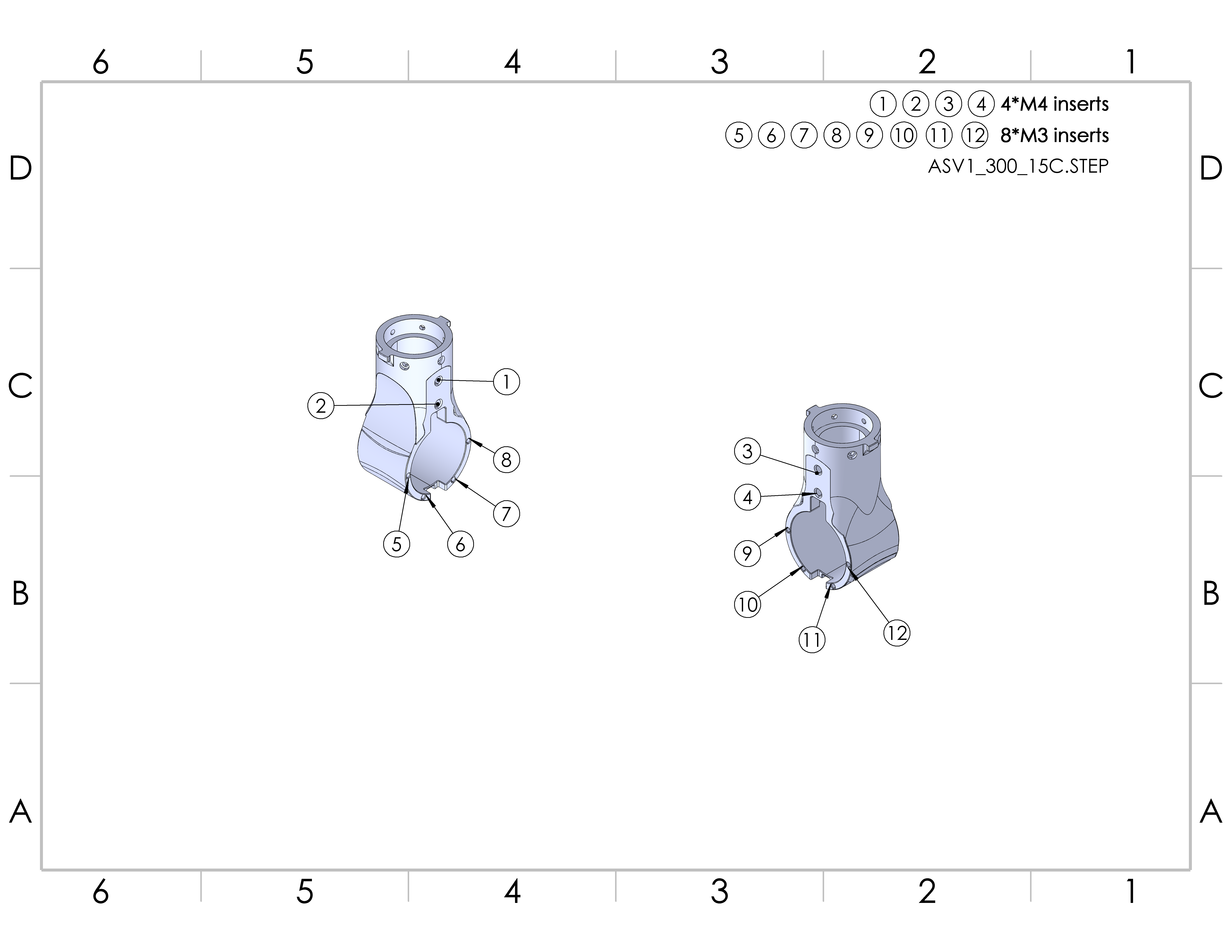

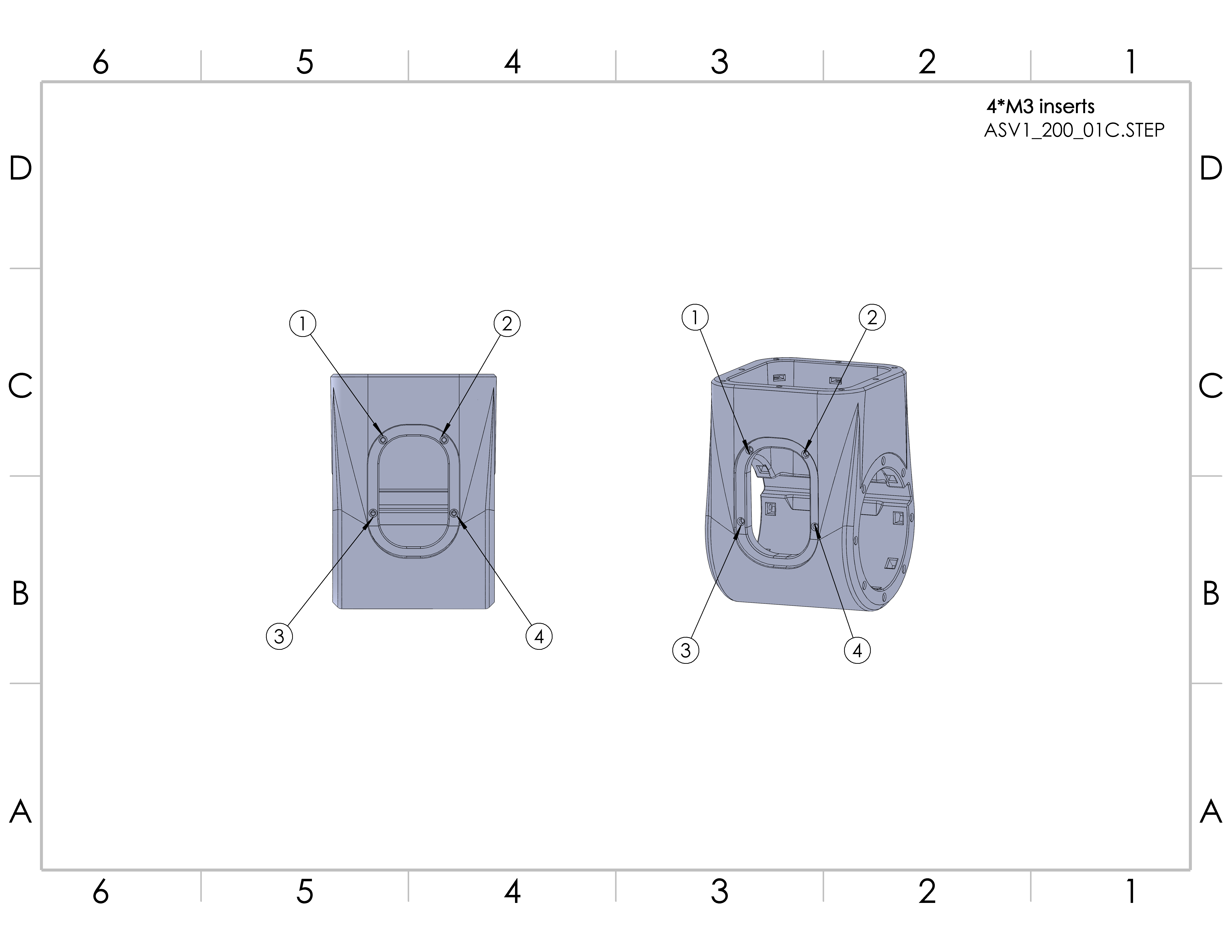

Left arm insert preparation 1 Left arm insert preparation 2

4. right Arms Module Inserts

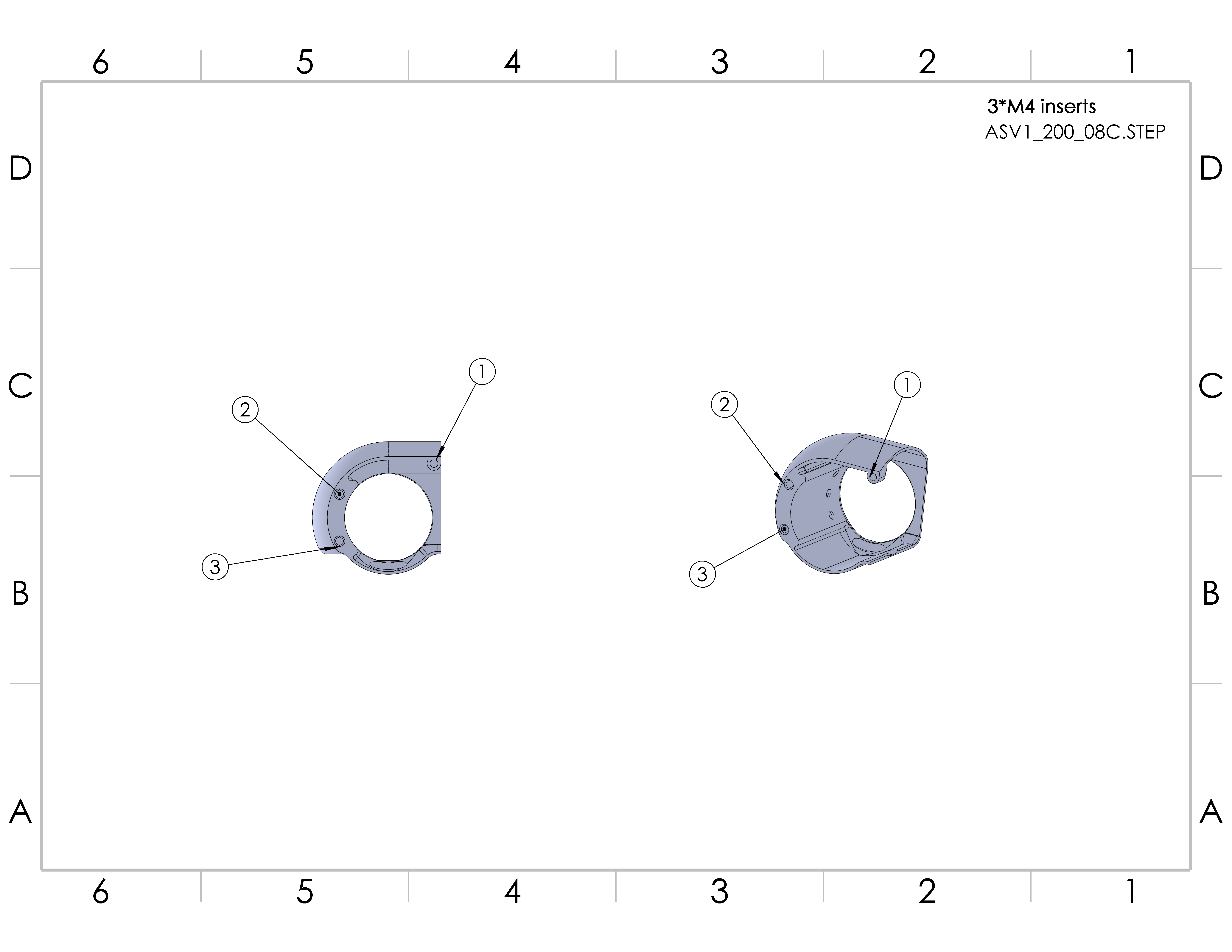

Right arm insert preparation 1 Right arm insert preparation 2

5. left Legs Module Inserts

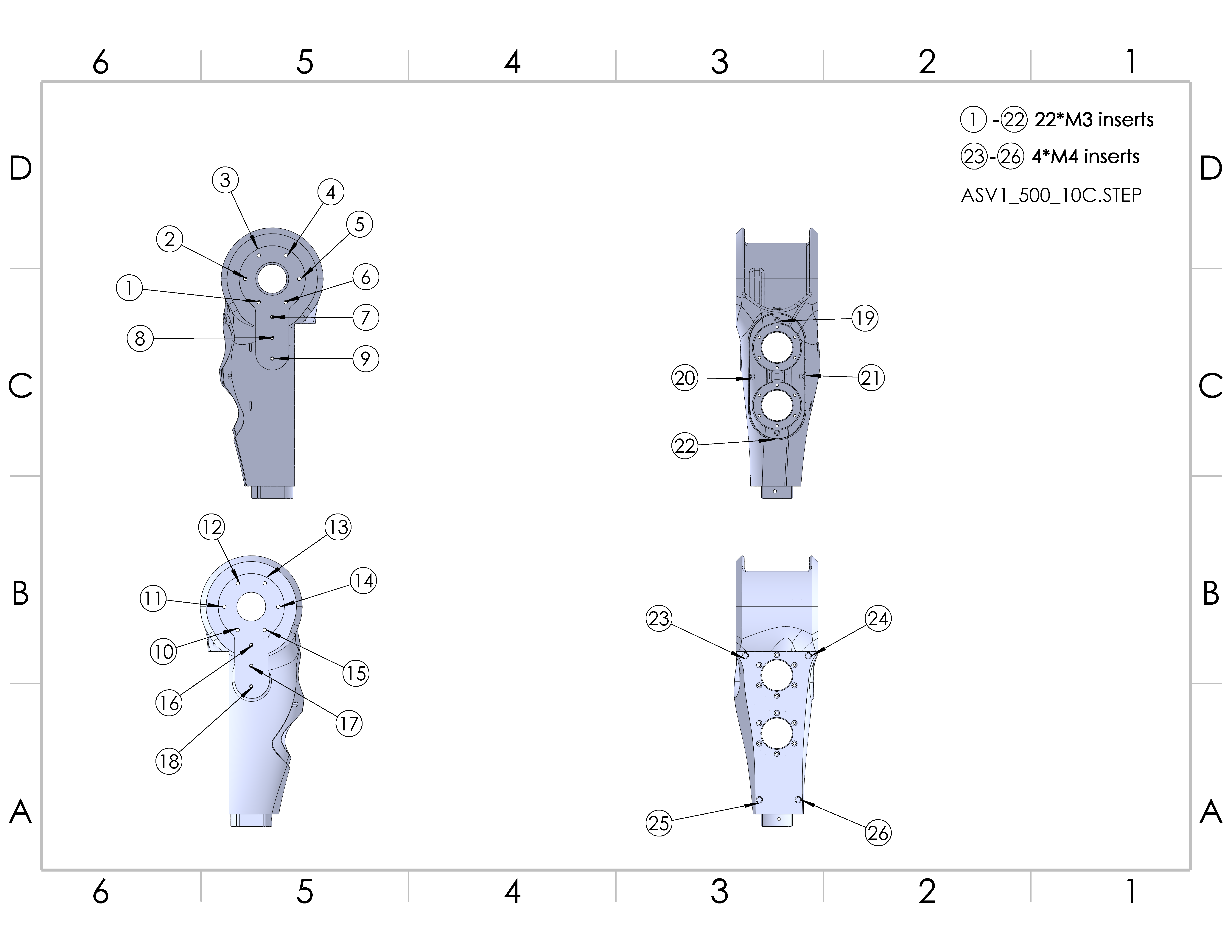

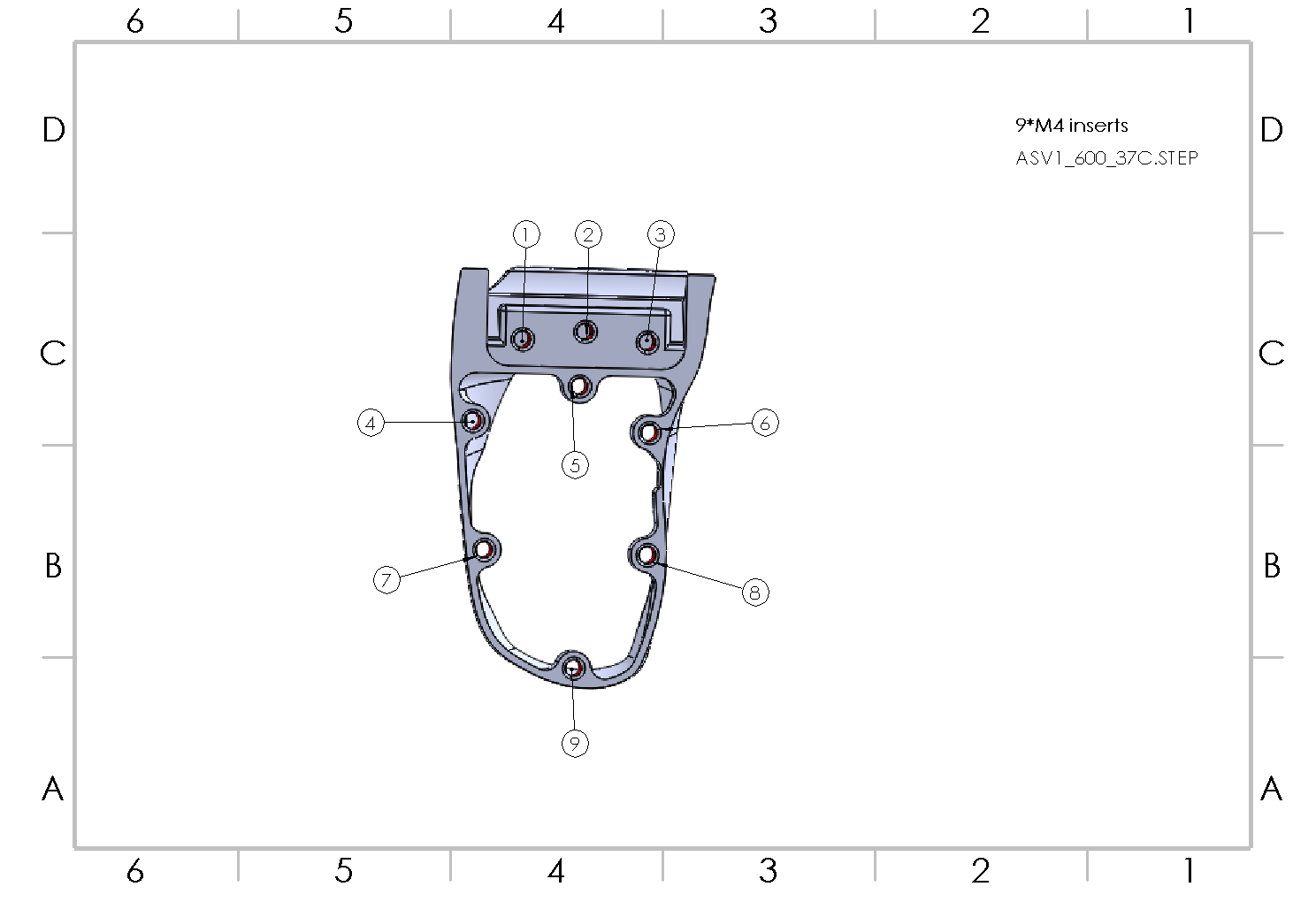

Left leg insert preparation 1 Left leg insert preparation 2 Left leg insert preparation 3 Left leg insert preparation 4

6. right Legs Module Inserts

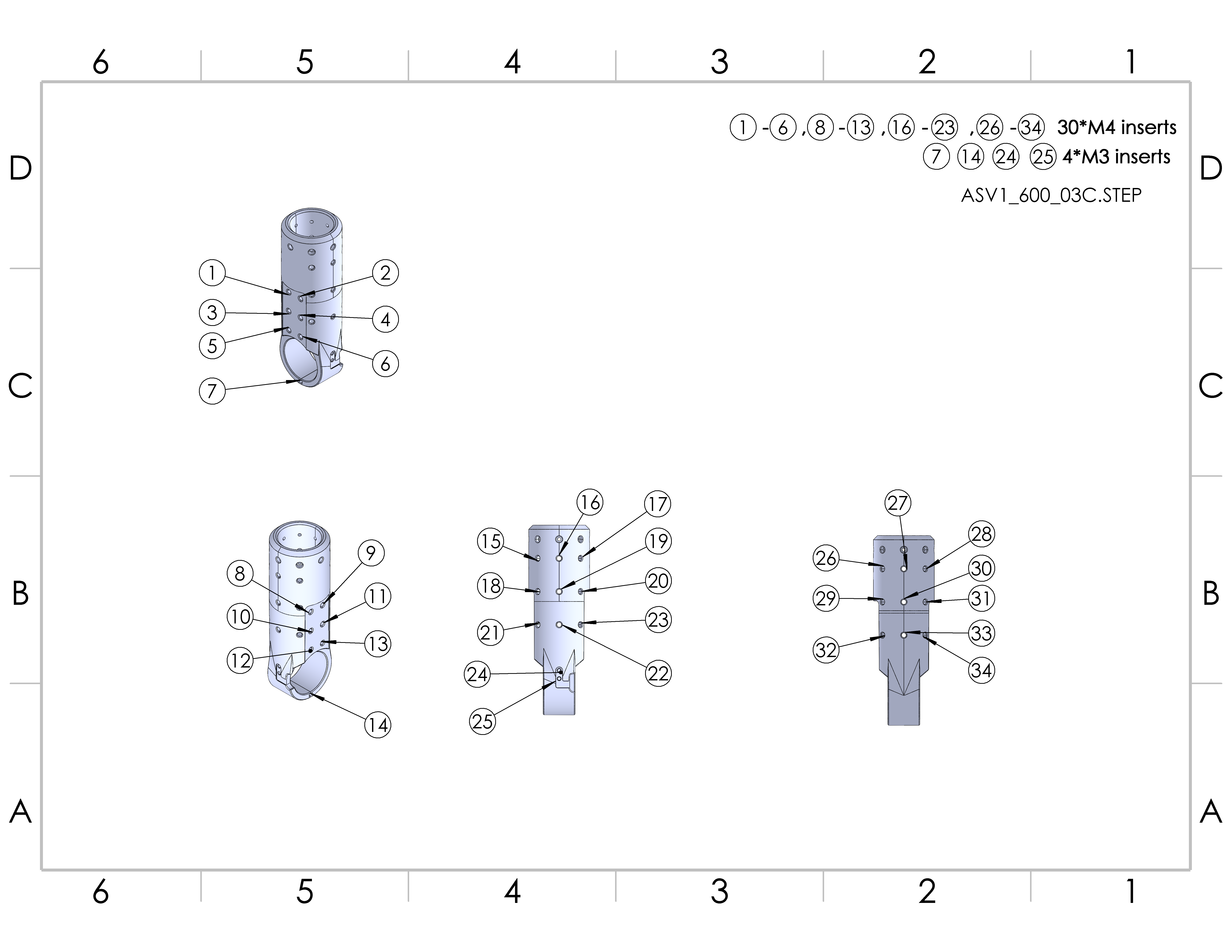

Right leg insert preparation 1 Right leg insert preparation 2 Right leg insert preparation 3 Right leg insert preparation 4

7. Head Module Inserts

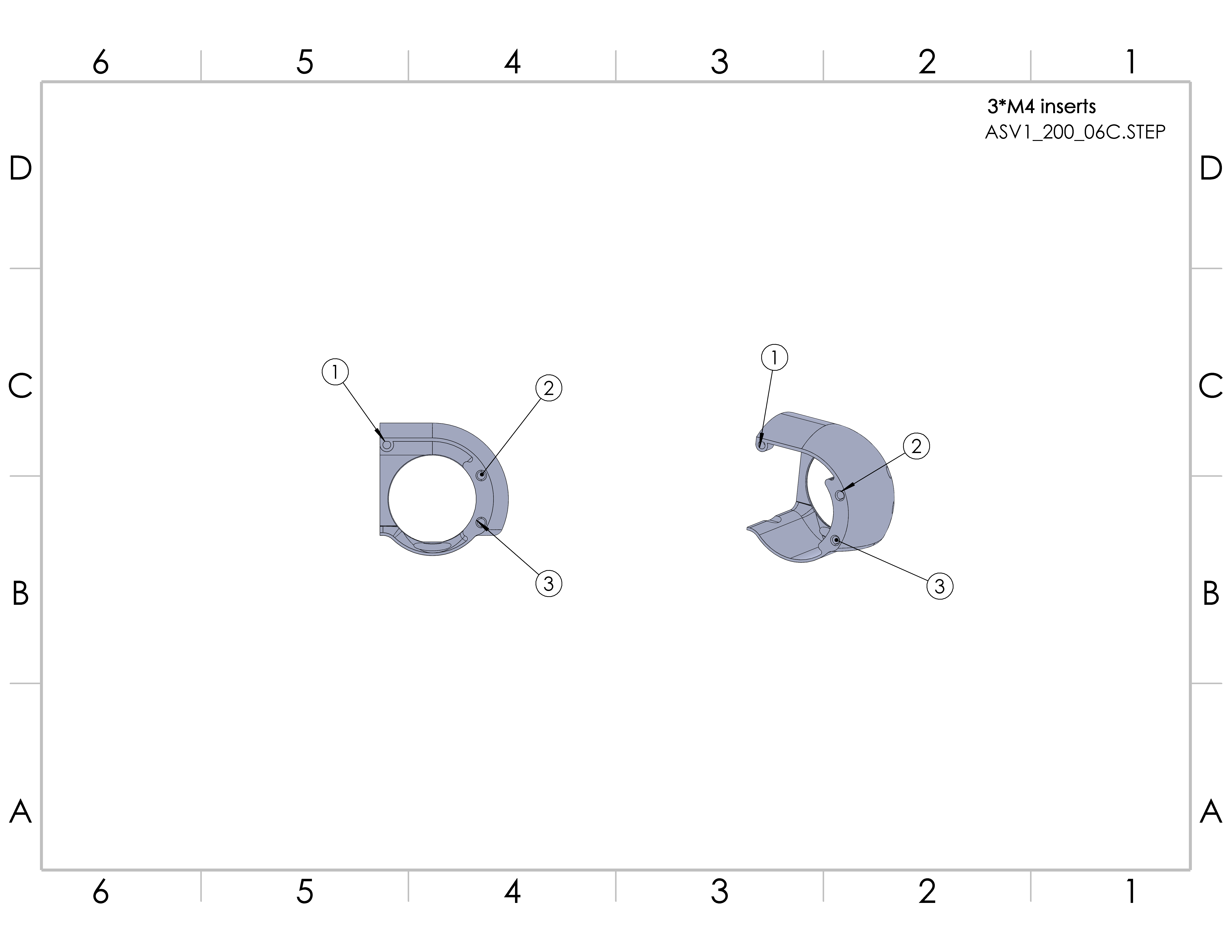

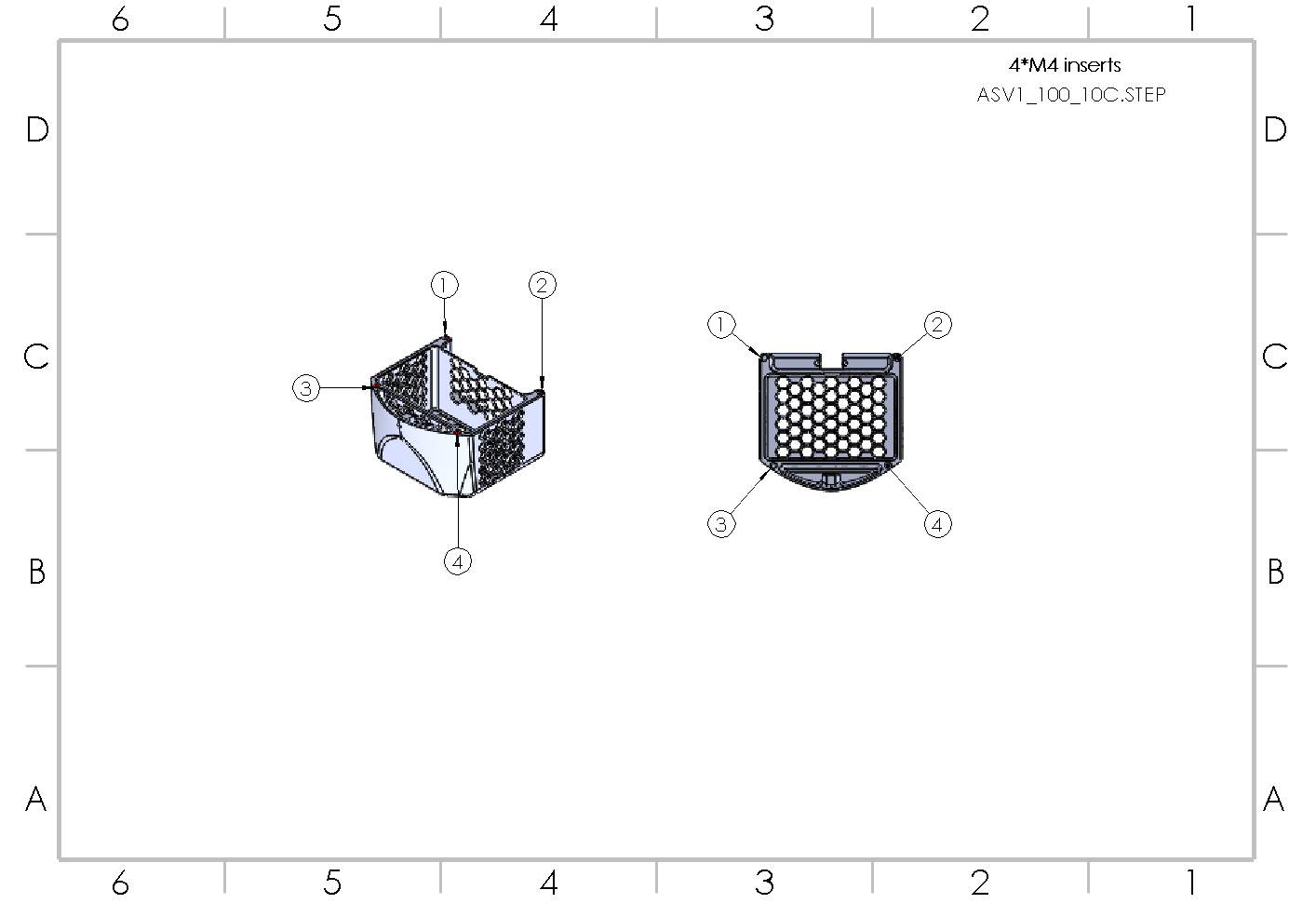

Head insert preparation 1 Head insert preparation 2 Head insert preparation 3
