Troubleshooting
Symptom-first fixes: reach the console, restore the RPU link, find out why the robot stopped, and read its logs.

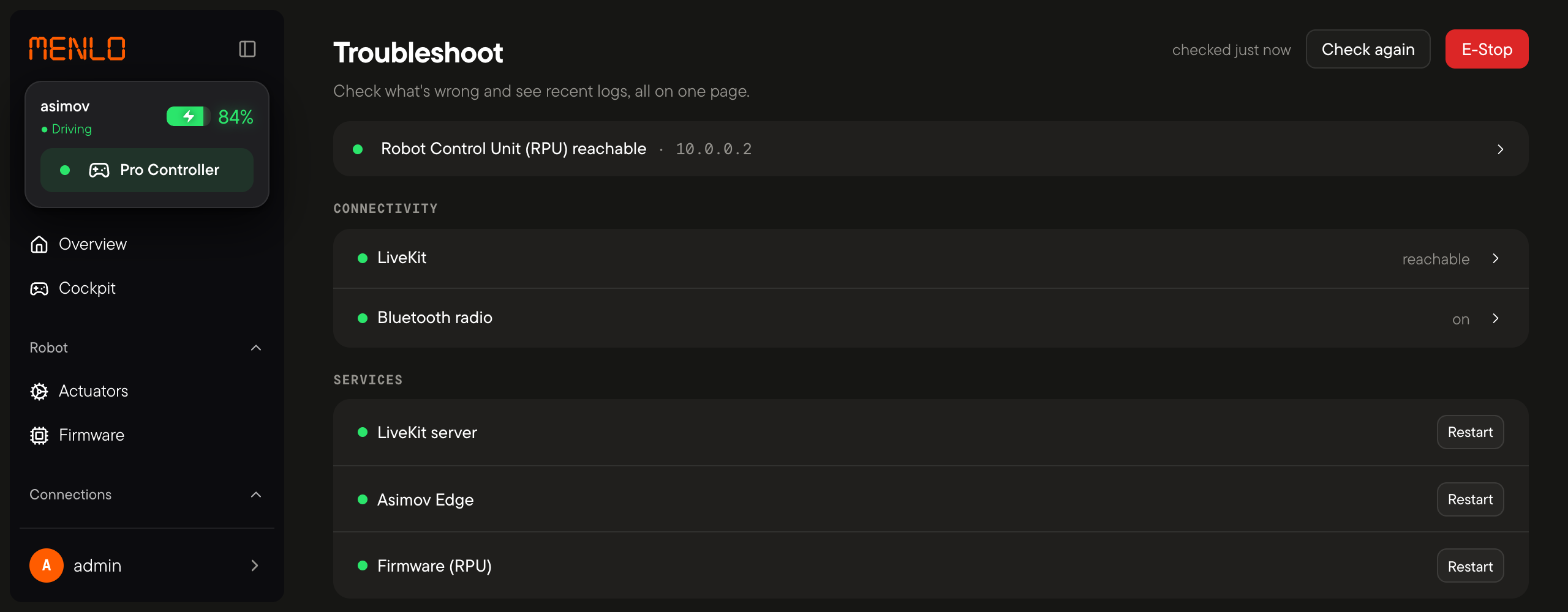

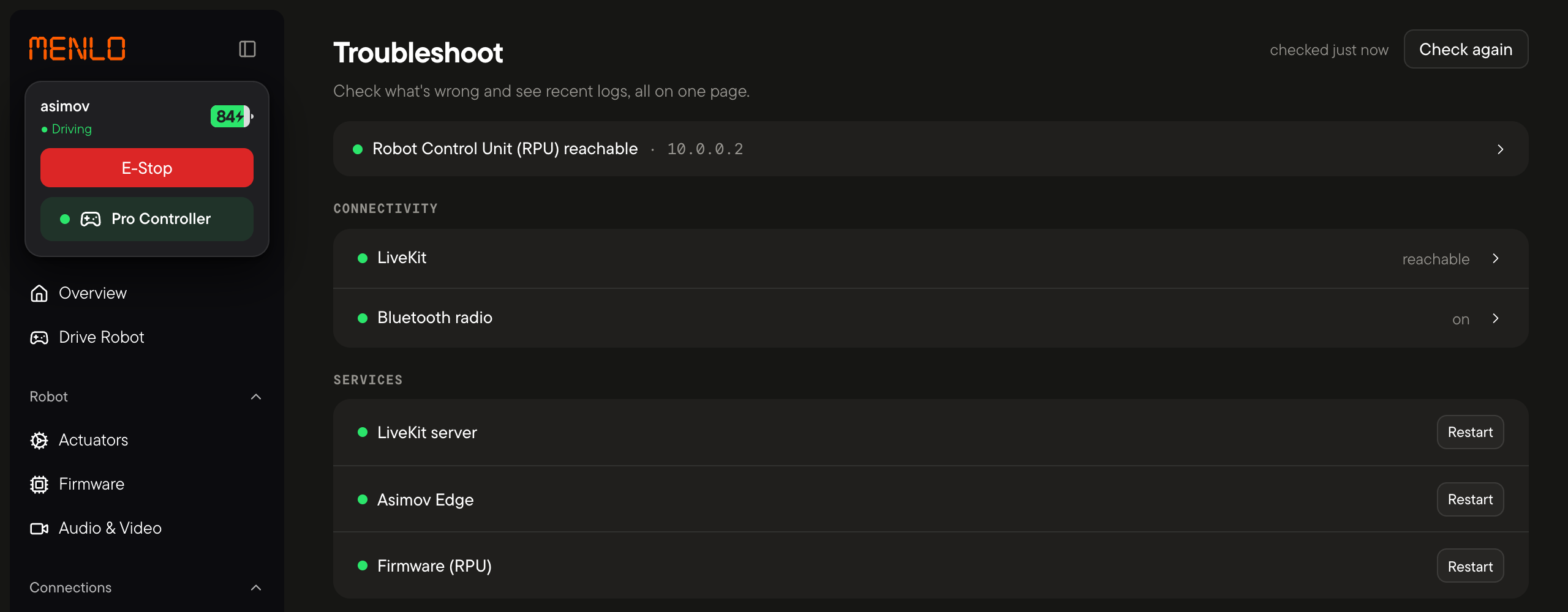

Start from the symptom. Most fixes involve the Troubleshoot page, which shows the robot's health checks — the RPU link, the video service and the Bluetooth radio — with a Restart button for each service. Check again runs every check again.
Restart doesn't ask first
Restart on the Firmware (RPU) row restarts the firmware immediately, which takes the actuators offline. Support the robot before using it.
The Console Will Not Load
| Symptom | What to do |
|---|---|
http://<name>.local doesn't answer | Allow two minutes from power-on — longer if the robot falls back to its hotspot — and check that your device is on the same network as the robot |
.local doesn't resolve | Common on Android. On the setup hotspot, use http://10.42.0.1. On your own network, use the address your router assigned the robot |
| It loads on the hotspot but not on your Wi-Fi | Some routers, especially guest networks, stop devices from reaching each other. Use your main network |
| The robot never joins a 5 GHz network | Try a 2.4 GHz network, or a 5 GHz channel from 36 to 48 |
| The setup hotspot never appears | It starts only when the robot has nothing to join: at power-on, after a failed join, or after you forget its last network |
| The robot dropped off your Wi-Fi | The hotspot doesn't return on its own once the robot has booted. Power-cycle the robot so it rejoins or starts the hotspot |
The RPU Is Unreachable
Nothing that moves the robot works until this link is healthy. The Firmware page splits it into two checks:
| Failing check | Meaning | What to do |
|---|---|---|
| Network | The RPU isn't answering on the wire | Check the Ethernet cable between the two boards, and power to both |
| Control | The RPU answers, but the console can't manage it | The RPU is still booting or its services are down. Wait a minute and reload the page; if it persists, power-cycle the robot |
While the RPU is unreachable, the setup checklist greys out the rows that depend on it ("Waiting on the RPU"), and the Actuators and Firmware pages lock their tools. That is expected, not a second fault.
The Firmware Will Not Start
| Symptom | What to do |
|---|---|
| Start Robot or Start Firmware is greyed out | Read its tooltip, which names what's missing |
| Assembly was never confirmed | Confirm it on the Firmware page — see First Start |
| Waiting for actuator check… | An actuator check is using the CAN buses for about 15 seconds. Wait, then try again |
| The RPU is unreachable | Fix the link first — see above |
The Actuators Page Is Locked
Its tools work only with the firmware stopped and the RPU reachable. The lock pill names the cause — for example Stop the firmware to change actuators. Follow its Open Firmware › link, fix the cause, then select Retry.
The Robot Will Not Move
See If You Cannot Drive. The usual causes: no session, the robot isn't in Walk, Asimov Edge isn't running, or a gamepad has control.
The Robot Stopped or Fell on Its Own
The firmware damps the robot when it detects a fault. Look for fault N on the Cockpit's status line and for Error flags in its Telemetry tab, then check the Firmware log for that moment. An overheating actuator and a lost command stream look the same from outside, and completely different in the log.
To get going again, follow Recovering After an E-Stop or a Fall.
The Robot Drifts, Stumbles or Leans
Suspect a zero point, especially after a repair — see Recalibration After Repairs. Rule out wiring and actuator faults first.
You Forgot the Password
See Forgotten Password.
Reading the Logs
The Logs viewer on the Troubleshoot page shows five sources — Edge, LiveKit, RPi kernel, Firmware and RPU kernel — newest first, updating live. Scroll down for older entries.
Asimov Manager keeps the newest 4,000 entries per source. Older history survives a restart only if persistent logging is enabled on that computer. There is no export, so when you report a problem, copy the relevant lines or take a screenshot while they are still there.
The Cockpit's Logs tab shows the Edge and Firmware logs without leaving the Cockpit, and Overview's Logs panel shows the newest lines across services.
