AssemblePelvis ModuleSub-assembly B

Step 5: Install the Right Hip Roll Actuator

Mount and connect the right hip roll actuator, then secure its outer support components.

Parts needed

PartCount
Subassembly A1
1
1
1
M4x12 Socket Bolt6
M4x6 Socket bolt6
M4x14 Socket bolt3
M4x8 Socket bolt3
EC-A5013-H17-100 (ID 8)1
Single-ended XT30 (2+2) - 180mm1
ThreadlockerAs needed

Instructions

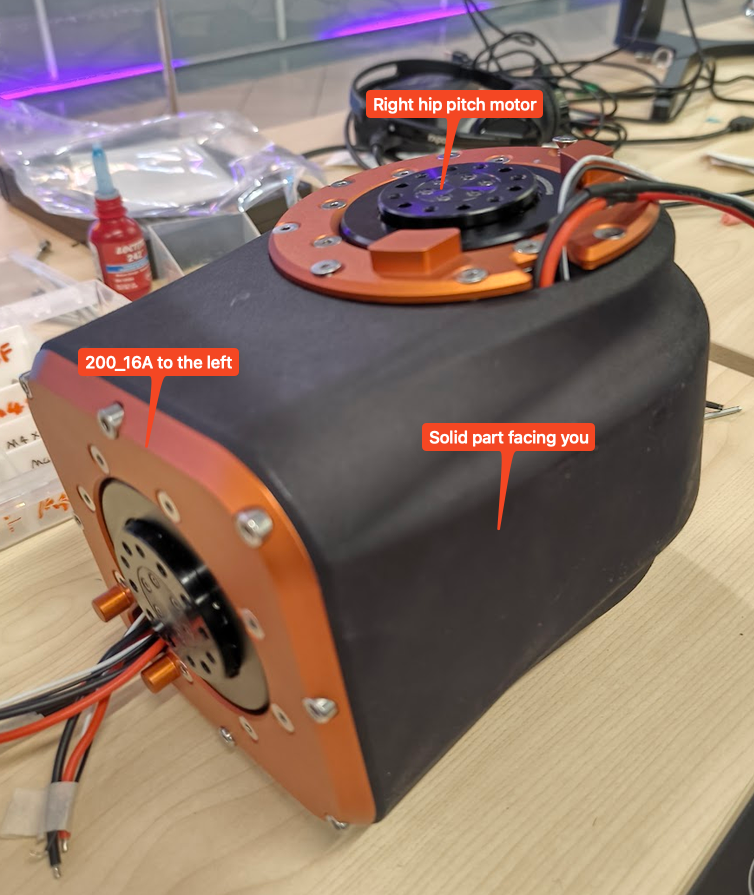

Put Sub Assembly A on a flat surface, oriented it such that the right hip pitch actuator is facing upward toward the ceiling. Part face toward your left, and the solid part face toward you.

Step 5: Install the Right Hip Roll Actuator - Instruction 1

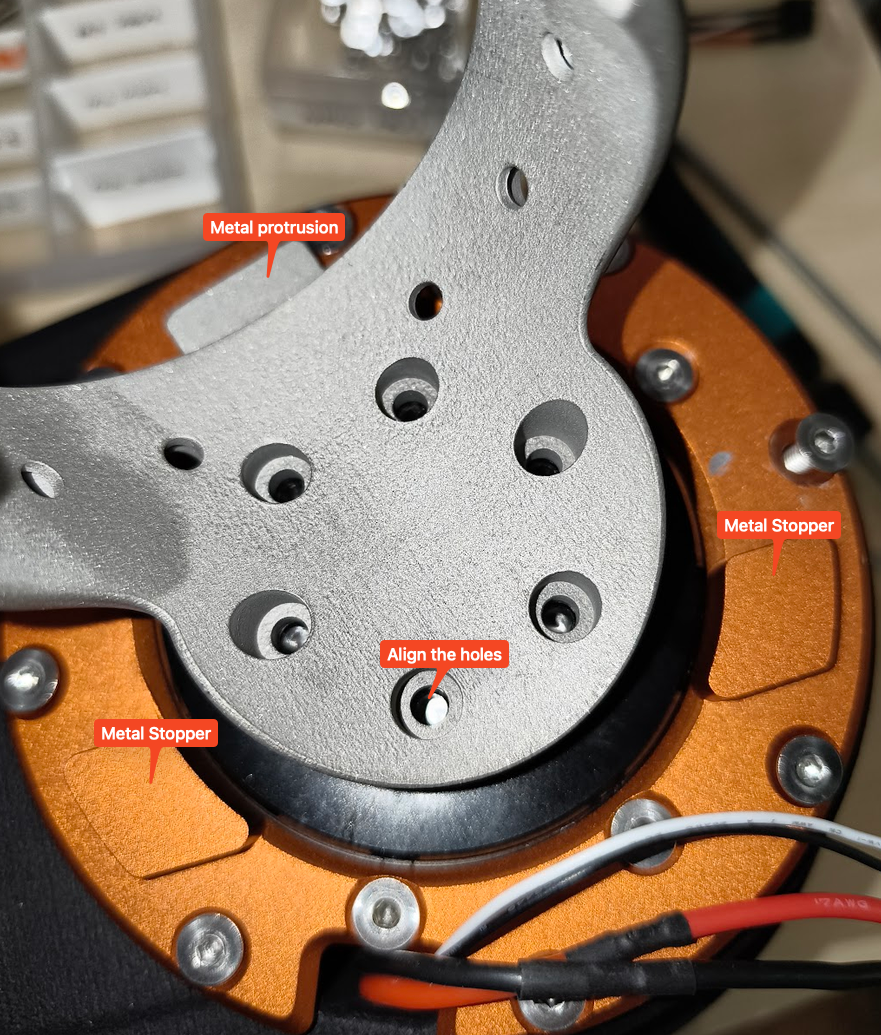

Take part and align it 6 holes to the 6 holes on the actuator shaft. Oriented it such that the protruding metal stopper part stays in between the larger gap of the 2 metal stoppers on part .

Step 5: Install the Right Hip Roll Actuator - Instruction 2

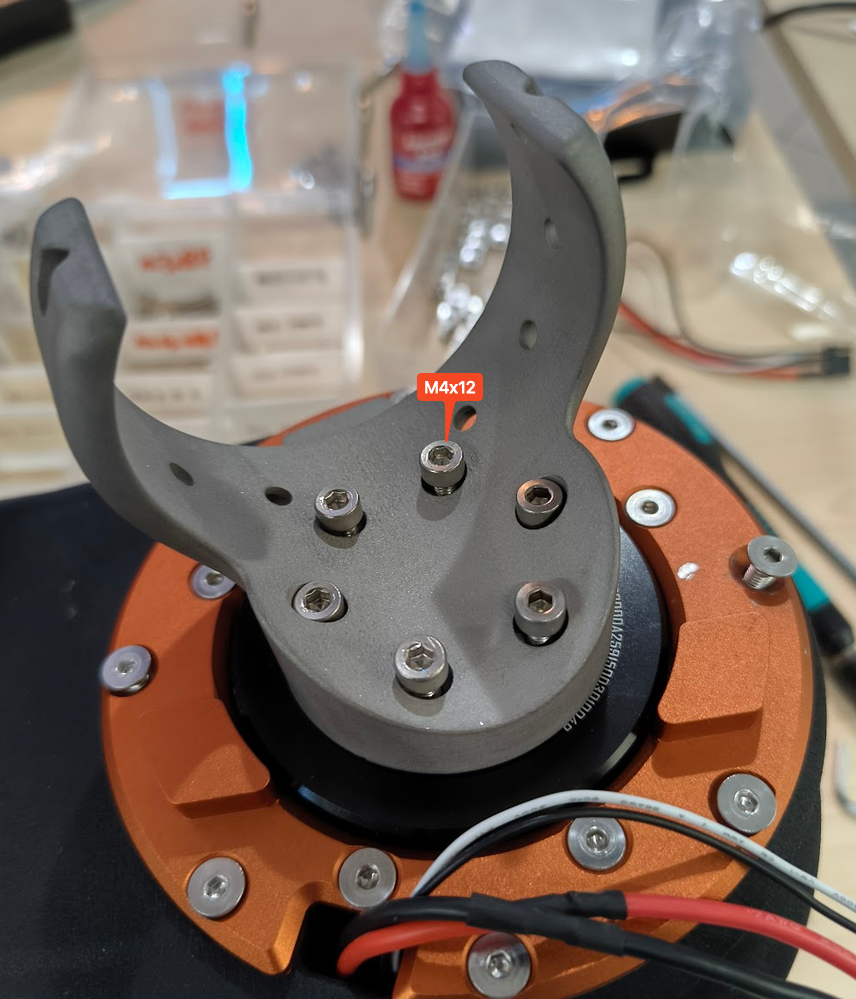

Take 6 – M4x12 Socket bolt, lightly tighten into the 6 holes of part to align the part with the actuator.

Step 5: Install the Right Hip Roll Actuator - Instruction 3

After the parts are aligned:

  • remove each of the 6 – M4x12 socket bolts in a star formation,
  • apply threadlocker,
  • then tighten them back to secure Part and the actuator together.

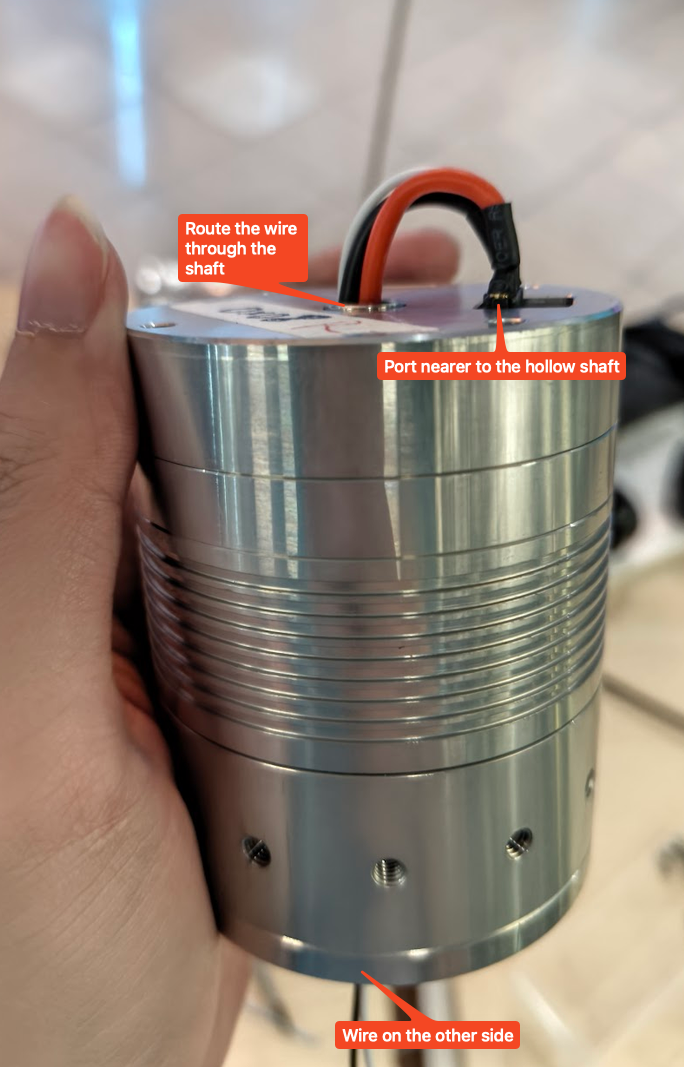

Connect the XT30 connector of the 180 mm single-ended cable to the actuator port nearest the hollow shaft on actuator ID 8, then route the cable through the shaft.

Step 5: Install the Right Hip Roll Actuator - Instruction 5

Slide the actuator through part such that the holes on circumference of the actuator are aligned with the holes on the arch of part . The actuator shaft should be facing forward in the same direction as where Part is.

Step 5: Install the Right Hip Roll Actuator - Instruction 6

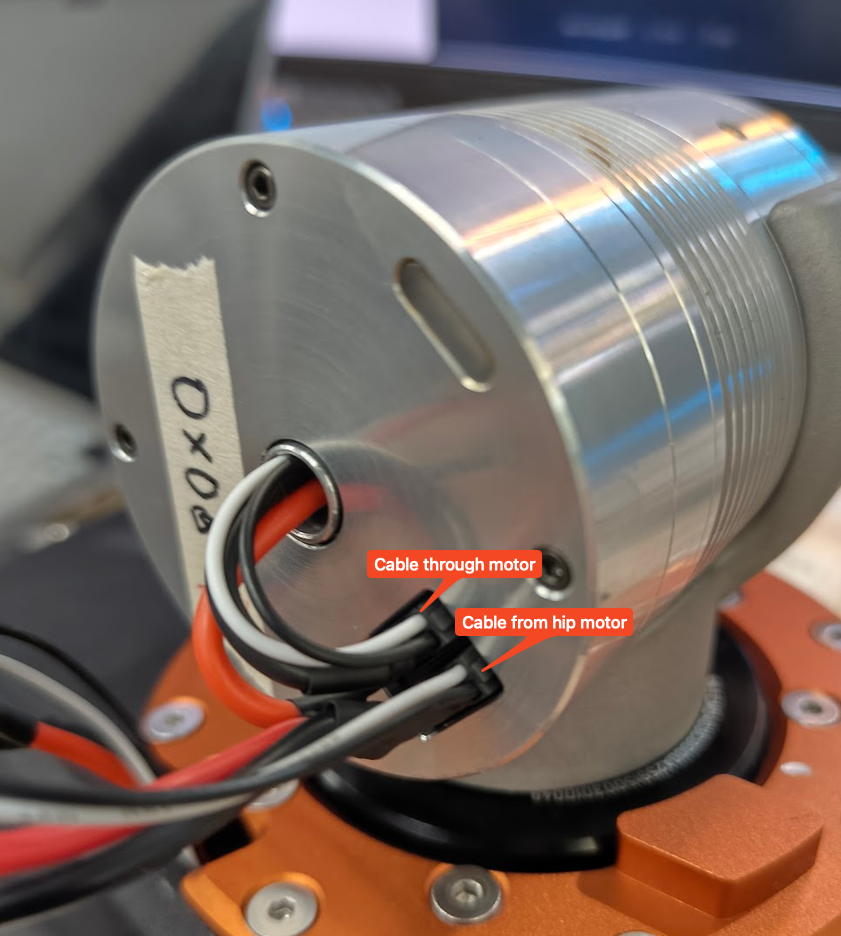

Connect the free connector of the right hip pitch actuator cable to the specified port on right hip roll actuator ID 8.

Step 5: Install the Right Hip Roll Actuator - Instruction 7

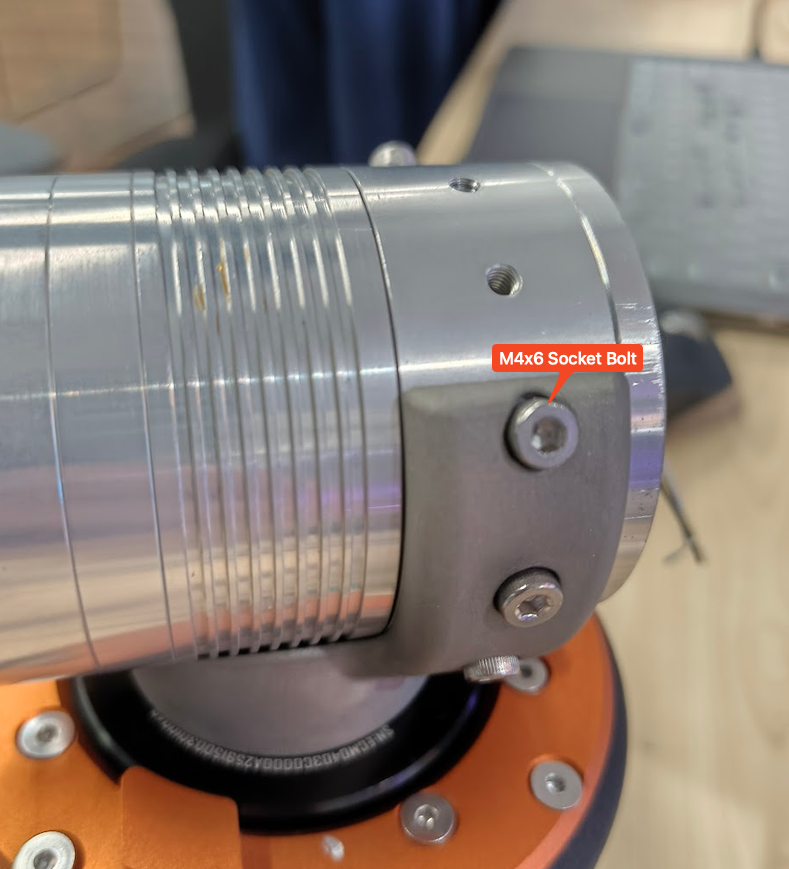

Take 6 – M4x6 Socket bolts and lightly tighten into the 6 holes of part to align the part with the actuator.

Step 5: Install the Right Hip Roll Actuator - Instruction 8

After the parts are aligned:

  • remove each of the 6 – M4x6 socket bolts in a star formation,
  • apply threadlocker,
  • then tighten them back to secure Part and the actuator together.

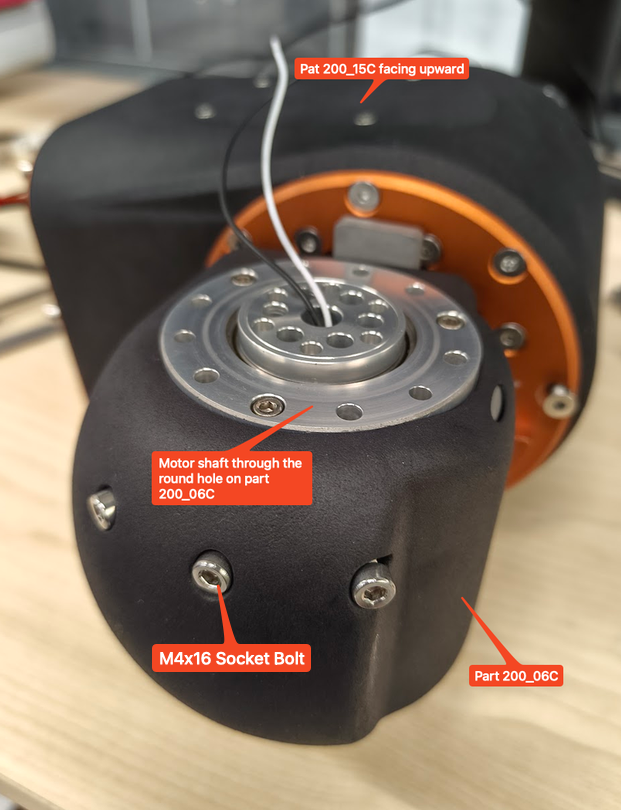

Lay the Sub Assembly A flat on a surface such that the Part is facing upward toward the ceiling. Take part and slot actuator EC-A5013-H17-100 (ID 8) into it such that the actuator shaft goes through the round hole on part .

Step 5: Install the Right Hip Roll Actuator - Instruction 10

Take 3 – M4x14 Socket bolt and tighten into the 3 holes on top of part to secure the part to the actuator.

Step 5: Install the Right Hip Roll Actuator - Instruction 11

After the parts are aligned:

  • remove each of the 3 – M4x14 socket bolts,
  • apply threadlocker,
  • then tighten them back to secure Part and the actuator together.

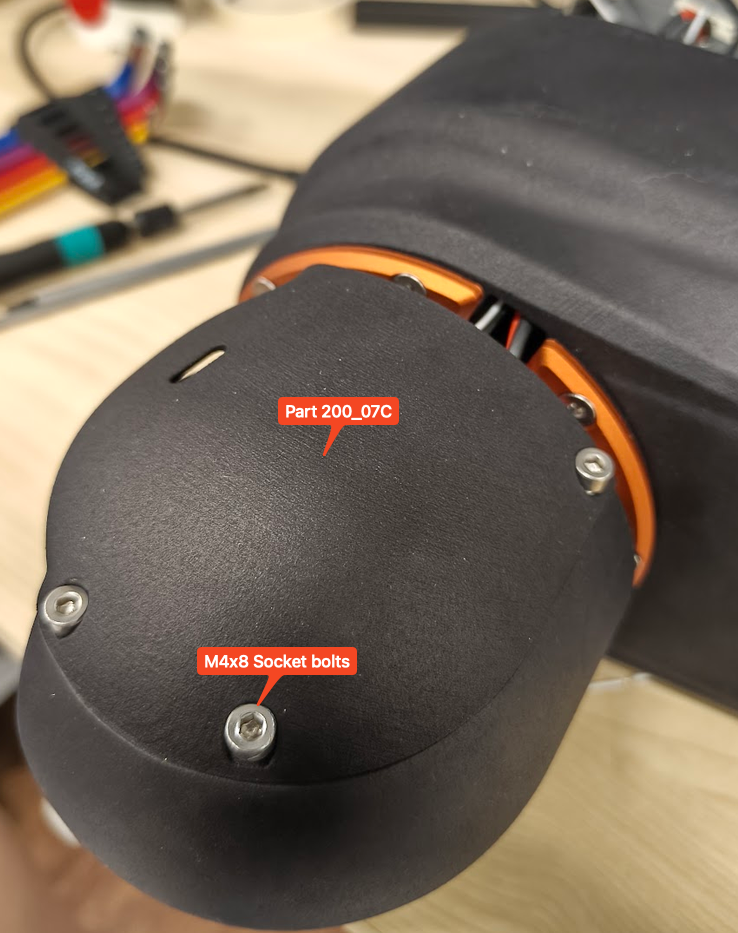

Flip the Sub Assembly upside down such that part is now facing downward. Take part and align it with part such that the three holes on part aligned with threaded insert on part .

Step 5: Install the Right Hip Roll Actuator - Instruction 13

Take 3 – M4x8 socket bolt and tighten into the 3 holes on part to secure the part to part .

Step 5: Install the Right Hip Roll Actuator - Instruction 14

After the parts are aligned:

  • remove each of the 3 – M4x8 socket bolts,
  • apply threadlocker,
  • then tighten them back to secure Part and part .
