Quickstart

Install

Python 3.12 or newer.

pip install menlo-sdk

or, in a project managed by uv, uv add menlo-sdk. One package drives every connection mode; there are no extras.

Get the Examples

The scripts on this page are in the examples directory of the menlo-sdk repository on GitHub. Clone it and run them from there:

git clone https://github.com/menloresearch/menlo-sdk
cd menlo-sdk/examples

Each code block below shows the main part of a script. The full script also imports the SDK, sets its constants and connects with with Robot().connect() as robot:, which waits for the robot's first state.

Get an SDK Credential

The hybrid and livekit connection modes join the robot's LiveKit room with an SDK credential from Asimov Manager; livekit also carries commands through it. Skip this step for udp, which needs no credential.

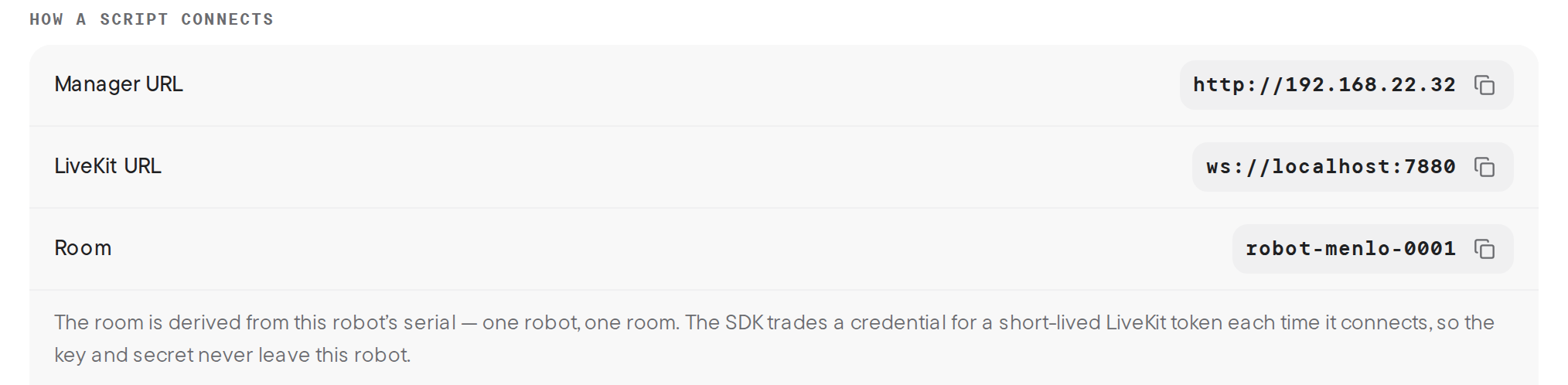

1. In Asimov Manager, open Developer in the sidebar. Under How a script connects, note the Manager URL: it is the address the SDK uses to reach the robot.



   You do not need the LiveKit URL or the Room. The SDK asks the robot for both each time it connects, and when the LiveKit URL reads localhost, the SDK uses the robot's address instead.

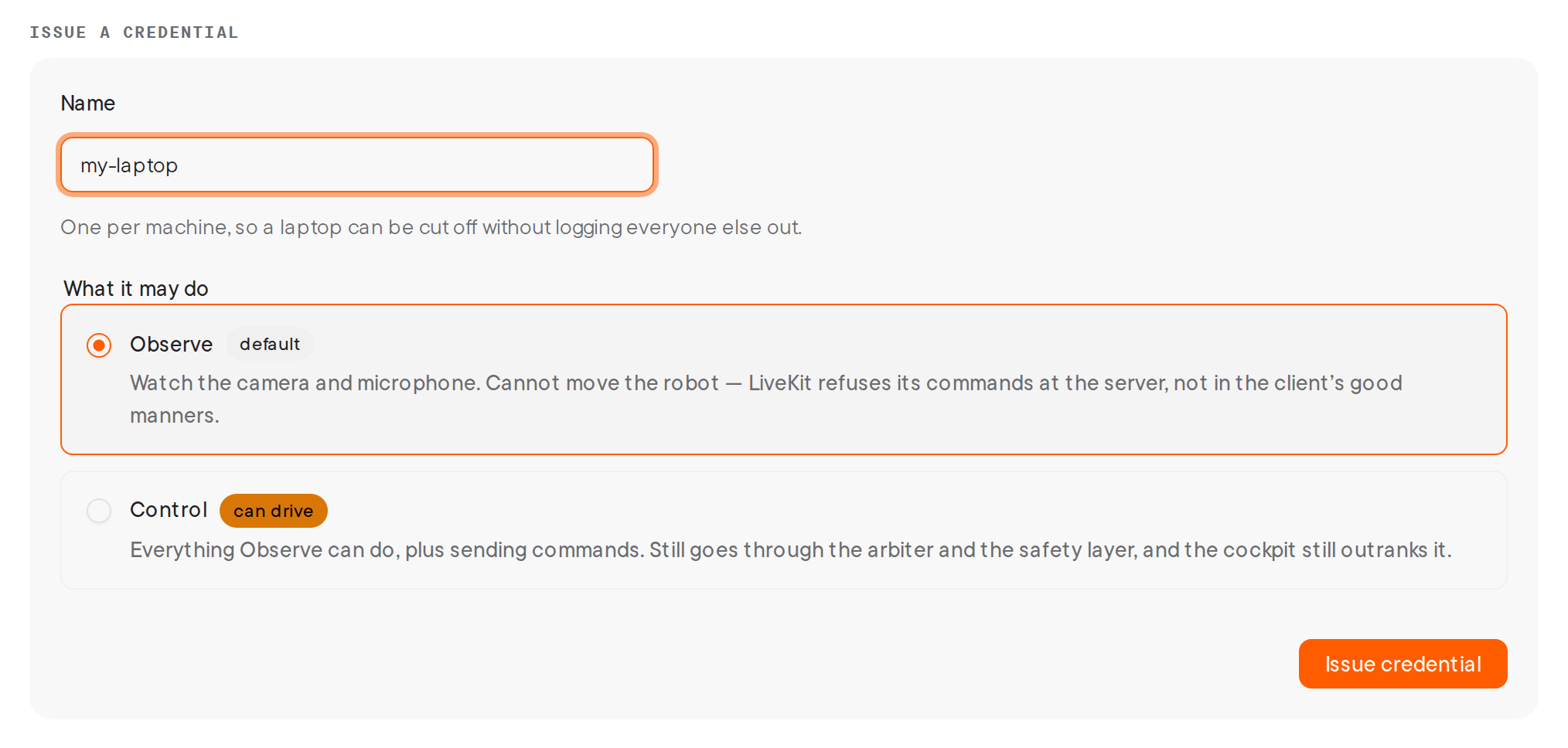

2. Under Issue a credential, enter a Name for the computer that will use it, such as my-laptop. Issue one per computer, so you can revoke one without cutting off the others.

3. Under What it may do, choose Control to drive the robot from your computer. Observe watches the camera and listens to the microphone only; the robot drops its commands.

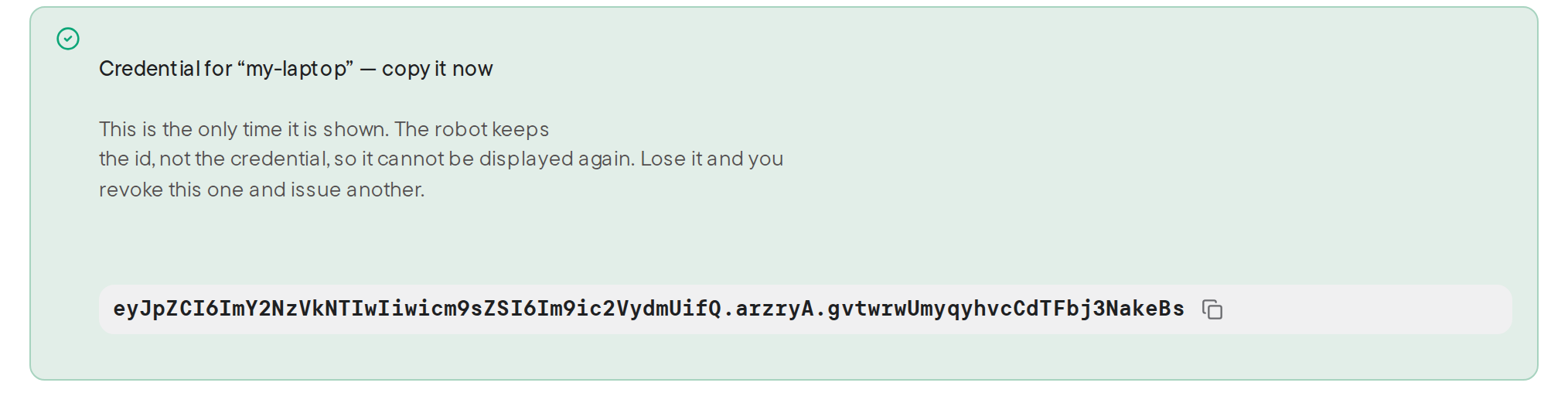

4. Select Issue credential, then copy the credential with the copy button next to it. It is shown only this once: the robot keeps the credential's ID, not the credential, so it cannot show it again. If you lose it, revoke it and issue another.

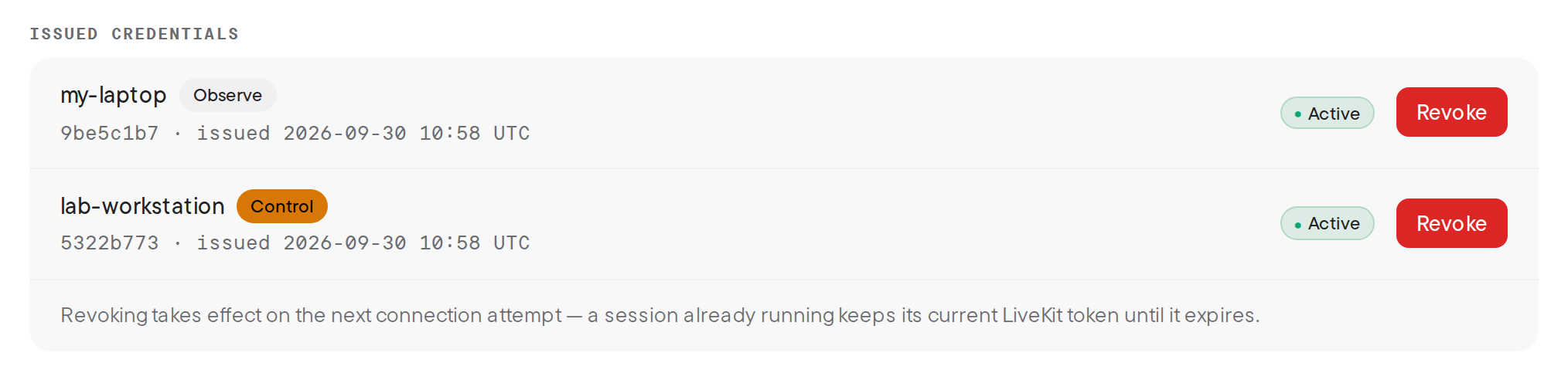

5. The credential appears under Issued credentials with its role and ID. To take it back, select Revoke next to it; the computer holding it can no longer connect, and a session that is already running keeps working until its LiveKit token expires, at most 12 hours.



Save the Robot

menlo setup

The wizard asks for a name, a connection mode, and what the mode needs: the robot's address for udp, the Manager URL and the credential for livekit, both for hybrid. It checks each field against the robot before it saves, and every script below then finds the robot with Robot() and no arguments.

udp and hybrid carry commands and state on the robot's network, and the robot sends UDP state to one computer. In Asimov Manager, open Advanced Settings and, under Asimov Edge, set udp-control to on and udp-state-host to your computer's address, then select Save & Restart Asimov Edge. Without a saved robot, export MENLO_UDP_HOST=<robot address> points the SDK at the robot for one shell. To build the connection in code, see Connection Modes.

Check

check.py connects, prints what the robot reports (robot mode, armed, faults, alerts, the hottest joint, battery and the state's age) and preflight() for a stand, a walk and a trajectory, and sends nothing. Run it before anything that moves the robot:

# The SDK counts the 0.5 s a robot in STAND must be upright to arm from its own samples.
time.sleep(0.6)
s = robot.get_state()  # one sample: every fact below comes from it
print(f"robot mode {s.mode.name}, armed {robot.armed}, faulted {s.faulted}")
print(f"alerts {', '.join(a.name for a in s.alerts) or 'none'}")
temps = [j.temp for j in s.joints if j.temp is not None]
print(f"hottest joint {max(temps):.0f} C" if temps else "joint temperatures not reported")
print(f"battery {s.battery.soc_percent:.0f} %" if s.battery else "battery not reported")
print(f"state {s.age_s:.2f} s old")
for action in ("stand", "move", "trajectory"):
    print(robot.preflight(action))  # "ready to move" means live state, and the facts

python check.py

The SDK does not refuse a command because of what the robot reports: a fault, an alert, a hot actuator or a low battery is yours to judge, and the firmware decides what a command does. The one refusal is no live state. The scripts below carry guard(robot) from guard.py commented out: an example guard of your own that stops the script when the robot is faulted, has a warning or critical alert, has an actuator at 80 °C or more, or has a battery below 20 %. Uncomment its two lines in a script to turn it on, and edit its limits; see Write Your Own Guard.

Stand

With the robot in DAMP, hanging from its gantry hook with both feet on the floor:

# guard(robot)  # optional: uncomment this and the import to stop on your rule
try:
    # Returns once the robot reports STAND and has been upright for 0.5 s (armed): the
    # firmware enters MOVE only after that.
    robot.stand()
except (NotReadyError, WaitTimeoutError) as exc:  # no live state, a fault, or not armed
    print(exc)  # what the robot reports and what to do
    sys.exit(1)
print(f"robot mode {robot.get_state().mode.name}, armed {robot.armed}")

python stand.py

The actuators hold a standing pose and stand() returns once the robot is armed: STAND held upright for 0.5 s. It sends nothing else. Without live state, stand() raises NotReadyError with nothing sent, and the script prints why; when the robot does not arm within 10 s, it raises WaitTimeoutError. stand() is sent from any robot mode, but STAND has no balance loop: after a walk, hang the robot from its gantry hook or seat it on a stool or bench before you call it.

Balance

With the robot armed and still on its gantry hook:

# guard(robot)  # optional: uncomment this and the import to stop on your rule
try:
    robot.balance()  # returns once the robot reports MOVE
except (NotReadyError, WaitTimeoutError) as exc:  # no live state, a fault, or not MOVE
    print(exc)  # what the robot reports and what to do
    sys.exit(1)
print(f"robot mode {robot.get_state().mode.name}, balancing in place")

python balance.py

balance() sends zero velocity, which puts an armed robot in MOVE: the walking policy balances it in place, and this is the only robot mode in which it stands free. It returns once the robot reports MOVE, or raises WaitTimeoutError after 5 s. Once it has returned, slacken the gantry gradually until the robot carries its own weight.

Walk

With the robot balancing in MOVE:

# guard(robot)  # optional: uncomment this and the import to stop on your rule
mode = robot.get_state().mode
if mode is not Mode.MOVE:  # this script's own rule: walk from MOVE only
    print(f"robot mode {mode.name}: walk.py walks in MOVE only; run balance.py first")
    sys.exit(1)
try:
    # Held and re-sent at 10 Hz for DURATION_S, then zero velocity; returns after that.
    sent = robot.set_velocity(vx=VX, vy=VY, vyaw=VYAW, duration=DURATION_S)
except NotReadyError as exc:  # no live state (nothing sent), or a fault ended the walk
    print(exc)
    sys.exit(1)
if sent.clamped:
    print("the SDK reduced the speed to the robot's limits:", sent.command)
print(f"robot mode {robot.get_state().mode.name}, balancing in place")

python walk.py

What each line does:

After the walk the robot stays in MOVE, balancing in place. The velocity and duration are constants at the top of the file. Leaving the with block closes the connection; a held velocity gets a zero first. The script never changes the robot mode: on a robot in STAND it prints robot mode STAND: walk.py walks in MOVE only; run balance.py first and exits. That rule is the script's, not the SDK's: set_velocity() is sent in any robot mode.

Put the Robot Down

damp() makes every actuator compliant. A standing robot folds, so support it first: take up the gantry's slack, or seat the robot on a stool or bench. rest.py goes from MOVE to STAND to DAMP instead, and asks first; see Bringing the Robot to Rest.

# damp() is never refused, so there is no check here, only the question.
if not YES:
    mode = robot.get_state().mode.name
    question = f"Robot mode {mode}. Is the robot supported? Damp now? [y/N] "
    if input(question).strip().lower() not in ("y", "yes"):
        print("nothing sent")
        sys.exit(0)
try:
    robot.damp()  # returns once the robot reports DAMP
except WaitTimeoutError as exc:  # sent, but DAMP was not reported: the message says what next
    print(exc)
    sys.exit(1)
print(f"robot mode {robot.get_state().mode.name}")

python damp.py

The script asks for confirmation unless YES is set to True at the top of the file. damp() is not an emergency stop; for that, use the E-Stop in Asimov Manager, or cut power at the battery unit (Stopping the Robot).
